Wireline Diamond Core Drill Rig Machine for Sale

Name: Wireline Diamond Core Drill Rig Machine for Sale
Brand: tool-buy.com
SKU: 712824832
Availability: InStock
Rating: 4.7 (108 reviews)

Price:	US $ 20000-30000/Set
Min Order:	1/Set
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Zhengzhou Defy Mechanical & Electrical Equipment Co., Ltd.

Showroom Product Company Profile

Prod Model:	DF-Y-2T
Certification:	SGS, BV
Stratum:	Soil, Gravel, Weathered Stone, Concrete
Spindle Stroke:	560mm
Diameter Of Spindle:	93mm
Power:	Diesel Engine 31 Kw/1500rpm
Area Of The Base:	3600*2100mm
Usage:	Farm Irrigation, Pile Foundation
Power Type:	Diesel
Type:	Rotary Drilling Rig
Condition:	New

Product Description

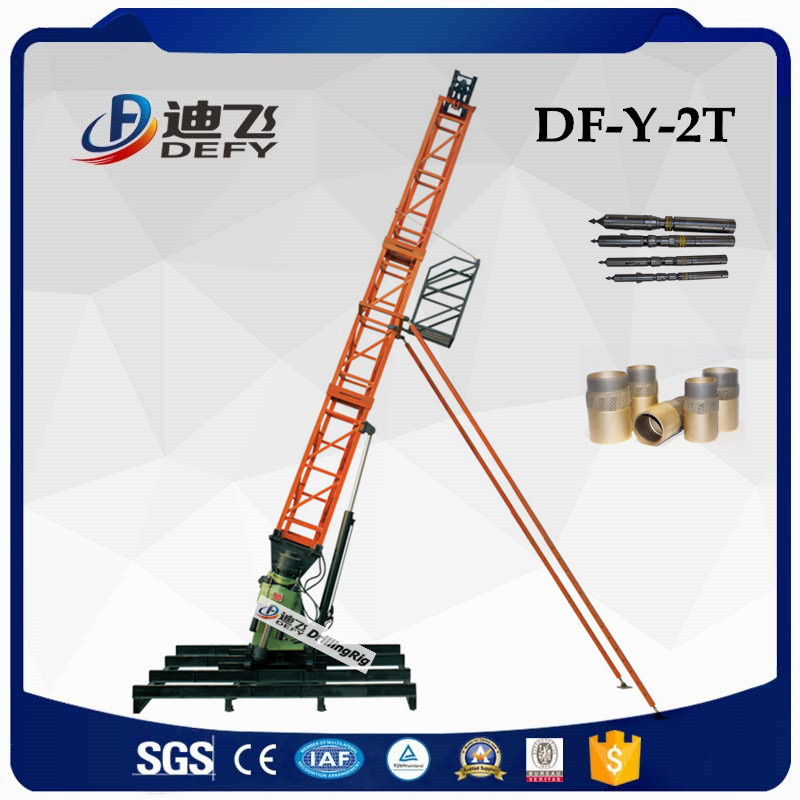

Wireline diamond Core Drill Rig machine for sale

Diamond Core Drill Rig introduction

DF-Y-2T Core Drill is an integrated rig with tower into one unit,. It is a new type spindle core drill rig.

It is applied for engineering geological exploration drilling, hydro geology well drilling and big-hole basic engineering drilling including core drilling with tungsten-carbide tipped and diamond bit mainly.

Product Features

1. Light in weight, easy relocation.

2. Adopting traversal winch, this will overcome the fault of wire arbitrary intertwine and quick wearing out of the winch laid in length ways.

3. Belt transmission is adopted for the high speed level to make the drill soft in the uneven formation, and reduce the damage to the components and other mechanical failure.

4. In large spindle hole.

5. With wide speed range and large torque moment in lower speed, it is suitable for engineering geological subterranean and water explorations.

6. The rig is stable in relocation and firmly for position.

7. Debuts F3L 912 diesel engine or 22Kw electric motor for your selection.

Specifications

Drilling depth		100~600m
Rotation angle of spindle		0~360°
Spindle Speed	Positive	92;152;230;330;293;485;734;1056 rpm
	Negative	81;258 rpm
Max. Rotary torque of spindle		2.1 KN·m
Spindle stroke		560mm
Diameter of Spindle		93 mm
Power		ZH4100G43 Diesel engine 31 KW/1500rpm
		Y180L-4 Electric motor 22 KW/1470rpm
Max. Lifting capacity of spindle		60KN
Max. Pressuring force of spindle		45KN
Content of Winding Drum		45m
Steel wire rope diameter		14mm
Max. Hoisting force		30KN
Specification of the Mast
Drill mast Height		8000mm
Area of the base		3600*2100mm
Number of Pulley		2 pcs
Max. Load of Mast		75KN
Load of Movable Work Platform		70 kg
Adjustable Angles of Mast		45°~90°

Accessories of coring drilling rig:

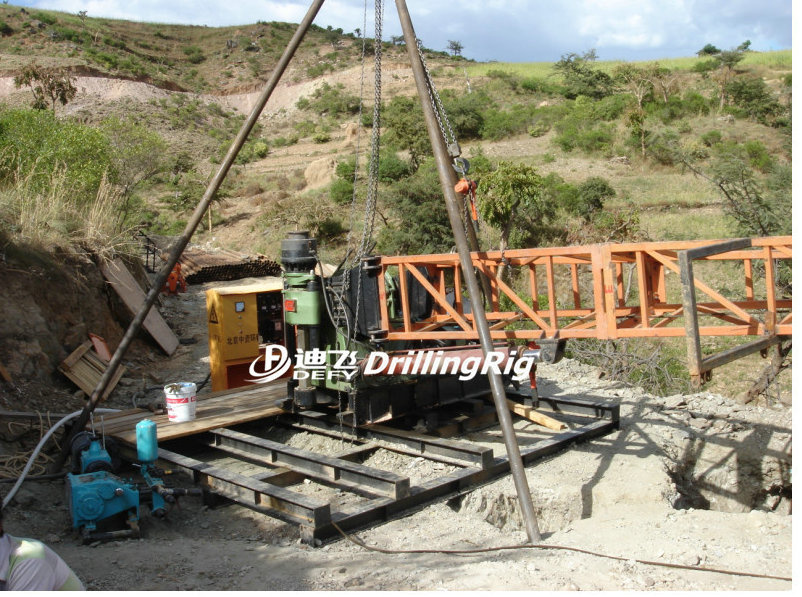

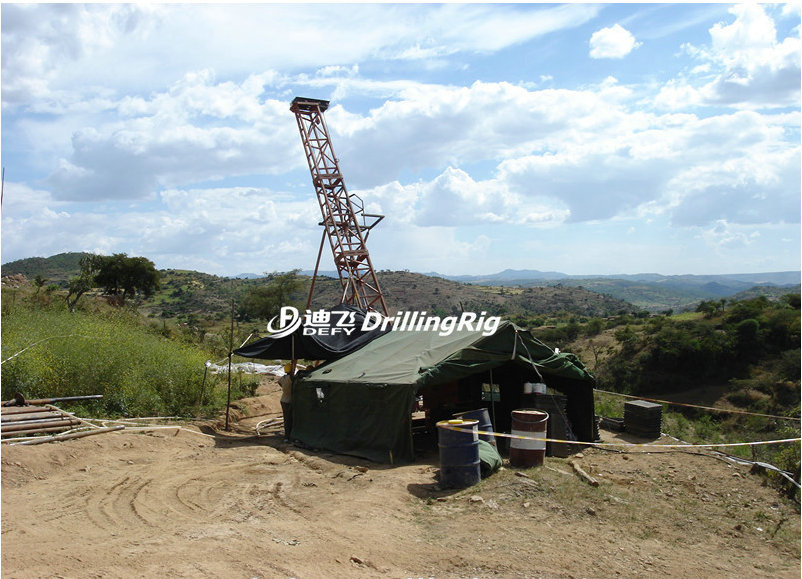

Customer feedback of coring drilling rig:

DEFY Service
1.Professional technical support pre-sale, sale and after-sale .
2.Your problems can get feedback in 8 hours and be solved in 24 hours.
3.Machine can be customized as per your requirement.
4.One year quality warranty.
5.Training: operation manual and DVD operation video, overseas installation is also available.
6.Spare parts are available in our factory at cost price for former customers.
