Wireline Drill Tools / Df-H-2 Diesel Power Drill for Diamond Core Drill Machine

Wireline Drill Tools / Df-H-2 Diesel Power Drill for Diamond Core Drill Machine
Price: US $ 80000-100000/Set
Min Order: 1/Set
Pay Type: L/C,T/T,Western Union
Prod Model: DF-H-2
Voltage: Customized
Power(W): 74kw
Warranty: One Year Warranty Excluding Wearing Parts
After-Sales Service Provided: Engineers Available to Service Machinery Overseas
Application: Water Well, Soil Sampling, Pile Foundation etc
Stratum: Gravel, Soil, Sand, Hard Rock etc
Power Type: Diesel Engine/Electric Motor
Max. Spindle Speed: 0-900(R/Min)
Mud Pump: Bw-100A

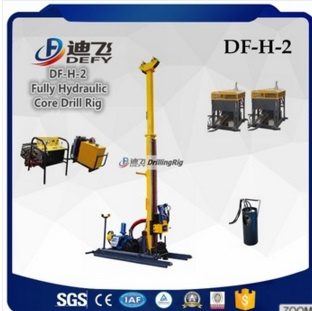

Name: Df-H-2 Fully Hydraulic Deep Diamond Drilling Rigs

Product Description

DF-H-2 fully hydraulic deep diamond drilling rigs from China top supplier



DF-H-2 deep diamond drilling rigs introduction:
1,   It is mainly suitable for diamond drilling with wire line coring technique.
2, The rig consists of diesel power unit, hydraulic system, control panel, mast, main winch, wireline winch, drill head, feed system, footclamp, etc.
3,  The rig is completely hydraulic driven for all its surface coring function.
4,  Fission style design makes the rig in good assemblability and disassemblability, facilitating transportation to most inaccessible areas.
5. Robust structure plus exact control system ensures high penetration rate and outstanding reliability.

Product Features
1. Full Hydraulic and Drill Head model. The drill head rotation is realized with four hydraulic pumps driven by five diesel engines(has been advanced with Two larger diesel engines); this also makes the feeding hydraulic cylinder system relize its full stroke feeding in both higher and lower speed.

2. In good disassemblability. The rig is adopted fission style in design, including power unit, hydraulic oil tank,manipulation platform and operation mechanism, i.e. the drilling section. So they are in light weight and can be carried by man power or animal power. The rig can be applied and performed in narrow space for drilling of hole at 45°-90° with stronger adaptability.

3. Strong techniques adaptability. Besides diamond drilling with wire line coring technique, it is in strong techniques adaptability. It is applicable for the drilling and feeding requirement of any other stratum.

Main specification
Basic parameter of deep diamond drilling rigs
BQ(Φ55.6mm equal to Φ2.19 inch )drill rod350 m(1148feet)
NQ (Φ69.9mm equal to Φ2.75 inch) drill rod230 m (754feet)
HQ (Φ88.9mm equal to Φ3.50 inch) drill rod120 m (394feet)
Mud PumpBW-100A
Drill head
Max. spindle speed0-900(r/min)
Max. spindle torque334-930 N·m (246-685 lbf·ft)

Product Details Show
