| Prod Model: |
BQ NQ HQ PQ TT T2 T6 HWG NWG HWF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Drilling, Engineering Material |
| Manufacturing Arts: |
Sinter |
| Kind: |
Diamond Drill |
| Saw Blade External Diameter: |
Bq Nq Hq Pq |
| Matrix: |
F1-F10 |
Product Description

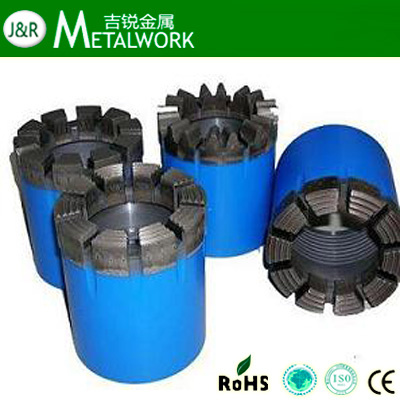

Impregnated Diamond Core Bits are manufactured with very small, high quality synthetic diamonds, mixed evenly through a metal alloy matrix. The matrix erodes away at the same rate as the diamonds become worn and rounded. Thus new sharp diamonds are exposed to continue cutting through the rock. In most geological formations, impregnated bits are more economical to use than other bits.
Material: Sintered diamond impregnated core dirll
Metrix hardness: F1-F10
Metrix height: 6mm, 8mm or more(Generally, 6mm height is recommended for conventional bits, 8mm or higher are recommended for wire line bits )
Crown profile: W profile, Flat profile, Cross profile, Semi-round profile, Multi-step profile
Waterway type: Standard type, wode type, turbo type, wide turbo type, round face discharge hole type, slot face discharge hole, Trapezoid type
Available size and type
A-Gauge Core Bits: AQ, AQ-RSG, AWG(AX), AWM, AWT, LTK48
B-Gauge Core Bits: BQ(WLB), BQ-RSG, BQ-2.400, BQ3(WLB3), BWG(BX), BWM, BWT, LTK60, TBW
N-Gauge Core Bits: NQ(WLN), NQ-3.032, NQ2, NQ2-RSG, NQ3(WLN3)/NQTT, NQ3-RSG, NQ3-3.032, NMLC, NWG(NX), NWM, NWT, TNW
H-Gauge Core Bits: HQ(WLH), HQ-RSG, HQ-3.830, HQ-3.895, HQ3(WLH3)/HQTT, HQ3-RSG, HQ3-3.380, HQ3-3.895, HMLC, HWF-Long, HWF-Short, HWG(HX), HWT
P- Gauge Core Bits: PQ(WLP), PQ3(WLP3), PWF-Long, PWF-Short
S- Gauge Core Bits: SWF-Long, SWF-Short
U- Gauge Core Bits: UWF-Long, UWF-Short
Z- Gauge Core Bits: ZWF-Long, ZWF-Short
T, TT, T2 &TB Series Metric Core Bits: T36, TT46, T2-46, TB56, TT56, T2-56, T2-66, T2-76, T2-76 coreline, T2-86, T2-86 coreline, T2-101, T2-101 coreline
T6 Series Metric Core Bits: T6-76, T6-86, T6-101, T6-116, T6-131, T6-146
T6S Series Metric Core Bits: T6S-76, T6S-86, T6S-101, T6S-116, T6S-131, T6S-146
B36, B46, B56, B66, B76, B86, B101, B116, B131, B146
