| Prod Model: |
WKQ - 1200 |
| Blade Diameter: |
Φ300-Φ450 |
| Max Processing Size: |
3200*2000*120mm |
| Dimension Of Worktable: |
3200*2000mm |
| Workable Tilting Degree: |
0-85° |
| Worktable Rotation Degree(Optional): |
0-90° / 0-360° |
| Main Motor: |
15kw |
| Gross Motor: |
21kw |
| Water Consumption: |
4m3/H |
| Outline Dimension: |
6000*4800*2900mm |
| Gross Weight: |
5250kg |
| Usage: |
Marble |
| Application: |
Stone Industry |
| Source Voltage: |
380V |
| Automation: |
Automatic |
| Type: |
Bridge Cutting Machine |
| Control: |
PLC |
Product Description

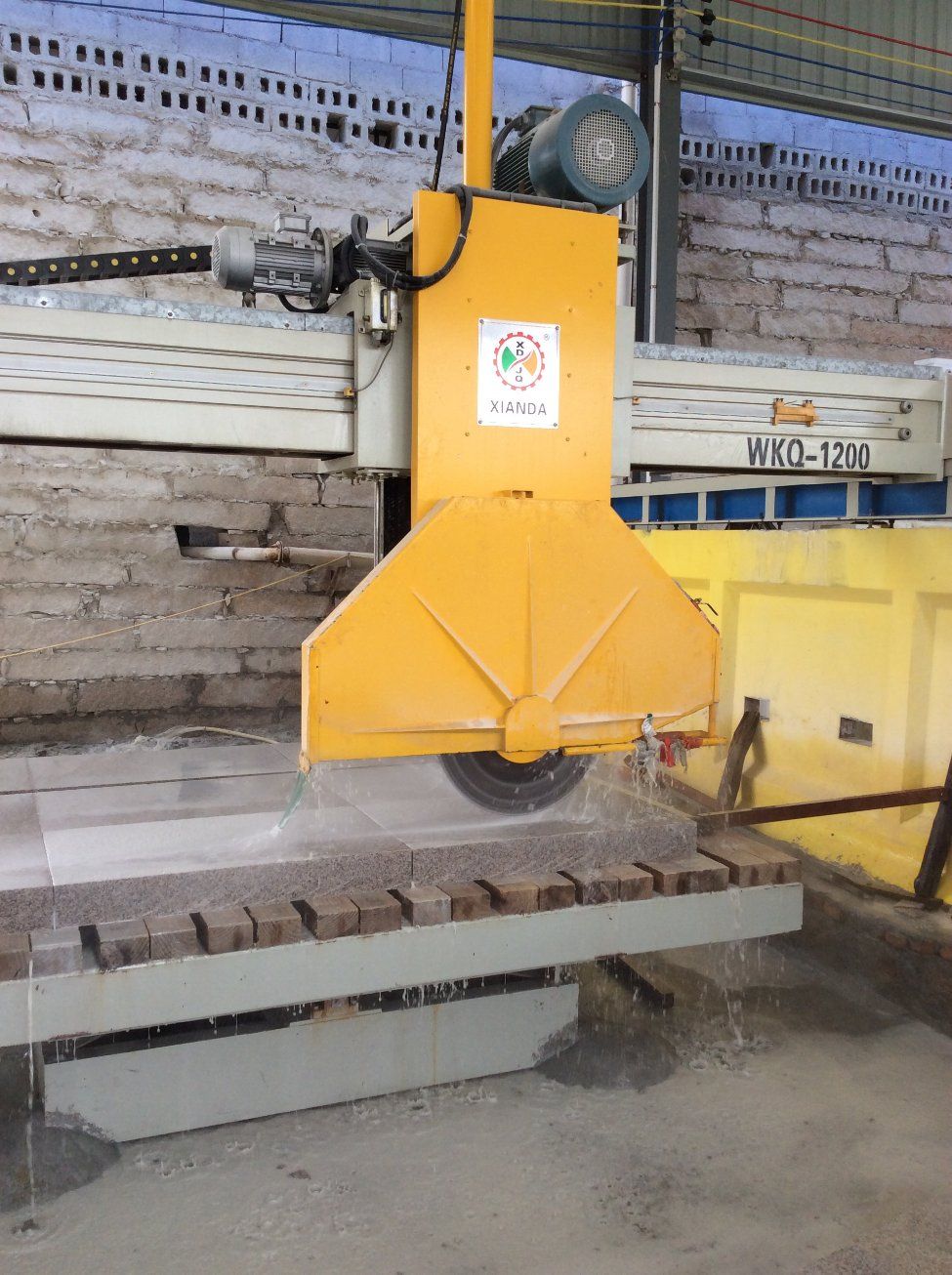

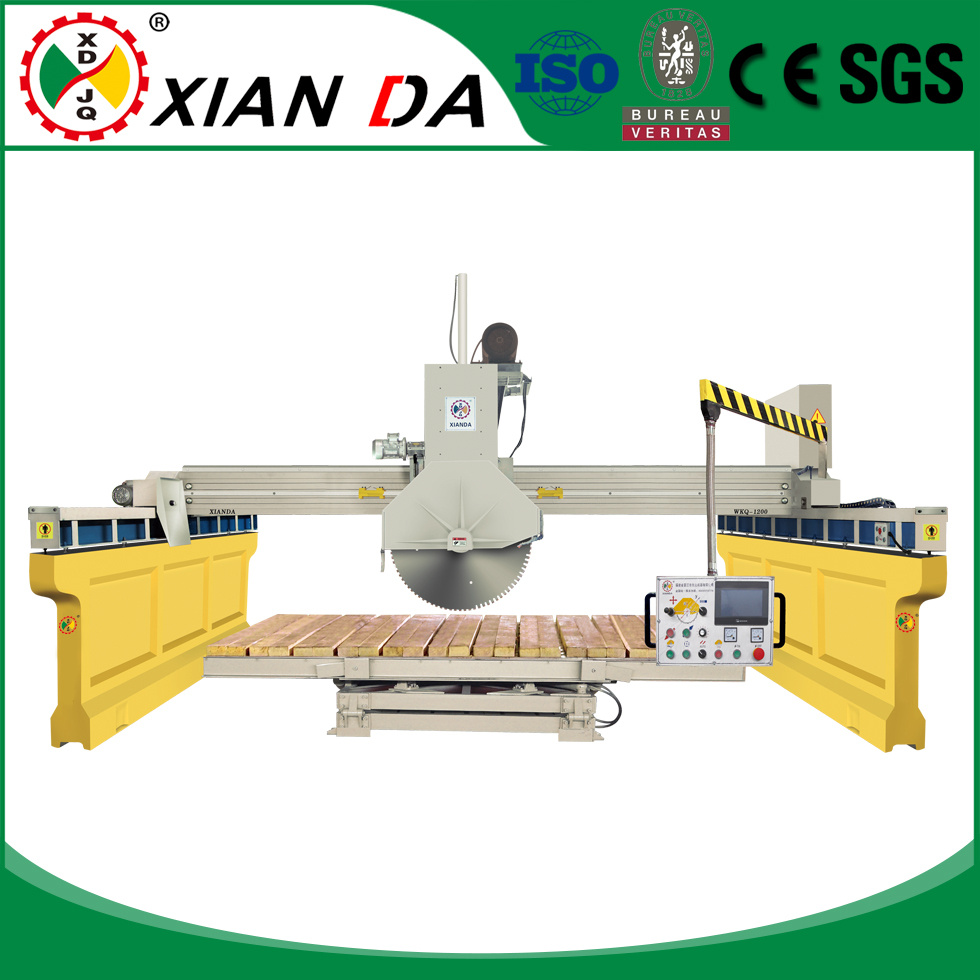

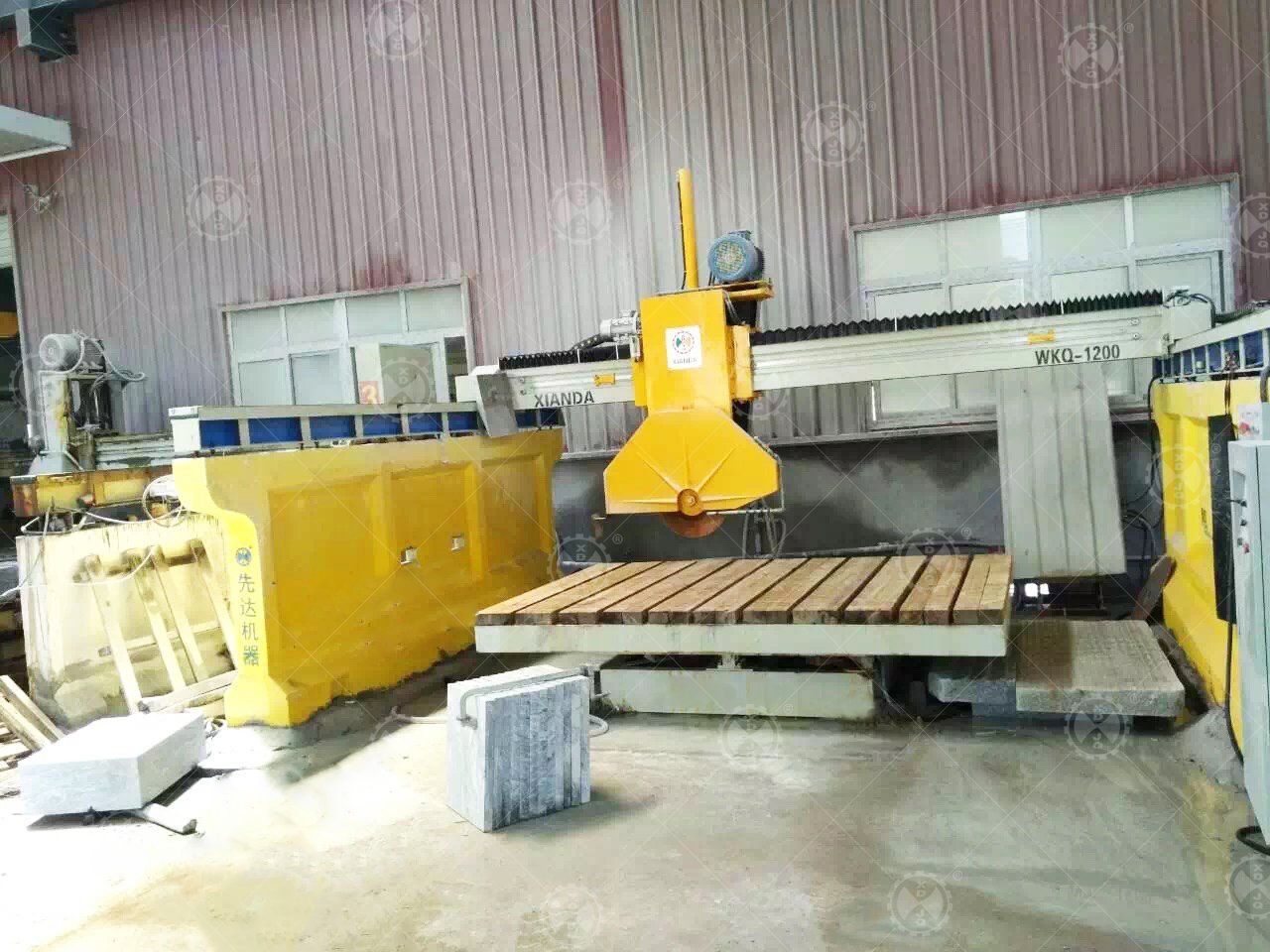

Bridge saw stone cutting machine for middle thickness block
Product DescriptionWKQ-1200 infrared automatic stone cutting machine adopting PLC system and Human-machine interface, togethering with ultra-high precision rotary encoder positioning and infrared device, with Chinese & English double operation language, using inverter to control leftright feeding,adjusting the speed according to stone material, using hydraulic lifting system which equipted through 4 guide post, also this machine provide the unique side beam protection device, main spare parts adopt imported well-quality materials.
The whole machine is featured with high cutting efficiency, high cutting precision, high stability, easy to operate, specially high value granite and big size marble.
Parameter | Unit | WKQ-1200 |
Blade diameter | mm | 1200 |
Max Lifting Distance | mm | 760 |
Dimension of worktable | mm | 3200*2000 |
Worktable tilting degree | ° | 0-85° |
Worktable rotation degree | ° | 0-90°/0-360° |
Main motor | kw | 22 |
Gross motor | kw | 28 |
Water consumption | m³/h | 4 |
Outline dimension | mm | 6400*4800*4400 |
Gross weight | kg | 6800 |
Xianda Machinery
Fujian Jinjiang Xianda Machinery Co.Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine,wire saw stone cutting machine,block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
With the rapid development of company ,we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep " Advanced Tecnology and High Quality" as our aim. We have developed a range of 'Xianda' Brand special stone shape processing machines.Exhibition
Our Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* After-sales service 24 hour on line.
If you have any problem,just conact our sales department,customer service department,etc at any time.
