Wood Cutting Machine CNC Sliding Table Saw with Ce

Wood Cutting Machine CNC Sliding Table Saw with Ce
Price: US $ 7400-8000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: CNC-32TA
Name: CNC Sliding Table Saw
The Size Of Sliding Table: 3200X400mm
Saw Blade Tilting: 0-45 Tilting
The Diameter Of Main Blade: 300-400 mm
The Diameter Of Scoring Blade: 120mm
The Power: 5.5 Kw +1.1 Kw
Type: Table Panel Saw
Layout: Horizontal
Controlling Mode: CNC
Automatic Grade: Automatic
Precision: High Precision
Certification: ISO

Product Description

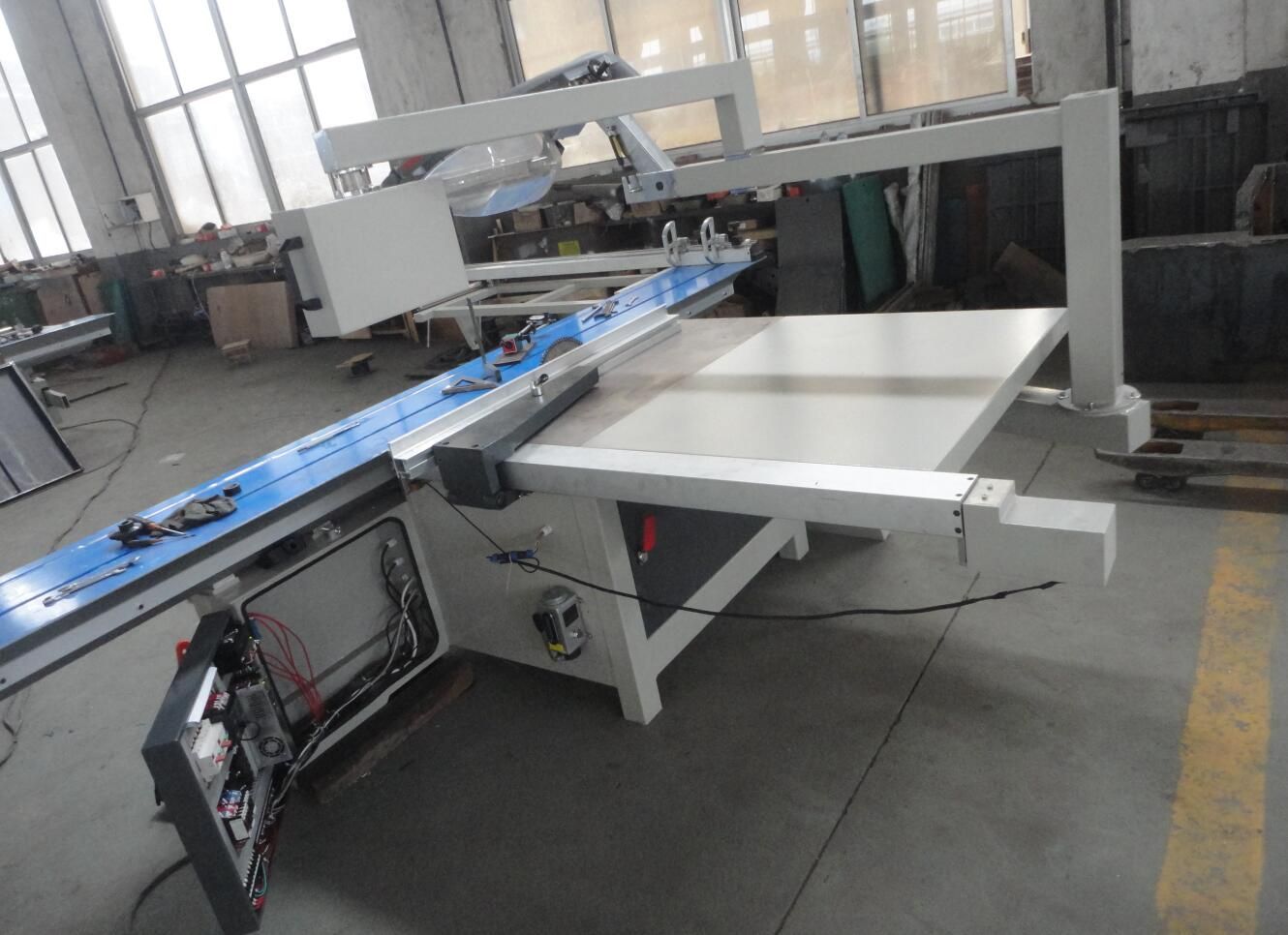

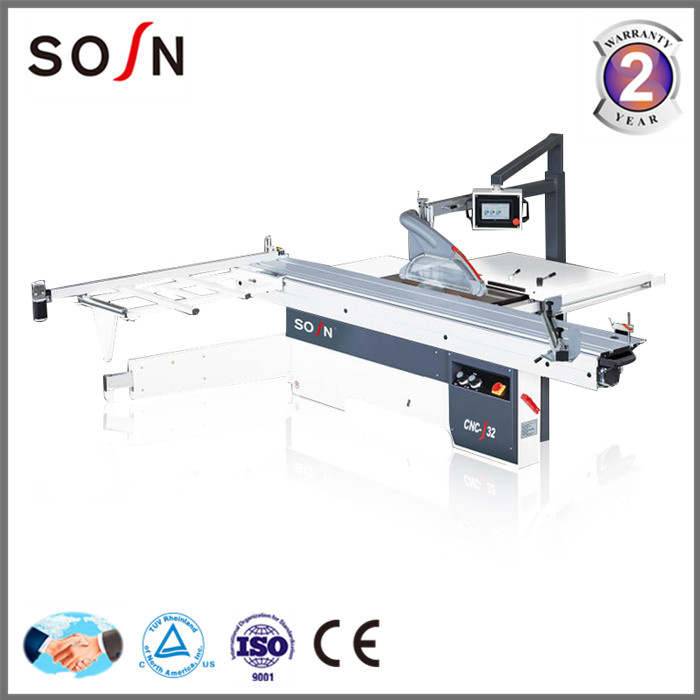

Wood cutting machine CNC sliding table saw with CE CNC-32TA

Adopting Italy advanced technology. Easy adjustable scoring blade system. Belt tension with sir spring. 2 speed with belt tension quick release. Vibration-free cast iron housing. High precision filt segment. Linear rail lifting system, high focus cutting, much easier operation.
Dimension of sliding table3200x400mm
Gross cut capacity 3200mm
Width of cut between saw blade and rip fence    1250mm
Saw blade diameter 300mm(250-400mm)
Height of cut (300mm) 90mm
Height of cut with saw blade 300mm at 45°60mm
Speed of main saw spindle  4500/6000rpm
Main spindle diameter  30mm
Tilting saw blade 0-45°
Main motor  5.5kw
Scoring saw blade diameter 120mm
Speed of scoring saw blade 7000-8000rpm
Scoring saw diameter 20mm
Scoring motor 1.1kw
The motor of rip fence and large ruler400w (stepping motor with variable frequency )
Gross weight 950kg
Overall dimension 3300x3150x900mm

http://youtu.be/D1UiCAXIQSM
This is the video of CNC sliding table saw CNC-32TA
Please check it


Features:

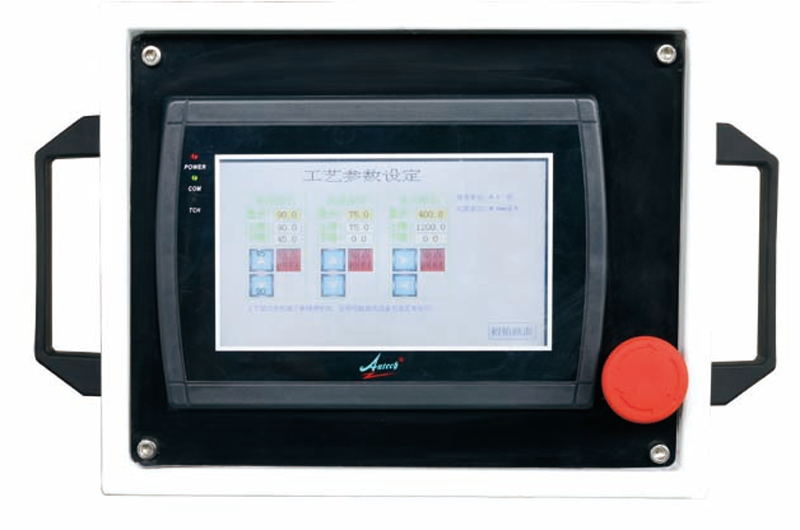

1.Imported LED control panel can accurately display 4 axis of blade height, tilting angle, rip fence position and large ruler position.

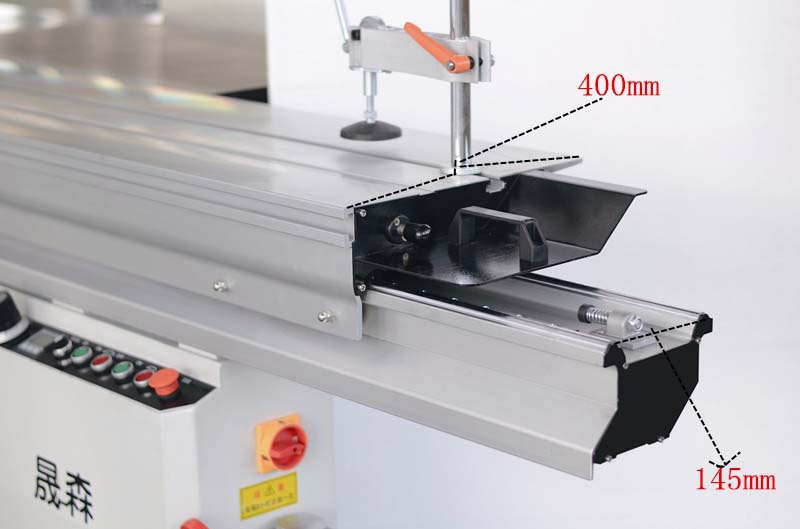

2.For A sliding table, the width is 400mm, inside width is 145mm, so much more precision and stable

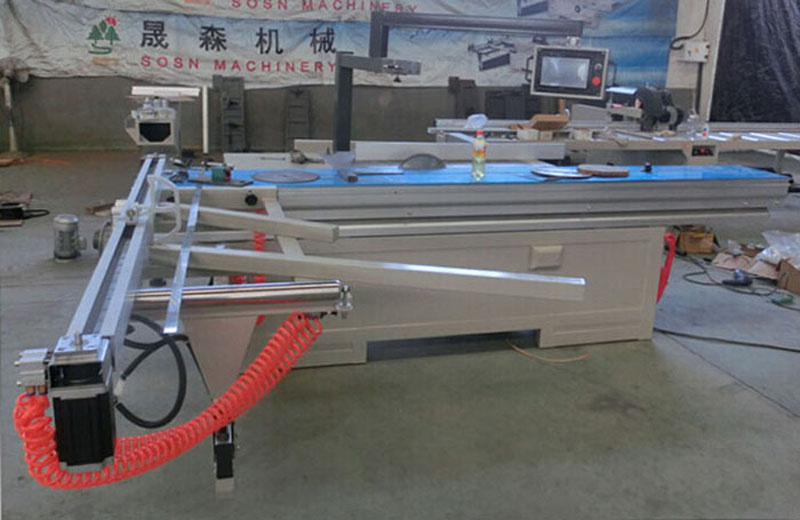

3. Rip fence and the electric box

4. cut off fence

Have any question, pls feel free to contact us
We will supply you 24-hour service


Qingdao SOSN Machinery Co., Ltd., Is the science and technology knowledge-intensive enterprises which is specialized in the production of woodworking machinery equipment and gathers the research, development, production, sales and service together. The leading products of woodworking products are CNC router, panel saw series, sanding machine series, woodworking drill platoon, vacuum laminating machine, edge banding machine, computer engraving machine and the other seven series and over sixty standards.

SOSN company pursues the tenet of taking honesty as base, quality as life, innovation as subject, and development as theme; Abides by the quality promise to customers; Pays attention to personnel training and introduction; Closely connects and cooperates with scientific research institute; Owns strong technical strength and perfect testing measures; Gathers the advanced technological superiority and precise production equipments together; Has a number of technical staffs who are specialized in the production of woodworking machinery and have deep comprehend and experiences about woodworking machinery, panel saw and the other products. All of these guarantee the high quality and capability of woodworking machinery.

We develops the new products continuously which are sold across the country and to Russia, Ukraine, Middle-East, South Africa, Southeast Asia, Central Europe and the other countries and areas. We have earned the trust of customers and our product process is in the leading level among the same industry of domestic.

SOSN main product,

CNC Router

Panel saw/sliding table saw(manual, electric, digital, CNC, more than 30 kinds)

Edge banding machine: Manual, semi-automatic, full automatic

Boring/Drilling machine

Belt sanding machine

Dust collectors

Solid wood processing machine: Thicknesser and planer, mortiser, band saw, etc

For our every set machine, we have QC to test before sending to our customers, They are experts in the field of woodworking machinery. Because of this, we can keep the quality good and stable for our customers.

High quality, competitive price, good service and regular supply is always we can promise to our every customer, SOSN woodworking machinery is your best choice!

You are warmly welcome to join us in this business line to have a Win-win situation!
