Wood Cutting Machine Horizontal Panel Saw with Sliding Table
| Price: |
US $ 2000-3000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
MJ6122TA |
| Name: |
Panel Saw |
| The Size Of Sliding Table: |
2200X375mm |
| Saw Blade Tilting: |
0-45 Tilting |
| The Diameter Of Main Blade: |
300 mm |
| The Diameter Of Scoring Blade: |
120mm |
| The Power: |
5.5 Kw +1.1 Kw |
| Type: |
Table Panel Saw |
| Layout: |
Horizontal |
| Automatic Grade: |
Manual |
| Precision: |
High Precision |
| Certification: |
ISO |
| Controlling Mode: |
Manual |
Product Description

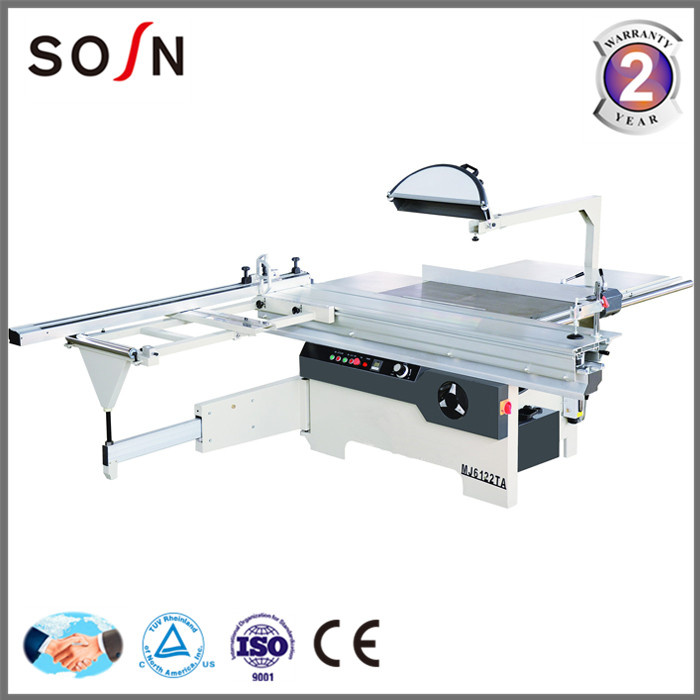

Wood cutting machine horizontal panel saw with sliding table MJ6122TA
Feature:1. Apply to processing all kinds of density boards, shaving boards, wood-based panels, ABS panels, PVC panels, organic glass plates and solid wood and others with wood structure and similar hardness. 2. Movable table guide track is plating chromium steel bars structure, exact and durable.3. With oxidation treatment, movable table surface is beautiful and hard wearing.4. Made of high-strength extruded aluminum alloy, movable table is high in strength and won't bend.1. electrics : China brand 2 . motor 5.5+1.1, with copper wire and aluminum case 3.14 fixed points on the machines to make sure the no changable. 4 .dynamic balance.5 . much heavier. 6.can be designed as your need| Main technical parameter for MJ6122TA |
| Dimension of sliding table | 2200x375mm |
| Gross cut capacity | 2200mm |
| Width of cut between saw blade and rip fence | 1250mm |
| Saw blade diameter | 300mm(250-300mm) |
| Height of cut (300mm) | 90mm |
| Height of cut 300mm saw blade at 45° | 60mm |
| Speed of main saw spindle | 4500/6000rpm |
| Main spindle diameter | 30mm |
| Tilting saw blade | 0-45° |
| Main motor | 5.5kw (380v, 3phase) |
| Scoring saw blade diameter | 120mm |
| Speed of scoring saw blade | 8000rpm |
| Scoring saw diameter | 20mm |
| Scoring motor | 1.1kw |
| Net weight | 800kgs |
| Overall dimension | 2250x3150x900mm |

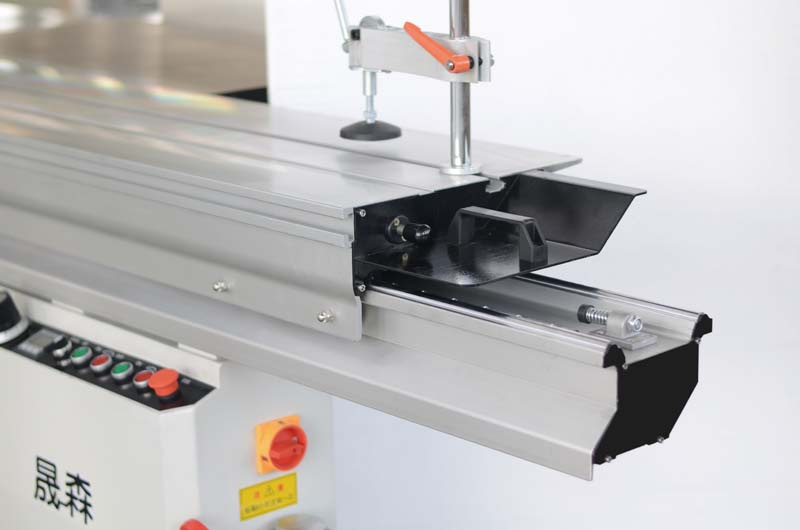

2200*375 mm sliding table :

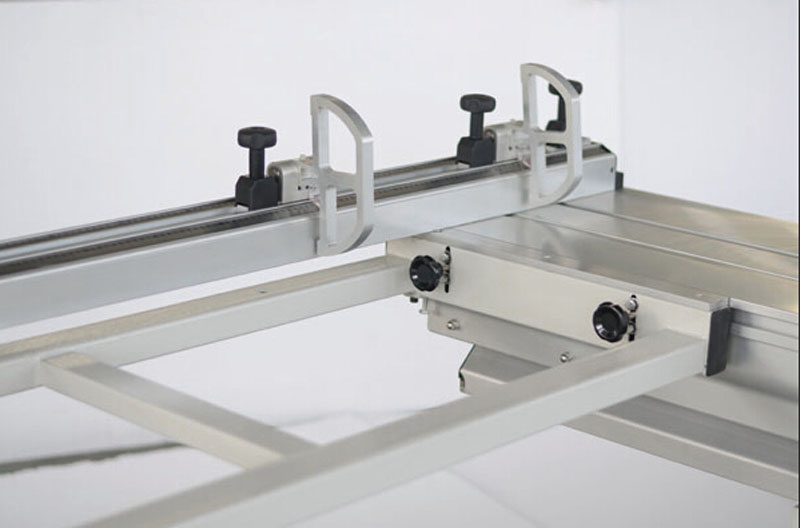

Large ruler:
Plywood package:

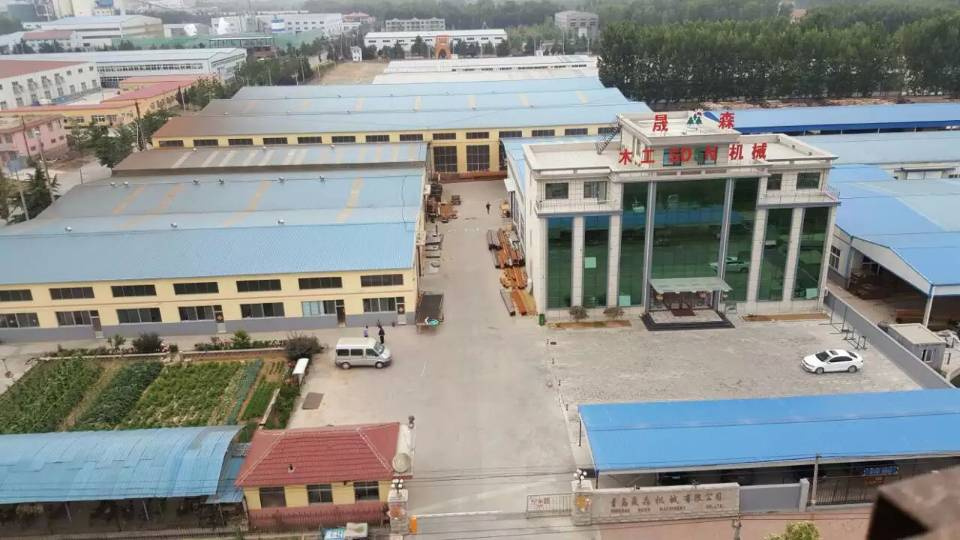

The appearance of the factory:
