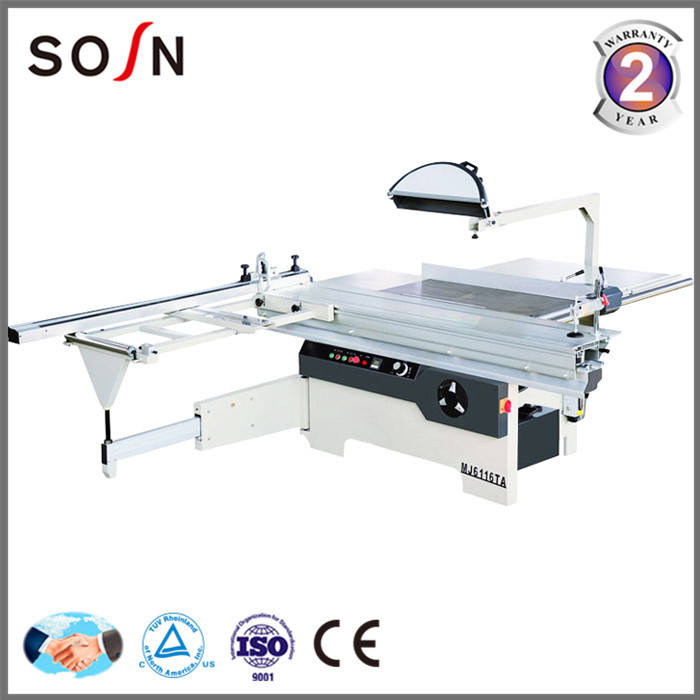

| Prod Model: |
MJ6118ta |
| Dimension Of Sliding Table: |
1800*375mm |
| Gross Cut Capatity: |
1800mm |
| Saw Blade Diameter: |
300mm(250-350mm) |
| Height Of Cut: |
90mm |
| Speed Of Main Spindle: |
4500-6000rpm |
| Scoring Saw Blade Diameter: |
120mm |
| Main Spindle Diameter: |
30mm |
| Scoring Spindle Diameter: |
20mm |
| Motor Power: |
1.1kw |
| Weight: |
650kg |
| Type: |
Wood Saw Machine |
| Controlling Mode: |
CNC |
| Feed Mode: |
Manual |
| Spindle Layout: |
Horizontal |
| Certification: |
CE |
| Screw: |
Multi-Screw |
| Spindle Number: |
Double-Spindle |
| Precision: |
High Precision |
| Plastic Processed: |
ABS |
| Cutting Machine Type: |
Hydraulic Cutting Machine |
Product Description
1, electrics : Chint brand 2 , motor 5.5+1.1, with copper wire .3,14 fixed points on the machines to make sure the no changable.4 ,dynamic balance.5 ,much heavier.6, can design as your require
Our products can be classified as
| Main technical data | MJ6118TA |
| Dimension of sliding table | 1800x375mm |
| Gross cut capacity | 1800mm |
| Width of cut between saw blade and rip fence | 1250mm |
| Saw blade diameter | 300mm(250-300mm) |
| Height of cut (300mm) | 90mm |
| Height of cut 300mm saw blade at 45 degree | 60mm |
| Speed of main saw spindle | 4500/6000rpm |
| Main spindle diameter | 30mm |
| Tilting saw blade | 0-45° |
| Main motor | 5.5kw |
| Scoring saw blade diameter | 120mm |
| Speed of scoring saw blade | 8000rpm |
| Scoring saw diameter | 20mm |
| Scoring motor | 1.1kw |
| Overall dimension | 1750x3150x900mm |
According to the tilting: 45 degree(T) and 90 degree
According to the structure: Linear(Z), Round rod(D) and Altendrof(A)
The cutting capacity is from 1500mm to 3800mm( usually we have 1600mm, 2200, 2600, 2800, 3000, 3200,3800mm)
Manual operation, Semi-automatic and automatic precision panel saw
Main Feature
1.Apply to processing all kings of density boards, shaving boards, wood-based panels, PVC panels, organic glass plates and solid wood and others with wood structure and similar hardness.
2.Movable table guide track is plating chromium steel bars structure, exact and durable.
3.Made of high-strength extruded aluminum alloy, movable table is high in strength and won't bend.
5.With oxidation treatment, movable table surface is beautiful and hardwearing.
Superiority
High speed: High rigid structure effectively reduces the vibration caused by high speed operation.
Wide-ranging versatility: Best price precision sliding table saw
applicable to a wide range of woodworking machines.
Company Information
We are a professional manufacturer in the line of woodworking machinery .With CE certification,our products are popular and sell well in many countries and regions, like,Iran,Russia,Brazil, EN, the whole America , and so on. Time has tested the quality of our products and the good credit of our company. Now there are still many large orders send to us every day from far away.
Our company purpose:"credit first, customer supreme" to the quality and development. Welcome to our company for visiting, learning ,teaching, negotiating, and cooperating
if you have any questions,please contact me cherry
web:www.sosnmachinery.com
Note:
1)The warranty period of the machine body is one year, 3 months for easy-broken parts(we send easy broken parts for after-sale service).
2) 30% payment IN ADCANCE by T/T,the balance 70% on proof of readiness of machines.
3) The price is valid within 3 months
Any question, please feel free to contact me as a friend.
Web site: www.sosnmachinery.com
Contact:cherry +8615092459267
Qingdao SOSN Machinery Co.,Ltd
Qingdao SOSN Machinery Co., Ltd., Is the science and technology knowledge-intensive enterprises which is specialized in the production of woodworking machinery equipment and gathers the research, development, production, sales and service together. The leading products of woodworking products are CNC router, panel saw series, sanding machine series, woodworking drill platoon, vacuum laminating machine, edge banding machine, computer engraving machine and the other seven series and over sixty standards.
SOSN company pursues the tenet of taking honesty as base, quality as life, innovation as subject, and development as theme; Abides by the quality promise to customers; Pays attention to personnel training and introduction; Closely connects and cooperates with scientific research institute; Owns strong technical strength and perfect testing measures; Gathers the advanced technological superiority and precise production equipments together; Has a number of technical staffs who are specialized in the production of woodworking machinery and have deep comprehend and experiences about woodworking machinery, panel saw and the other products. All of these guarantee the high quality and capability of woodworking machinery.
We develops the new products continuously which are sold across the country and to Russia, Ukraine, Middle-East, South Africa, Southeast Asia, Central Europe and the other countries and areas. We have earned the trust of customers and our product process is in the leading level among the same industry of domestic.
SOSN main product,
CNC Router
Panel saw/sliding table saw(manual, electric, digital, CNC, more than 30 kinds)
Edge banding machine: Manual, semi-automatic, full automatic
Boring/Drilling machine
Belt sanding machine
Dust collectors
Solid wood processing machine: Thicknesser and planer, mortiser, band saw, etc
For our every set machine, we have QC to test before sending to our customers, They are experts in the field of woodworking machinery. Because of this, we can keep the quality good and stable for our customers.
High quality, competitive price, good service and regular supply is always we can promise to our every customer, SOSN woodworking machinery is your best choice!
You are warmly welcome to join us in this business line to have a Win-win situation!
