Prod Model: |
CS4000 |
Type: |
Table Panel Saw |
Layout: |
Horizontal |
Controlling Mode: |
CNC |
Automatic Grade: |
Semiautomatic |
Precision: |
Precision |
Certification: |
ISO |
Product Description

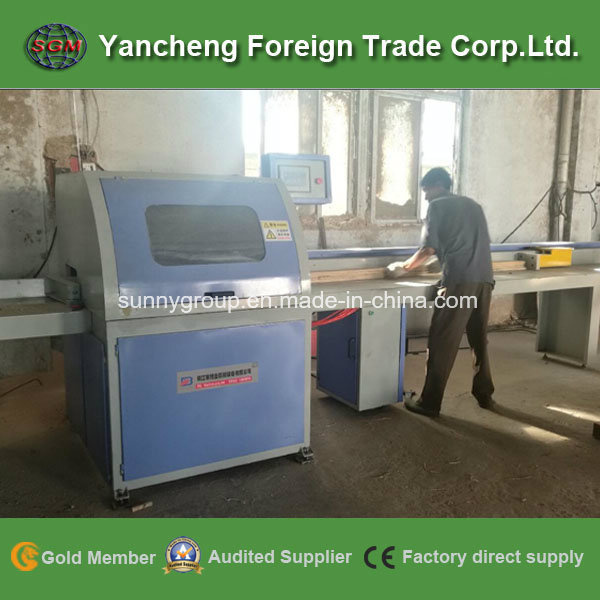

Wood pallet electric control cutting saw, Wood tray automatic production line, electronic intercept saw, CNC cutting saw, cutter, long saw
CNC cutting saw is a computer program control, through the reasonable calculation and the length of the collocation, can production line into the best cutting plan, was carried out on the wood transverse, can greatly improve production efficiency and machining precision, replace manual or traditional machine in production, so as to meet the factory mass production requirements, factories, in order to solve the low efficiency in the process of production, precision error is large, the phenomenon such as difficult to manage.
Precision Panel Saw CS-4000 |
Dimension of sliding table | 5000*700*980mm |
Gross cut capacit | 4000mm |
Width of cut between saw bailade and rip fence | 200mm |
Saw blade diameter | 400/450mm |
Height of cut | 110/130mm |
Spee of main saw spindel | 3500/rpm |
Main spindel dimeter | 30mm |
Main motor | 7.5kw |
Net Weight | 950kg |
Gross Weight (with plywood pacakge) | 1100kg |
overall diamensions | 7300*1200*1500mm |
cutting 6 meter machine can be customized according to the needs |
Electronic cut-off sawThe electronic truncation saw is mainly used for pallet panel, block, traditional caged wooden case, etc., which can also be used in the production of furniture parts. Compared with the ordinary blanking process, Po industry electronic cutting saw on your timber volume, standardized production, reduce the on-the-job personnel, improve the production efficiency, as well as the rationalization of personnel and material management, production safety, has a prominent advantage. Save cost for you, increase profit, give you rich return!Truncated saw is computer control, through the reasonable calculation and the length of the collocation, can production line into the best cutting plan, was carried out on the wood transverse, can greatly improve production efficiency and machining precision, replace manual or traditional machine in production, so as to meet the factory mass production requirements, factories, in order to solve the low efficiency in the process of production, precision error is large, the phenomenon such as difficult to manage.Performance Characteristics:1, Mitsubishi industrial control, performance more stable;
2, free combination saw cutting size to reduce production waste;
3, The equipment is simple and flexible, one worker can operate;
4, High material rate, reduce the cutting loss in the past;
5, Quick cutting block; high precision; safe and efficient;
6, Safety, the entire operation process to avoid the worker's finger touch the saw blade
Warm prompt:In order to better serve you and provide you with reasonable equipment suitable for you, we need you to provide some details:
1, Length of raw materials,
2, The maximum height and width of raw materials
3, You need a day's output
We will provide you with the best equipment and considerate service. If you are conveninet, was sincerely invite you to visit our factory to discuss the test.
