Wood Square Multi-Blade Saw with Ce Approval
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
WBCM-1300-14 |
| Type: |
Table Panel Saw |
| Layout: |
Horizontal |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Automatic |
| Precision: |
Precision |
| Certification: |
ISO |
Product Description
SGM mechanical and multi-blade saw practical wooden square foot piers automatic cutting and cutting of 5 cubic meters per hour under the material artifactSGM wood square multi-blade saw, suitable for machining diameter planer wooden square, solid wood wood, multi-layer board wood. The machine is stable, efficient, safe and simple, which is dominant in wood pallet processing equipment.Chain plate/chain feed, guide sheet material, suitable for processing short wood. The feeding chain penetrates the frame, the whole chain conveyor can cut the shorter wooden square, and the cutting is more smooth. The device can make it more efficient than other types of saws.
1# Product features1, Automatic feeding, precision cutting, automatic baiting, process without interruption.2. High production efficiency. 5 cubic meters per hour.3. Install bulletproof chain in the feed port to prevent the sawdust from rebounding; The outlet of the outlet is installed on the ramp to prevent the coming out of the wood.4. The top of the machine has safety cover, and it is safer to place wood.5. Automatic feeding, upper and lower shaft structure, multi-slice saw cutting, continuous discharging, 5-6 times more efficiency than band saw, and thinner than other machines.6. Excellent Shanghai quality motor, long service life.7. The multi-slice saw cutting process is stable, the cutting precision is high, the surface is smooth and smooth, no need to be processed again, and the wood waste is reduced.

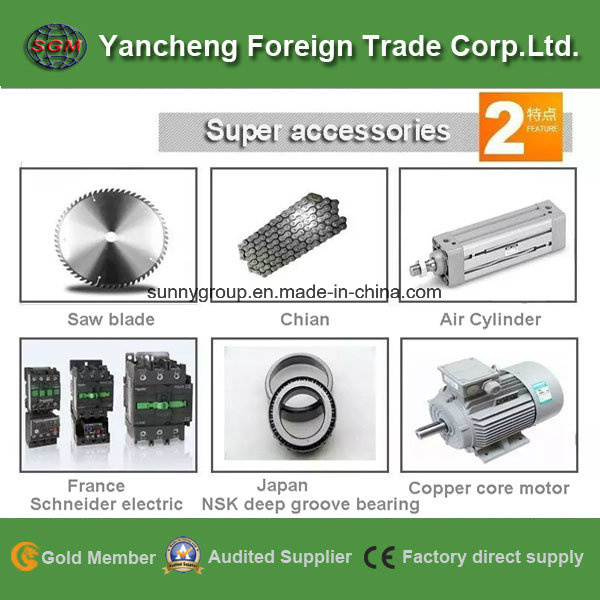

8, The long extend conveyer frame with power is strong and powerful, reducing the labor intensity of the workers, and cutting the logs more smoothly.9, Strong and powerful cylinder drive feed to feed, low failure rate; High quality belt conveyor, durable.,2# Super strong accessories
3# Product specification | Model | WBCM-1300-14 | Appearance size | 1950*1450*1300mm |
| Machining precision | 0.5mm | Bearing | Japan NSK bearing |
| Motor | machining | Electric cabinet | Fully enclosed independent electric cabinet |
| Power | 22KW | Feeding speed | 7s for one time cutting |
| Rated Power | 380V | Net Weight | 800kgs |
| Driving mode | Chain drive | Saw blade | Alloy saw blade |
| Maximum machining width | 200mm | Qty. of saw blade | 14pcs |
| Maximum machining thickness | 120mm | Size of saw blade | 355x3.2x60Tx30 |
| Maximum machining length | 1300mm | Speed | 2800r/min |

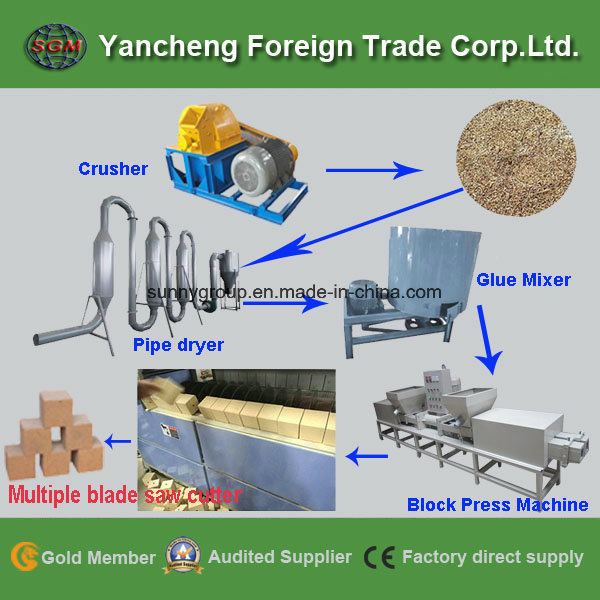

4# Processing flowAutomatic feeding --- Automatic press --- Automatic cutting --- Automatic blanking --- Artificial arrangement and placement --- Packing
5# Simple operationSimple operation, zero error, zero fault, Little dust
