Prod Model: |
CDS-001 |
Type: |
Band Saw |
Layout: |
Vertical |
Controlling Mode: |
CNC |
Automatic Grade: |
Automatic |
Precision: |
High Precision |
Certification: |
ISO |
Product Description

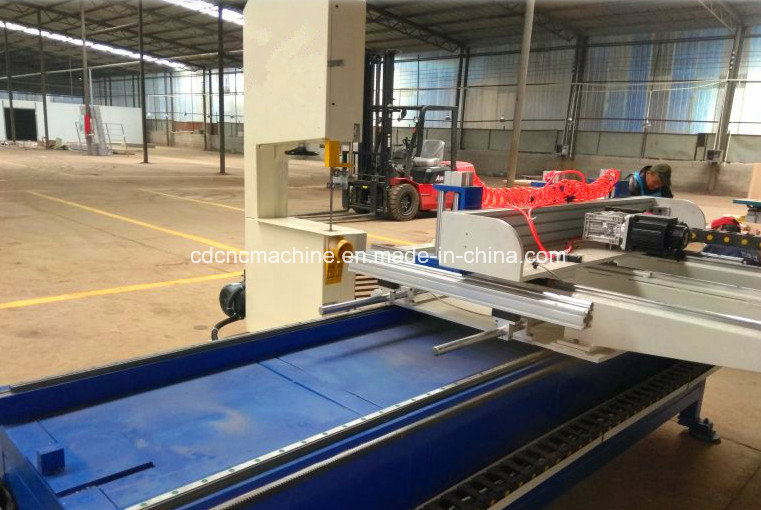

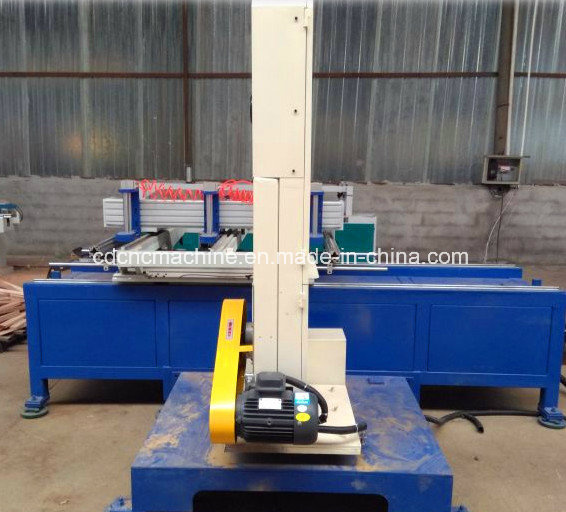

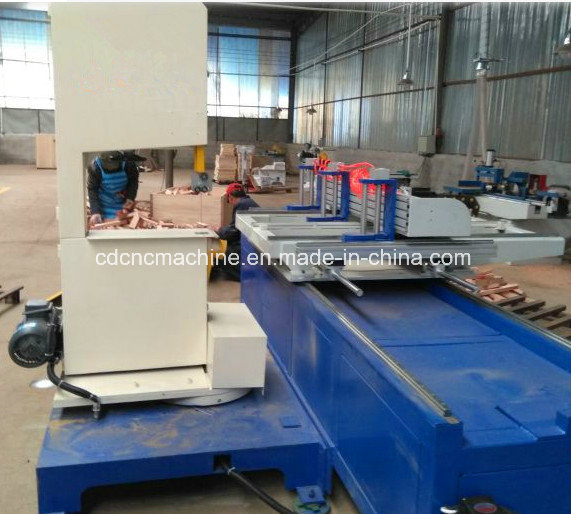

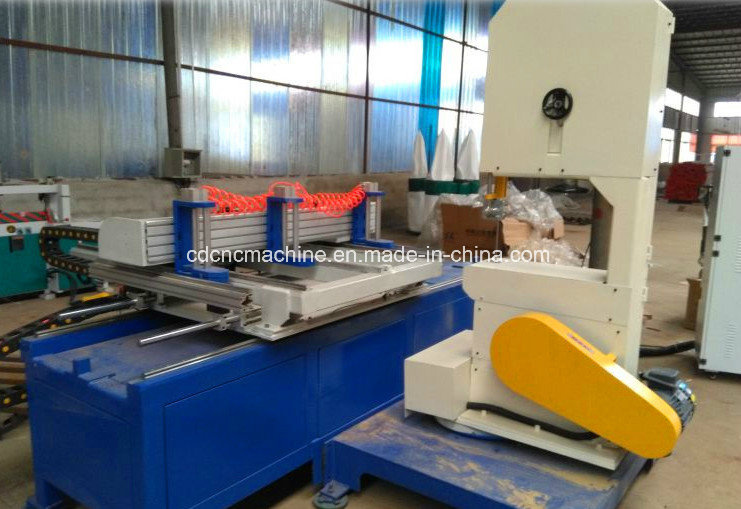

woodworking band saw automatic wood cutting band saw CNC Linear Cutting Saw Machine
Characteristics
(1).the processing efficiency is high, the processing work-piece surface is good quality and no need to be crossed.
(2).Save the timber, processing range is wide, automatic programming, theoperation is easy, man-machine division, it can reduce the risk of industrial injury, it is an ideal production equipment for wood furniture and other enterprises.
(3).This machine no need to rotate the saw blade, it can easily rotate 90' , and the used saw range is wide, the width is from 10 mm to 20 mm, scientific structure design avoids the loss brought by the saw breaking and loss, extend the life of the saw blade.
(4).Few area for this machine in the workshop, processing range is wide, but with high efficiency.
(5).It is an affordable and economy machine, it can solve the curve processing for hundreds of users.
(6).The open feeding platform is more convenient, and the sawing efficiency is higher. Strong cylinder fixtures, the clamping device is reliable, clamping rang e is wide, it can saw the multi-layer sheet synchronously.
(7).The saw clamping device can enhance its precision.
(8).Advanced numerical control system with special CAD software, automatic discharging, it can save the timber, and it is also easy to learn and operate.
Applications:

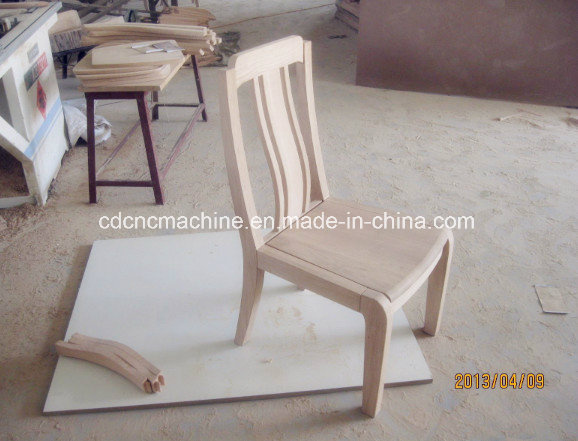

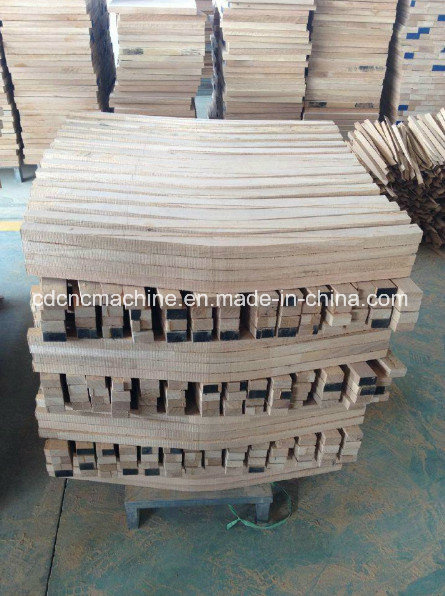

Chair legs,chair backs,dinning table,hatstand,desk,bed,home decorations etc
Parameters
Mode | CNC1212 | CNC1225 |
Max size of work-piece | 1220*1220mm | 1220*2500mm |
Max working thickness | 250mm | 250mm |
Saw wheel diameter | 600mm | 600mm |
Saw length | 25*0.9*4470 | 25*0.9*4470 |
Min cutting radius | R80 or R95mm | R80 or R95mm |
Saw table jaws deepth | 760mm | 760mm |
Saw tilting | ±90° | ±90° |
X-Axis Motor | 15n/m | 15n/m |
Y-Axis Motor | 10n/m | 10n/m |
Z-Axis Motor | 6n/m | 6n/m |
Spindle motor | 4kw | 4kw |
X-Axis Maximum Speed | 40m/min | 40m/min |
Y-Axis Maximum Speed | 40m/min | 40m/min |
Z-Axis Maximum Speed | 180 °/sec.3 | 180 °/sec.3 |
Processing Speed | 1-25n/m | 1-25n/m |
Return speed | 6-40n/m | 6-40m/min |
Air pressure | 0.6-0.8mpa | 0.6-0.8mpa |
Dust outlet diameter | Φ100 | Φ100 |
Net weight | 2700kg | 3000kg |
Overall dimensions | 2000*1400*2300mm | 2000*1400*2300mm |
| 2400*2350*1500mm | 3800*2350*1500mm |
Warranty:
(1). The engineers of the original factory are available to do all kinds of the original factory are available to do all kinds of oversea machinery service. In some countries, we have oversea agents doing after sale service in time and professionally.
(2). we also offer 24 hours heart to heart service on-line or mobile.
(3).Your technologists could attend the training in our factory and on-line which be free of chaege
(4).The warranty of CNC Curve Band Saw is 12 months, small broken parts could be freely replaced at any time, spare parts are delivered with machine for customer convenience.
(5). We offer you best agent price and distributer price for our further cooperation .
(6). we can offer special custom-made according to your request.
