| Price: | US $ 9000-16000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | T/T,Western Union,Paypal |
| Prod Model: | NM-48 |
|---|---|
| Spindle: | 3kw/4.5kw / 6kw /7kw |
| Table: | T-Slot Vacuum Table |
| Controller: | DSP Controller |
| Vacuum Pump: | 5.5kw / 7.5kw |
| Motor: | Stepper Motor / Servo Motor |
| Rail: | Taiwan Linear Rail |
| Rack: | German Helical Racks |
| Software: | Type 3 / Artcam |
| Working Area: | 1525mm*3050mm |
| Dust Collector: | 3kw/5.5kw |
| Wood-working Industry | ideally suitable for furniture decoration, musical instruments, wooden crafts, solid wood furniture, MDF paint-free door, wood composite door, cabinet, kitchen doors, windows, night table, etc. Decoration industry: art model, Wall Art, screen relief engraving and cutting, decoration processing, gifts wrapping, waved plate, electrical cabinets panels, sports equipment, and other wooden industrial products. |
| Mechanical characteristics: | |

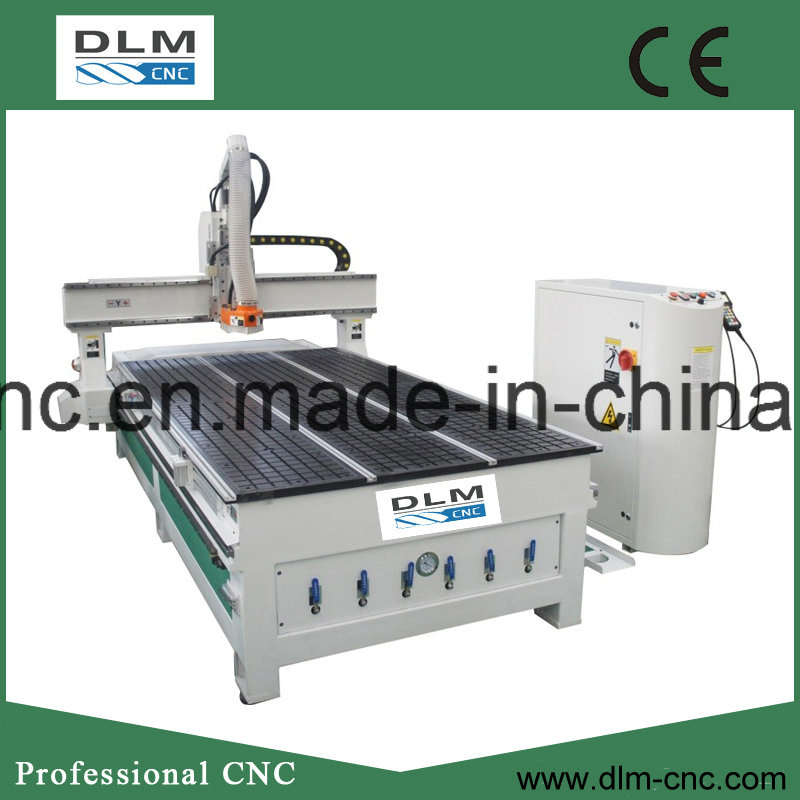

| Function | Standard CNC Router, suitable for engraving, drilling, cutting, edge chamfering, etc. |
| Construction | Whole machine table adopt high strength thick steel pipe welded. Whole working table cast by resin sand. The annealing and other heat treatment methods ensure that the whole structure is tested to the limit for sturdiness and reliability. |
| Spare parts | Features world top class mechanical and electronic components, e.g. German rack and pinion, Taiwan rail and ball screw, Taiwan reducer, French Shneider electrical components, which guarantee stable performance and high quality. |
| Precision | Excellent spare parts, accuracy precision detection instrument, which make sure the machine with perfect location and working precision. |
| High-speed | Adopt reducer direct design, high torque, high-energy, X axis dual motor drive, runs smoothly with high efficiency. |
| Table | T-slot vacuum table design, comfortably accommodating all sizes of work piece. |
| A1-H Series | NM-44 | NM-48 | NM-510 | NM-2040 |
| Table Area | 1220mm*1220mm | 1220×2440mm | 1525×3050mm | 2000×4000mm |
| Traveling Area | 1320×1320×250mm | 1320×2540×250mm | 1625×3150×250mm | 2100×4100×250mm |
| Traveling Speed | 40m/min | |||
| Working Speed | 15m/min | |||
| Spindle Power | 3.0/4.5/6kw | |||
| Spindle Speed | 18000r/min | |||
| Working Voltage | AC380V/3PH/50HZ | |||
| Driving System | Stepper motor/ Servo motor | |||
| Controller | NC-Studio/DSP | |||
| Locate Mode | Positioning cylinder | |||
| Table Structure | T-slot vacuum / T-slot /Vacuum | |||
| Optional | Multioperation / Lateral drilling and milling / Automatic loading & unloading system | |||
| / Safety protection guard/ Double station / B Axis / Vacuum | ||||
