North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Maximum Spacing Of Two Horizontal Drille:
640mm
Max. Panel Thickness:
80mm
Max. Drilling Depth:
40mm
Driller Power:
1.5kw * 2
Structure:
Deep Hole Boring Machine
Precision:
High Precision
Controlling Mode:
Artificial
Automation:
Automatic
Certification:
ISO
Product Description

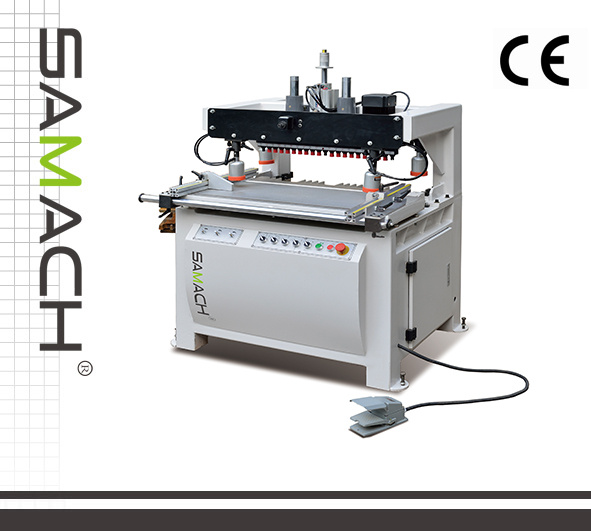

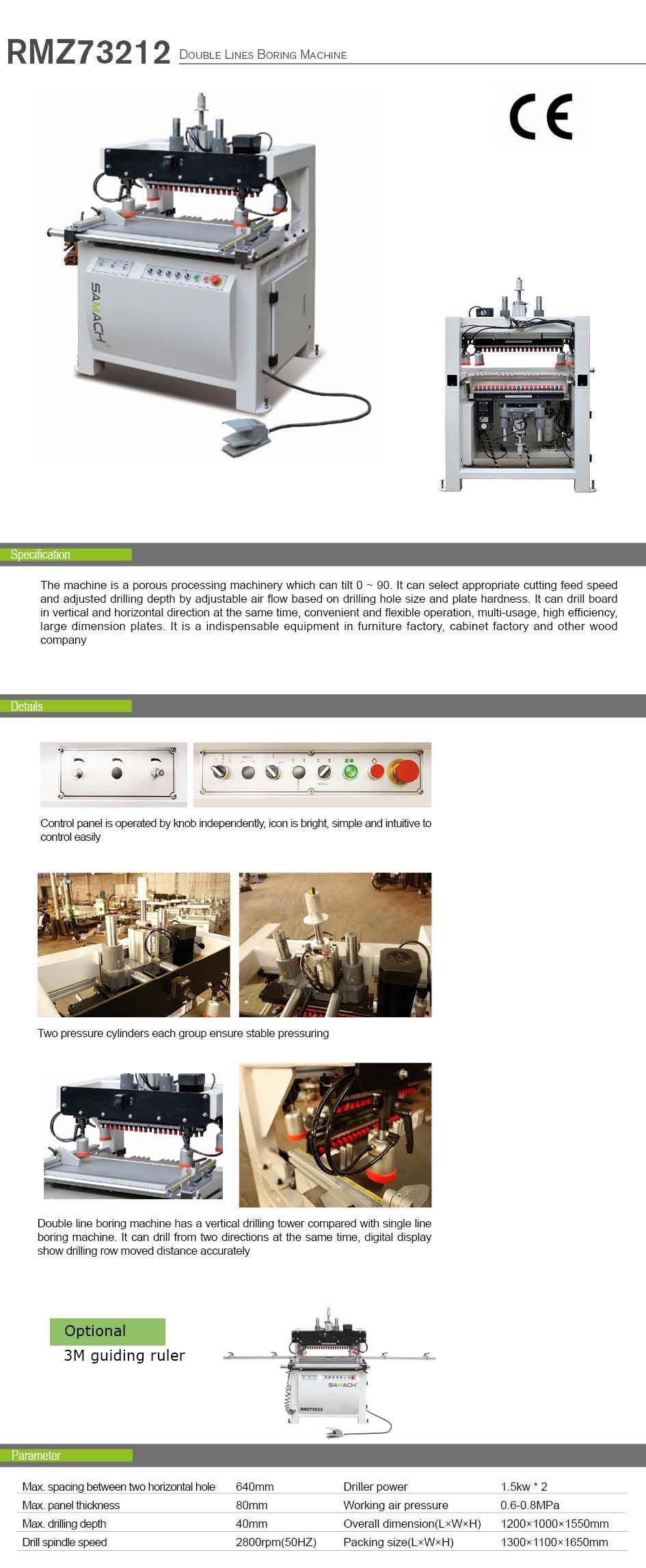

Double Lines Boring Machine RMZ73212
The machine is a porous processing machinery which can tilt 0 ~ 90. It can select appropriate cutting feed speed and adjusted drilling depth by adjustable air flow based on drilling hole size and plate hardness.
It can drill board in vertical and horizontal direction at the same time, convenient and flexible operation, multiusage, high efficiency, large dimension plates. It isindispensable equipment in furniture factory, cabinet factory and other wood company. Specification:
1. Control panel is operated by knob independently, icon is bright, simple and intuitive to control easily.
2.Two pressure cylinders each group ensure stable pressuring.
3.Double line boring machine has a vertical drilling tower compared with single line boring machine. It can drill from two directions at the same time, digital display show drilling row moveddistance accurately.
Optional
3M guiding ruler
Parameters:
Model
RMZ73212
Max. spacing between two horizontal hole
640mm
Max. panel thickness
80mm
Max. drilling depth
40mm
Drill spindle speed
2800rpm(50HZ)
Driller power
1.5kw * 2
Working air pressure
0.6-0.8MPa
Overall dimension(L*W*H)
1200×1000×1550mm
Packing size(L*W*H)
1300×1100×1650mm
Reasons to choose Samac:
1: good resources with high quality in China 2: quick delivery 3: excellent after-sale services 4: 24 hours technical support through email or calls. 5: freind partner relationship.
Get the maximum return on your investment with Samach's affordable, flexible and user-friendly machines, designed to help you succeed by delivering maximum performance!
QingDao Samac International Trading Co., Ltd. Specializes in the export of woodworking, glass processing, metal processing and Stone Processing machinery. Our woodworking machinery series is mainly used to process real wood, wooden plates, plywood and related types of wood.
Since the foundation of our company, we have always introduced first-class Chinese machinery to the entire world. We cooperate with many local famous factories on R&D to keep in pace with this modern world. Our company aims to help our customers select the best quality and most suitable products for their needs. Simultaneously, we also undertake OEM/ODM projects which can satisfy customers' special requirements.
Quality: We are scrupulous about every detail, professional QC and strict checking porcedure ensure our work and guarantee eac machine which is in it's best presentation. All our goods pass through our rigid quality control before shipment.
With high-quality products, powerful strength, a professional team and excellent after-sales service, we have gained a good reputation among our customers. It is our sincere desire to develop more customers' business through trustworthy cooperation.
