| Prod Model: |
MJ6132TS |
| Dimension Of Sliding Table: |
3200*375mm |
| Gross Cut Capacity: |
3200mm |
| Main Saw Motor Power: |
5.5kw(7.5HP) |
| Speed Of Main Saw Spindle: |
4000/6000r.p.m |
| Max Cutting Height: |
80mm |
| Scoring Saw Spindle Diameter: |
20mm |
| Tilting Saw Group: |
0-45° |
| Diameter Of Main Saw Blade: |
300mm |
| Main Spindle Diameter: |
30mm |
| Diameter Of Scoring Saw Blade: |
120mm |
| Type: |
Table Panel Saw |
| Layout: |
Horizontal |
| Controlling Mode: |
CNC |
| Automatic Grade: |
Automatic |
| Precision: |
Precision |
| Certification: |
ISO |
Product Description

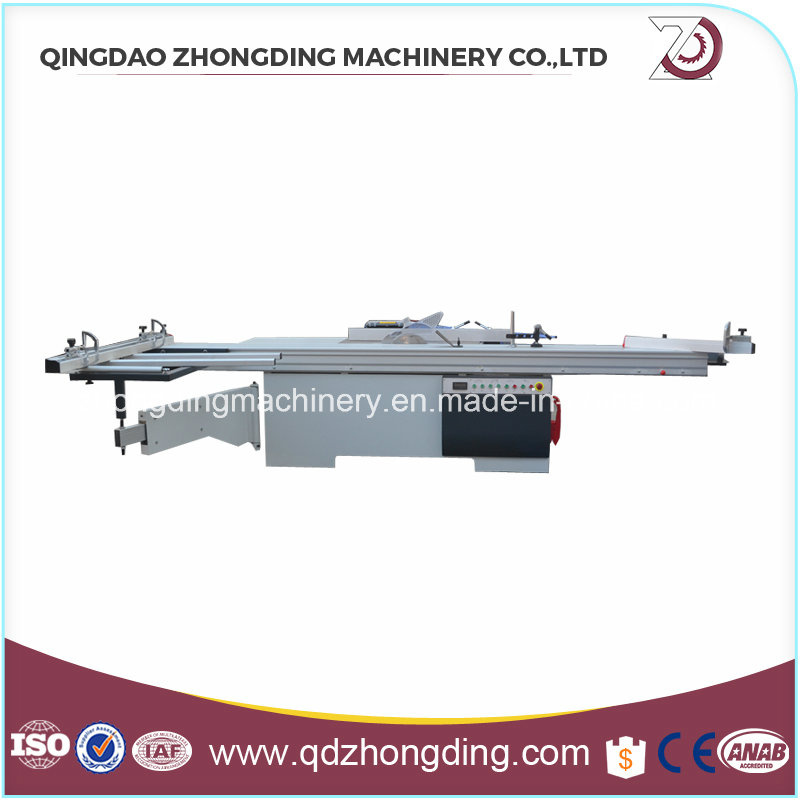

MJ6132TS Precise panel sawTechnical Specification: | Type | MJ6132TS |
| Dimension of sliding table | 3200x375 mm |
| Gross cut capacity | 3200 mm |
| Width of cut between saw blade and rip fence | 1250 mm |
| Tilting saw group | 0-45° |
| Diameter of main saw blade | 300 mm |
| Max cutting height (90°) | 80 mm |
| Speed of main saw spindle | 4000/6000 r.p.m |
| Main saw motor power | 5.5 kw |
| Main spindle diameter | 30 mm |
| Diameter of scoring saw blade | 120 mm |
| Speed of scoring saw spindle | 8000 r.p.m |
| Scoring saw motor power | 1.1 kw |
| Scoring saw spindle diameter | 20 mm |
| Lifting of saw blade | Electrical lifting |
| Weight | 760 KGS |
| Overall dimension | 3250x3150x900 mm |
Feature:- Apply to processing all kinds of density boards, shaving boards, artificial board, ABS board, PVC board, organic glass plates and solid wood and others with wood structure and similar hardness.

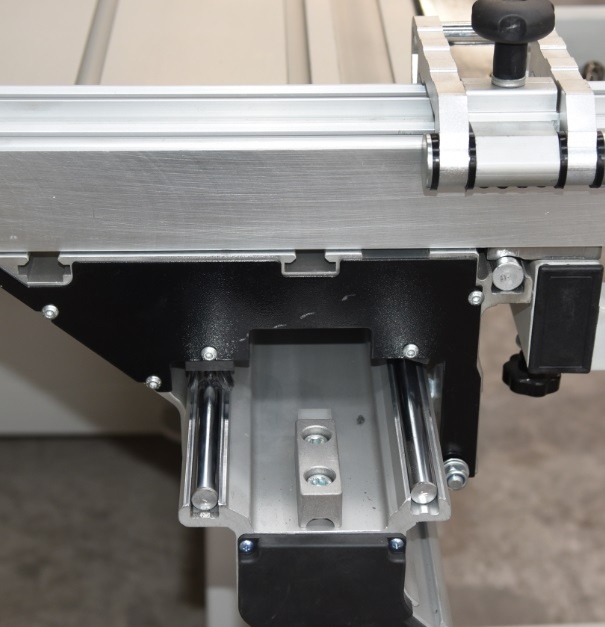

- Moveable table guide track is chromium steel bar structure, exact and durable.
- The sliding table is made of high strength extruded aluminum alloy, and it is high in strength and won't bent.
- With oxidation treatment, the sliding table surface is beautiful and durable.
- The body is welded with heavy-duty steel and with special heat treatment, better stability and lower noise.

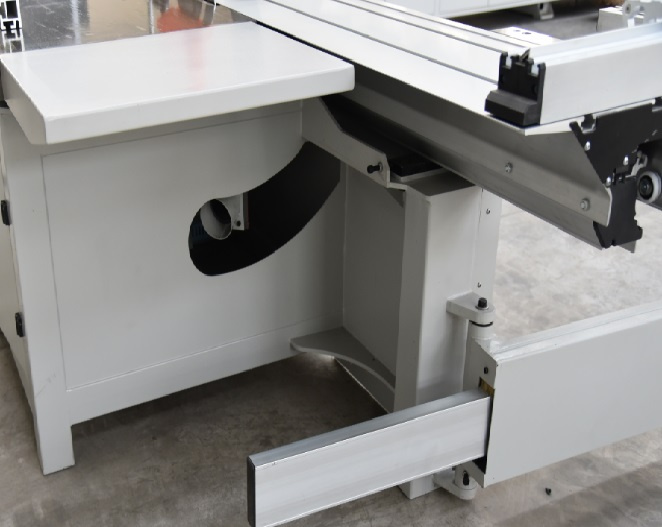

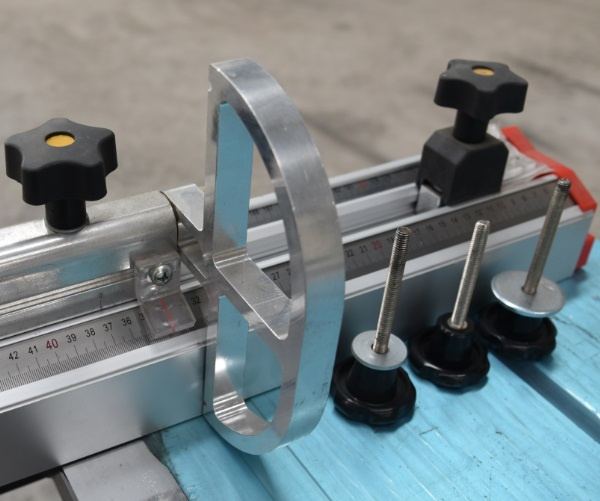

Product Details:

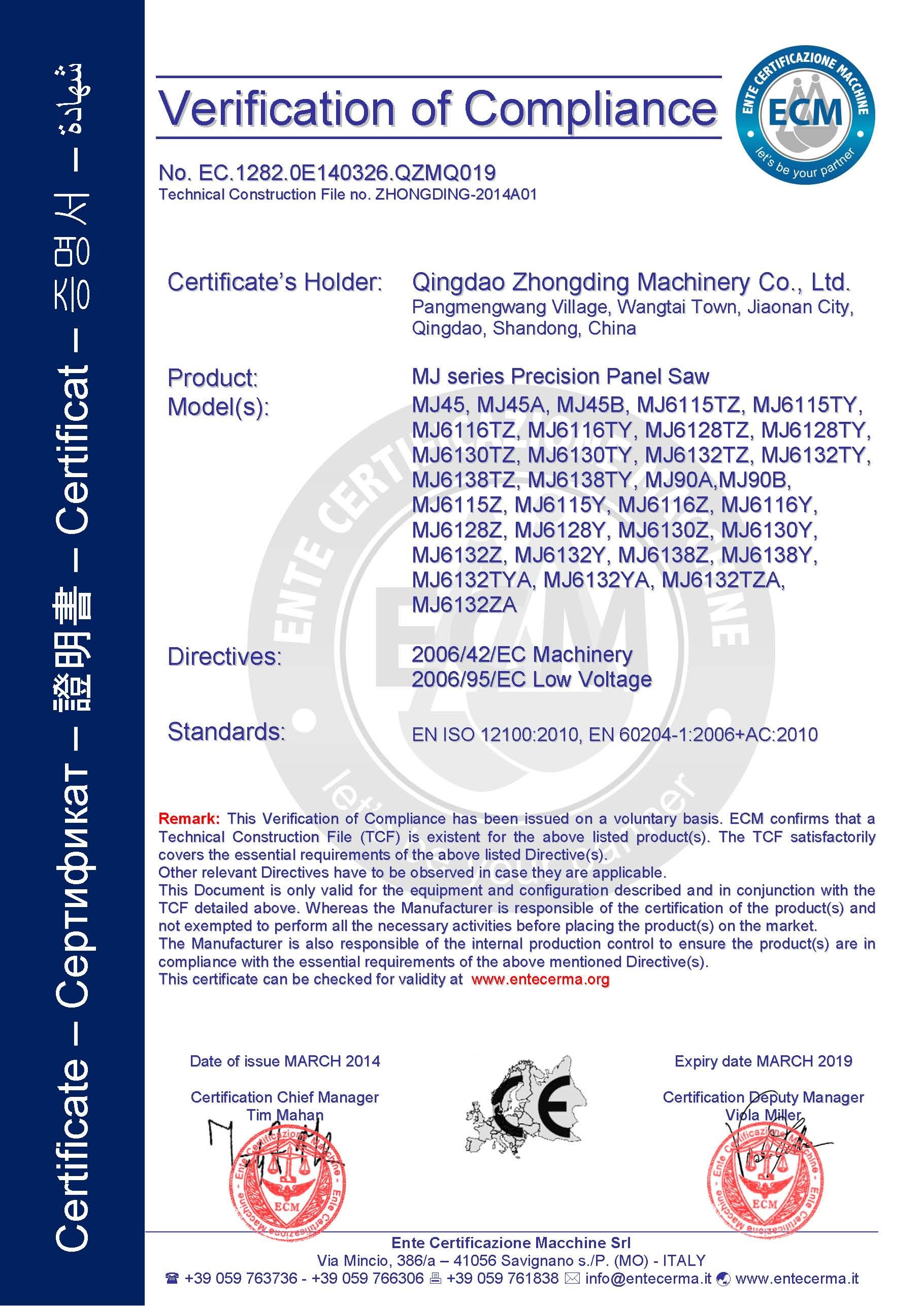

Certificate:

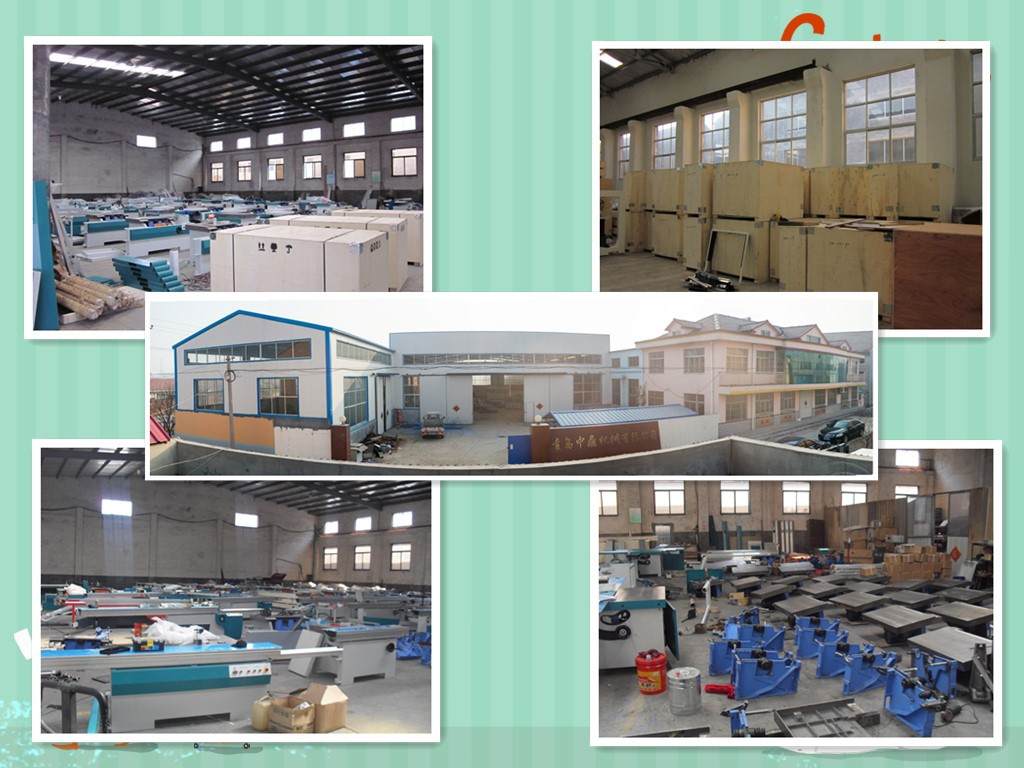

Our company:
Qingdao Zhongding Machinery Co., Ltd is professional at manufacturing woodworking machines. Our main products includes: sliding table saw(panel saw), edge banding machine, hydraulic cold press, hot press, carpenter drilling machine ( boring machine), etc. We are factory, we provide the machine with reasonable price and high quality, and welcome to visit our factory and our products.
Qingdao Zhongding Machinery Co., Ltd is a leading company of specializing in manufacturing and exporting woodworking machine, and we are able to offer professional woodworking machines to customers. Our company has professional technology, full range of testing lines and pipelining, and four professional production lines of woodworking machine. It is located by the beachside of the Yellow sea, which is a place of strong competitive power, beautiful natural environment, and easy traffic of air, land and sea transportation.
Our products mainly include Precise Panel Saw, Edge Banding Machine, Multiple Drilling Machine, Press Machine etc., which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, and Australia.
We have established complete sales system. Our company takes the principle of quality first and customer foremost and we are strict with quality control. Meanwhile, we develop and manufacture new products positively, and provide perfect pre-sale and after-sale services. At the same time, our company has got ISO9001 international system certificate and CE security certificate.
Qingdao Zhongding Machinery is looking forward to establish long-term strategic cooperation relationship with you and offer you high quality products and perfect service system.
