| Prod Model: |
CNC-32 |
| The Name: |
Panel Saw |
| Model: |
CNC-32 |
| Dimension Of Sliding Table: |
3200*400mm |
| Gross Weight: |
950kg |
| Gross Cut Capacity: |
3200mm |
| Type: |
Table Panel Saw |
| Layout: |
Horizontal |
| Controlling Mode: |
CNC |
| Automatic Grade: |
Semiautomatic |
| Precision: |
High Precision |
| Certification: |
ISO |
| Color: |
Write |

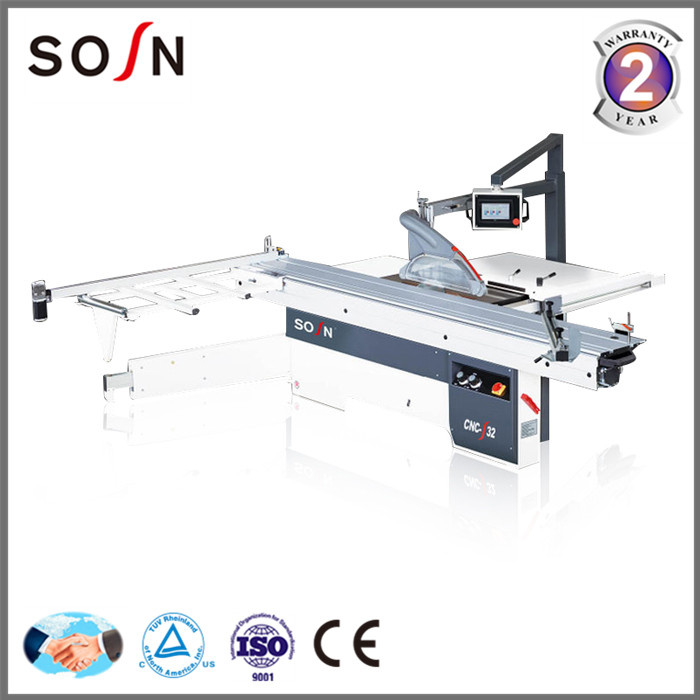

Product Description
| Model | CNC-32 |
| Dimension of sliding table | 3200x430mm(415mm) |
| Gross cut capacity | 3200mm |
| Width of cut between saw blade and rip fence | 1250mm |
| Saw blade diameter | 300(250-400)mm |
| Height of cut (300mm) | 90mm |
| Height of cut with saw blade300mm at45 degree | 60mm |
| Speed of main saw spindle | 4500/6000rpm |
| Main spindle diameter | 30mm |
| Tilting saw blade | 0-45 and 90 degree |
| Main motor | 5.5kw |
| Scoring saw blade diameter | 120mm |
| Speed of scoring saw blade | 7000-8000rpm/min |
| Scoring spindle diameter | 20mm |
| Scoring motor | 1.1kw |
| Gross weight (with wooden package) | 1000kg |
| Overall dimension | 3300*3150*900mm |
| Packing size of the machine body(L*W*H) | 2200*1150*1100mm |
| Packing size of the sliding table(L*W*H) | 3350*480*320mm |
Vedio: https://www.youtube.com/watch?v=JcJChTb17Gk
Details: This CNC panel saw is all automatic except scoring saw and sliding table.
1 Automatic rip fence
2 Automatic down and up(Italy imported Freud brand)
3. Thickened sliding table
4.automatic degree setting
5.scoring saw is manual down and up,use button,turn right and left.
6.CNC control position ruler

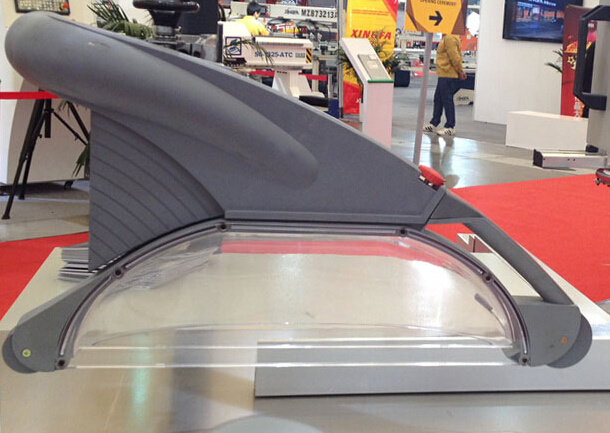

European dust hood

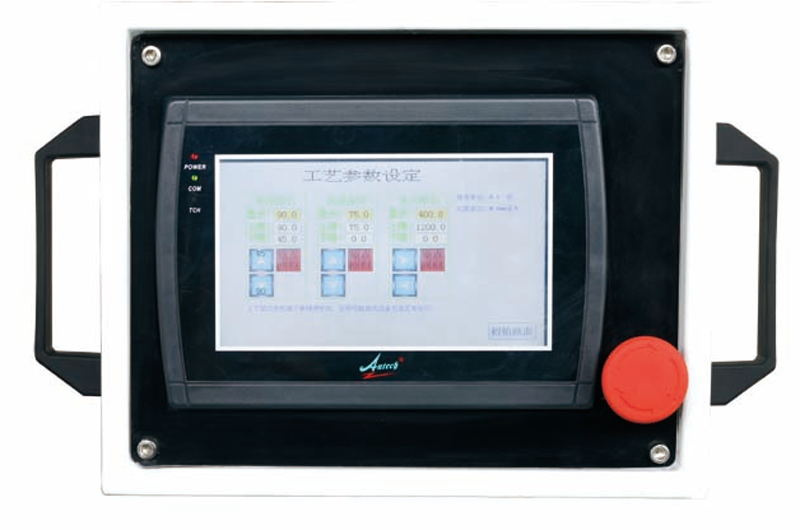

operation panel
Note
1) We offer 1 year warranty for machines main body
2) Machines are with CE certification
3) Delivery time is within 20 days after prepayment
4) Price is available within 6 months since the date of offer.
