| Prod Model: |
MJ6128TD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Use: |
Woodworking Wood Cutting |
| Type: |
Table Panel Saw |
| Layout: |
Horizontal |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Manual |
| Precision: |
High Precision |
| Certification: |
ISO |
Product Description
Feature
1). Apply to processing all kinds of density boards, shaving boards, wood-based panels, ABS panels, organic glass plates and solid wood and others with wood structure and similar hardness
2). Movable table guide truck is plating chromium steel bars or balls structure with high rating accuracy, exact and durable. Guide track is optional.
3). Made of high-strength extruded aluminum alloy, movable table is high in strength and won't bend.
4). With electrostatic powder treatment, movable table surface is beautiful and hardwearing.
5). Tilt angle of main and scoring saw blades are displayed directly by precision inclinometer
6). We make the machine aggravating in order to improve equipment stability and is much heavier than ordinary ones and running more stable.
7). The saw axis is equipped with two dynamic balances so it can reduce the shaking and wearing during the processing to protect the machine.
8). High precision and can reach 0.005mm. And the cutting surface is smoother without jagged
9). Our special saw blade has 96 saw teeth. So it can cutting panel smoother.

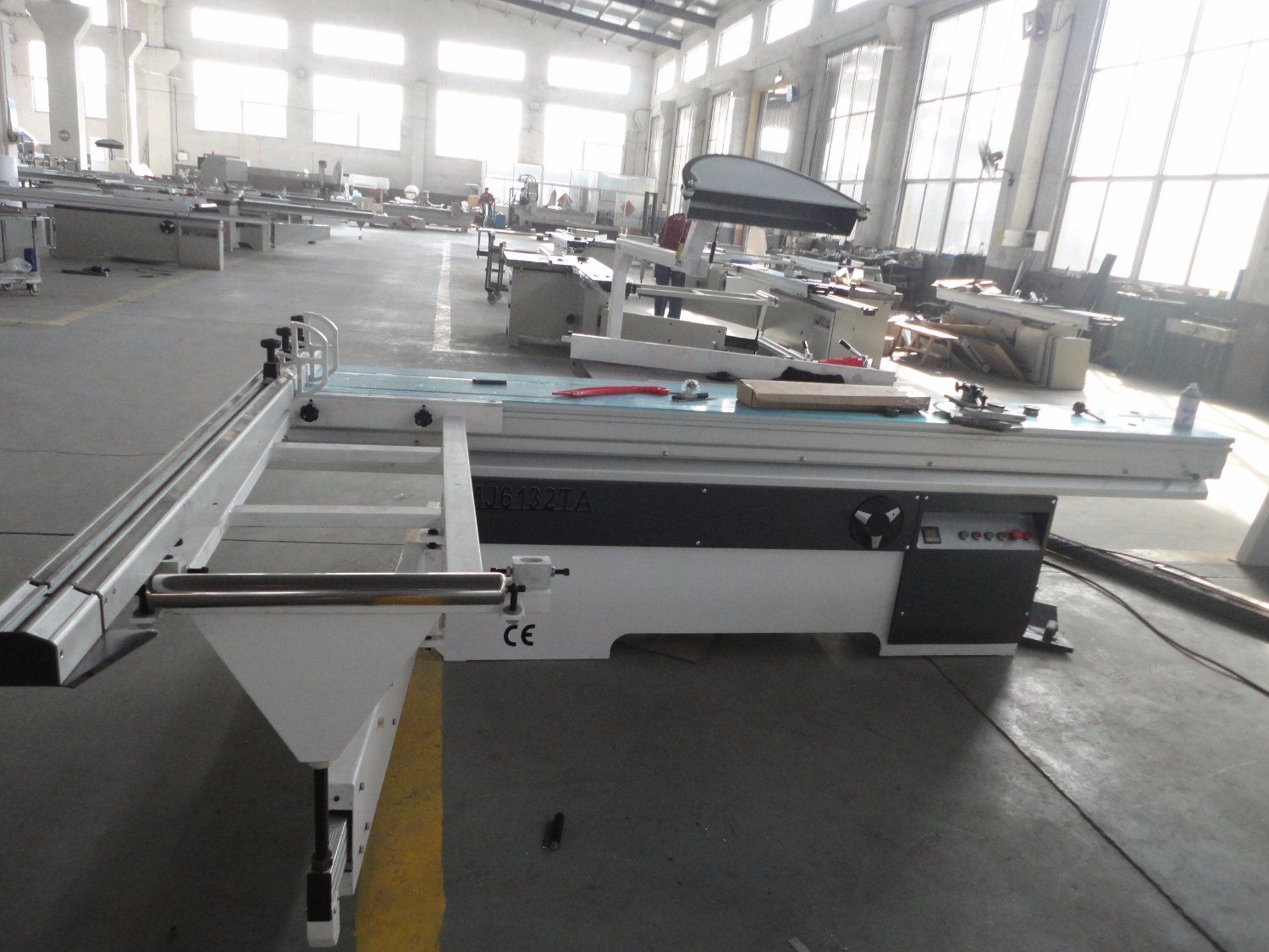

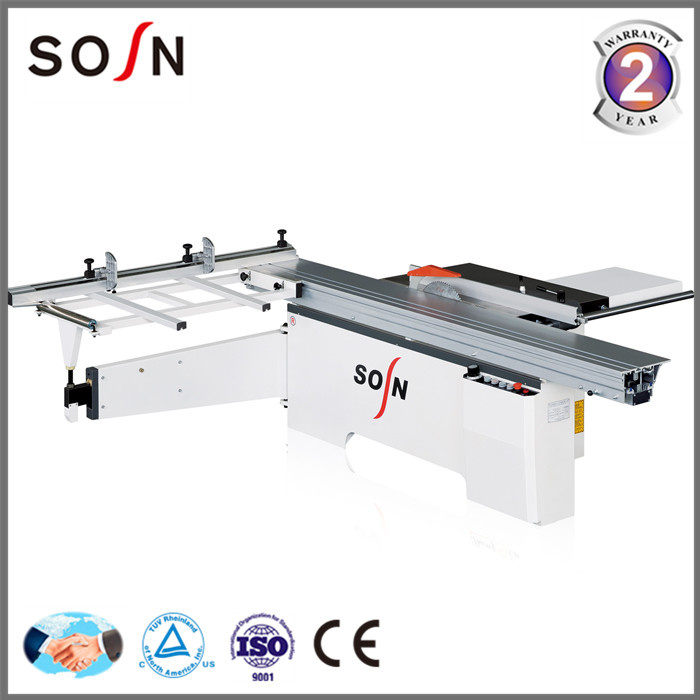

MJ6128TD sliding table saw
1.2800*375mm steel bar sliding table,
2.5.5+1.1kw national standard motor,
3.Heavy-duty type machine,
4.Digital display for the saw blade angle tilting.
Technical parameter
Dimension of sliding table |
2800x375mm |
Gross cut capacity |
2800mm |
Width of cut between saw blade and rip fence |
1250mm |
Saw blade diameter |
250/300/400mm |
Speed of main saw spindle |
4500/6000rpm |
Main spindle diameter |
30mm |
Tilting saw blade |
0-45 degree |
Main motor |
7.5hp |
Scoring saw blade diameter |
120mm |
Speed of scoring saw blade |
7000/8000rpm |
Scoring spindle diameter |
20mm |
Scoring motor |
1.5hp |
Gross weight |
850kg |
Overall Dimension |
2950x3150x900mm |
Our products can be classified as
According to the tilting: 45 degree (T) and 90 degree
According to the structure: Linear (Z), Round rod (D) and Altendrof (A)
The cutting capacity is from 1500mm to 3800mm( usually we have 1600mm, 2200, 2600, 2800, 3000, 3200, 3800mm)
Manual operation, Semi-automatic and automatic precision panel saw.
Take
Honesty as base
Quality as life
Innovation as subject
Development as theme
The member of China National Forestry Machinery Association
NOTE:
1. We can arrange shipment for you if you need.
2. We guarantee the machine body for one year, three months for easy-broken parts.
3. Package: standard export wooden cast package.
4. Delivery time:20 days after getting the deposit (depends on the quantity)
Reasons to choose SOSN:
1: professional team--as much as possible to meet your needs
2: quick delivery--timely and effective
3: excellent after-sale services--no worries anymore
4: friendly partner relationship--a win-win cooperation
Anything I can do here for you,pls feel free to let me know.
It's my pleasure to serve you !

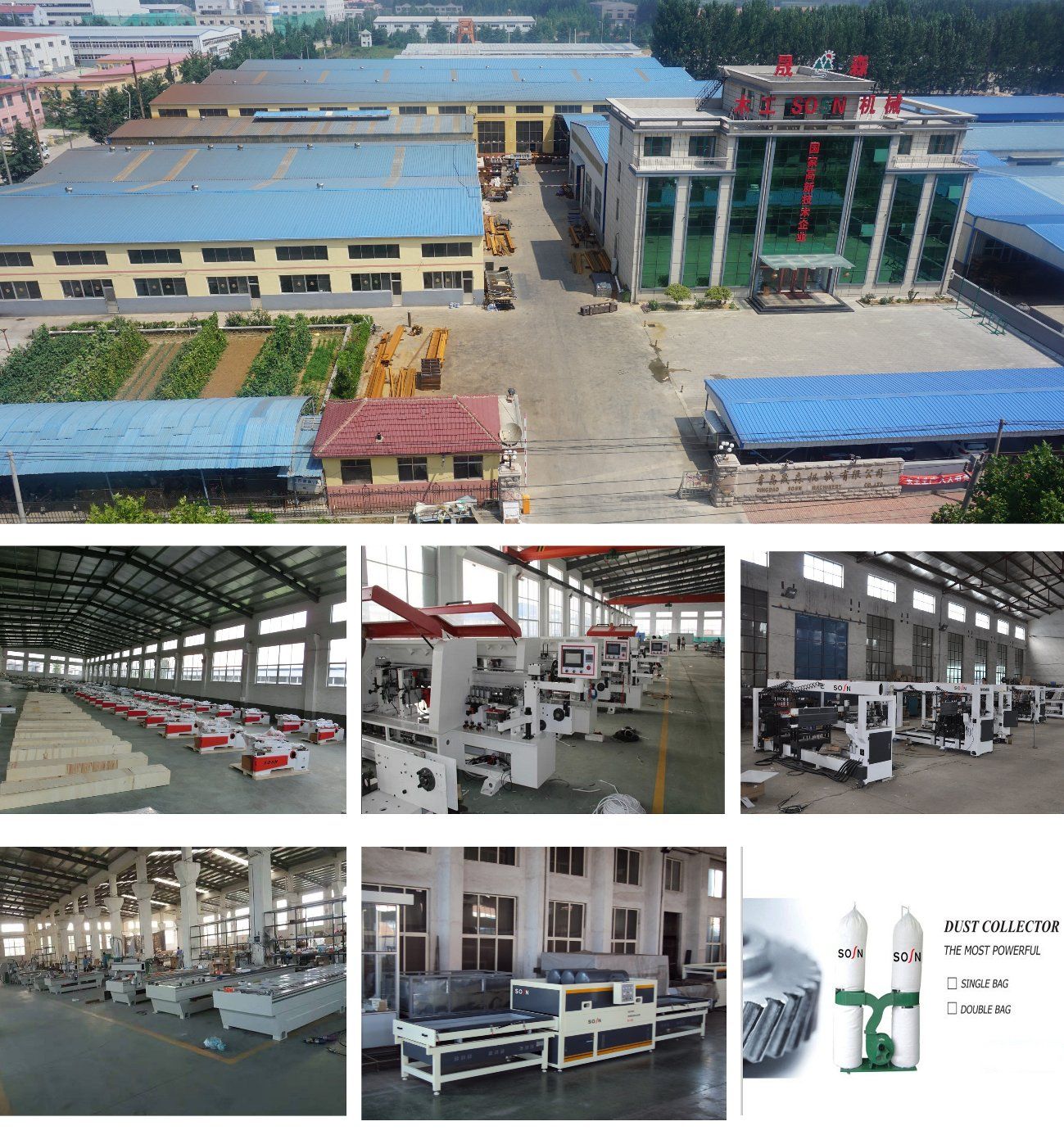

Qingdao SOSN Machinery Co., Ltd., Is the science and technology knowledge-intensive enterprises which is specialized in the production of woodworking machinery equipment and gathers the research, development, production, sales and service together. The leading products of woodworking products are CNC router, panel saw series, sanding machine series, woodworking drill platoon, vacuum laminating machine, edge banding machine, computer engraving machine and the other seven series and over sixty standards.
