Woodworking Machinery Digital Panel Saw for Making Furniture
| Price: |
US $ 3000-3500/Piece |
| Trade Terms: |
VESSLE |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
MJ61-32TAY |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| The Machine: |
Digital Panel Saw |
| The Size Of Sliding Table: |
3200*400 mm |
| Max. Cutting Length: |
3200 mm |
| The Tilting Of Saw Blade: |
0-45 Tilting |
| The Power: |
5.5kw +1.1kw |
| The Diameter Of Main Blade: |
300-400 mm |
| The Diameter Of Scoring Blade: |
120 mm |
| Type: |
Table Panel Saw |
| Layout: |
Horizontal |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Manual |
| Precision: |
High Precision |
| Certification: |
ISO |
Product Description

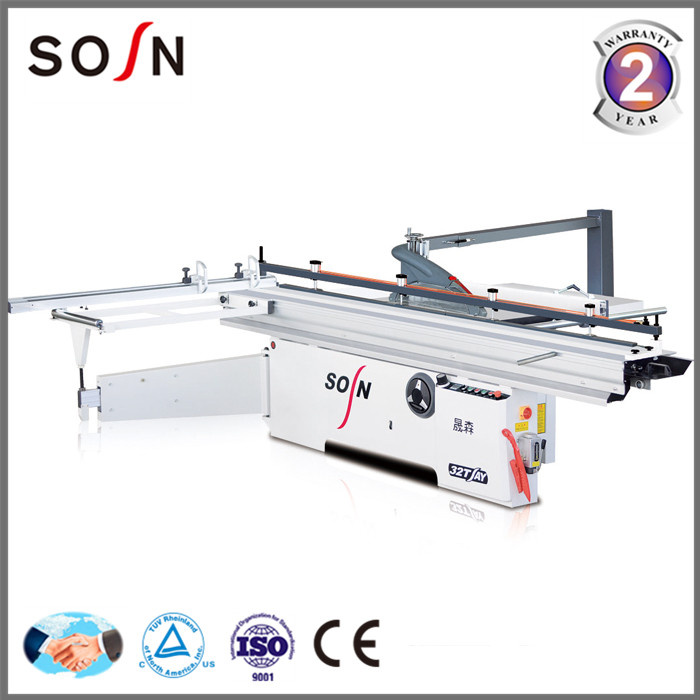

Woodworking machinery Digital Panel Saw for making furniture MJ61-32TAY
Feature: - Sliding table guide track is plating chromium steel bars structure, exact and durable
- Sliding table have multi-point locking, improving working efficiency greatly.
- With oxidation treatment, movable table surface is beautiful and hard wearing

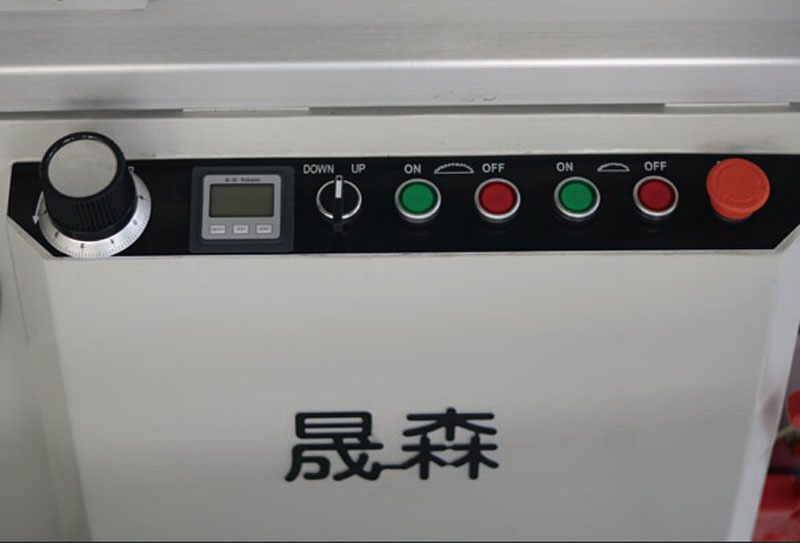

- Blade up&down movement by electric control., tilting 0-45 degree and digital readout
1.electrics:CHINT brand 2. Motor 5.5+1.1kw, with copper wire and aluminum case 3.fixed points on the machines to make sure the no changable 4.dynamic balance 5. Much heavier 6.can design as your need 6. With big dust cover as Altendorf| Main technical parameter for MJ61-32TAY |
| Dimension of sliding table | 3200x400mm |
| Gross cut capacity | 3200mm |
| Width of cut between saw blade and rip fence | 1250mm |
| Saw blade diameter | 300mm(250-400mm) |
| Height of cut (300mm) | 80mm |
| Speed of main saw spindle | 4500/6000rpm |
| Main spindle diameter | 30mm |
| Tilting saw blade | 0-45-90° |
| Main motor | 5.5kw 380V , 50HZ, Three phases |
| Scoring saw blade diameter | 120mm |
| Speed of scoring saw blade | 8000rpm |
| Scoring saw diameter | 20mm |
| Scoring motor | 1.1kw |
| Net weight | 850kgs |
| Overall dimension | 3250x3150x900mm |
The main parts of digital panel saw MJ61-32TAY:

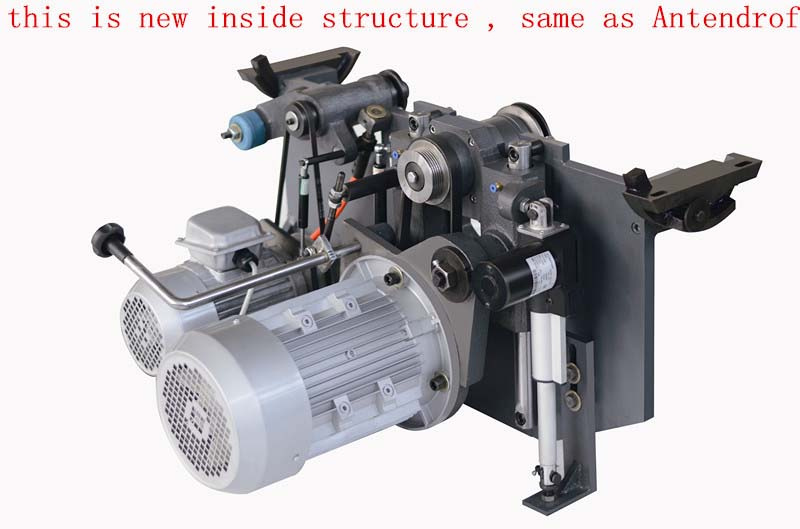

New inside structure, cylindrical inner structure

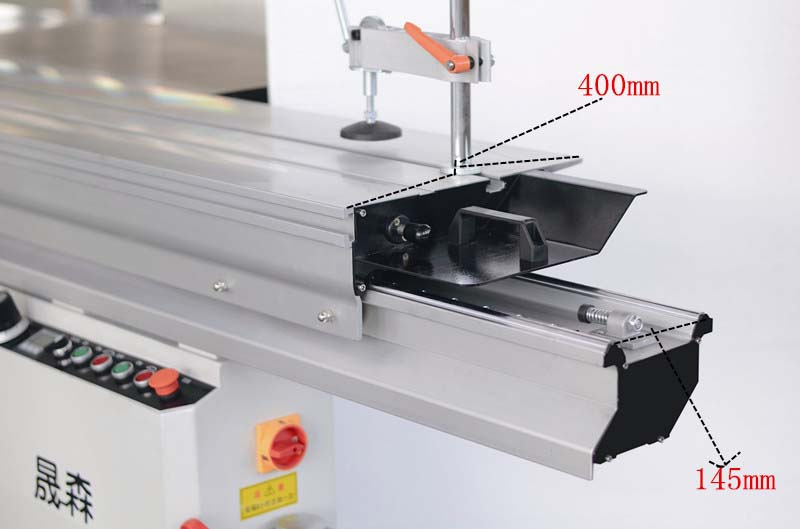

3200*400 mm sliding table, inner width is 145 mm
electric lifting of main blade
Have any need, pls feel free to contact us
Qingdao SOSN Machinery Co., Ltd., Is the science and technology knowledge-intensive enterprises which is specialized in the production of woodworking machinery equipment and gathers the research, development, production, sales and service together. The leading products of woodworking products are CNC router, panel saw series, sanding machine series, woodworking drill platoon, vacuum laminating machine, edge banding machine, computer engraving machine and the other seven series and over sixty standards.
SOSN company pursues the tenet of taking honesty as base, quality as life, innovation as subject, and development as theme; Abides by the quality promise to customers; Pays attention to personnel training and introduction; Closely connects and cooperates with scientific research institute; Owns strong technical strength and perfect testing measures; Gathers the advanced technological superiority and precise production equipments together; Has a number of technical staffs who are specialized in the production of woodworking machinery and have deep comprehend and experiences about woodworking machinery, panel saw and the other products. All of these guarantee the high quality and capability of woodworking machinery.
We develops the new products continuously which are sold across the country and to Russia, Ukraine, Middle-East, South Africa, Southeast Asia, Central Europe and the other countries and areas. We have earned the trust of customers and our product process is in the leading level among the same industry of domestic.
SOSN main product,
CNC Router
Panel saw/sliding table saw(manual, electric, digital, CNC, more than 30 kinds)
Edge banding machine: Manual, semi-automatic, full automatic
Boring/Drilling machine
Belt sanding machine
Dust collectors
Solid wood processing machine: Thicknesser and planer, mortiser, band saw, etc
For our every set machine, we have QC to test before sending to our customers, They are experts in the field of woodworking machinery. Because of this, we can keep the quality good and stable for our customers.
High quality, competitive price, good service and regular supply is always we can promise to our every customer, SOSN woodworking machinery is your best choice!
You are warmly welcome to join us in this business line to have a Win-win situation!
