| Prod Model: |
RTJ45B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Delivery Time: |
15 Days |
| Type: |
Table Panel Saw |
| Layout: |
Horizontal |
| Automatic Grade: |
Automatic |
| Precision: |
High Precision |
| Certification: |
SGS |
| Controlling Mode: |
PLC |
Product Description

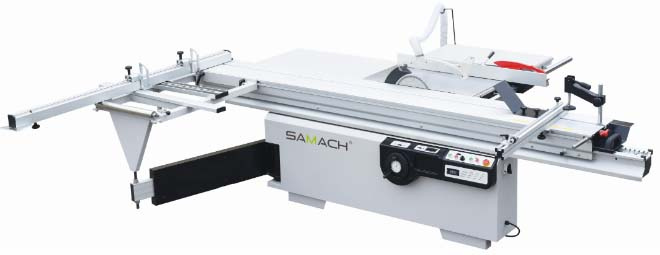

Sliding Panel Saw RTJ45B
The machine is suitable for processing all kinds of density board and particle board,ABS board,PVC board,organic glass plate and solid wood etc., that the hardness is similar board.
Specification:
1. Material dam-board: with high-precision, flexible movement and easy operation.
2. Movable workbench: it is linear steel pole guide way with high-precision, flexible and wear resistance.
3. Main saw blade and groove saw blade: angle of inclination is shown by the precision goniometer.
4. Machine core components: using pole guide way, makes the machine with high-precision and longer lifespan.
5. Control Panel: angle of inclination is shown by the precision goniometer.
6.Suction hood: Suction hood makes the machine with a reasonable structure and strong power for suction.
8.Standard parts: material dam-board, eccentric swage, material guide-board.
9.Accessory rack: is made of precision aluminum alloy material, dimensions appear intuitive, 90°quick location lock.
Parameters:
| Model | RTJ45B |
| Main motor power | 5.5KW |
| Scoring saw motor power | 0.75KW |
| Diameter & thickness of main blade | 305mm*2.5mm
(350-250mm) |
| Diameter & thickness of scoring saw blade | 120mm*2.5-3.5mm |
| href="http://cn.bing.com/dict/clientsearch?mkt=zh-CN&setLang=zh&form=BDVEHC&ClientVer=BDDTV3.5.0.4311&q=saw%20spindle" Diameter of main href="http://cn.bing.com/dict/clientsearch?mkt=zh-CN&setLang=zh&form=BDVEHC&ClientVer=BDDTV3.5.0.4311&q=saw%20spindle" saw href="http://cn.bing.com/dict/clientsearch?mkt=zh-CN&setLang=zh&form=BDVEHC&ClientVer=BDDTV3.5.0.4311&q=saw%20spindle" spindle | 30mm |
| Diameter of scoring saw spindle | 20mm |
| Speed of main saw spindle | 4500,6000rpm |
| Speed of scroing saw spindle | 7000rpm |
| Saw blade tilting angel | 45°~90° |
| Max height of cutting | 3200mm |
| Max thickness of cutting | (350)107mm/75mm |
| Worktable height | 870mm |
| Worktable size | 900mm*570mm |
| Auxiliary worktable size | 900*710mm |
| Front auxiliary worktable size | 570*1000mm |
| Sliding table size | 3200mm*375mm |
| Dust inlet size | φ100 |
| Net weight | 605 kg(650) |
| Packing size of main engine | 2080*1100*1010mm |
| Packing size of sliding table | 3400*420*280mm
|
QingDao Samac International Trading Co., Ltd. Specializes in the export of woodworking, glass processing, metal processing and Stone Processing machinery. Our woodworking machinery series is mainly used to process real wood, wooden plates, plywood and related types of wood.
Since the foundation of our company, we have always introduced first-class Chinese machinery to the entire world. We cooperate with many local famous factories on R&D to keep in pace with this modern world. Our company aims to help our customers select the best quality and most suitable products for their needs. Simultaneously, we also undertake OEM/ODM projects which can satisfy customers' special requirements.
Quality: We are scrupulous about every detail, professional QC and strict checking porcedure ensure our work and guarantee eac machine which is in it's best presentation. All our goods pass through our rigid quality control before shipment.
With high-quality products, powerful strength, a professional team and excellent after-sales service, we have gained a good reputation among our customers. It is our sincere desire to develop more customers' business through trustworthy cooperation.
