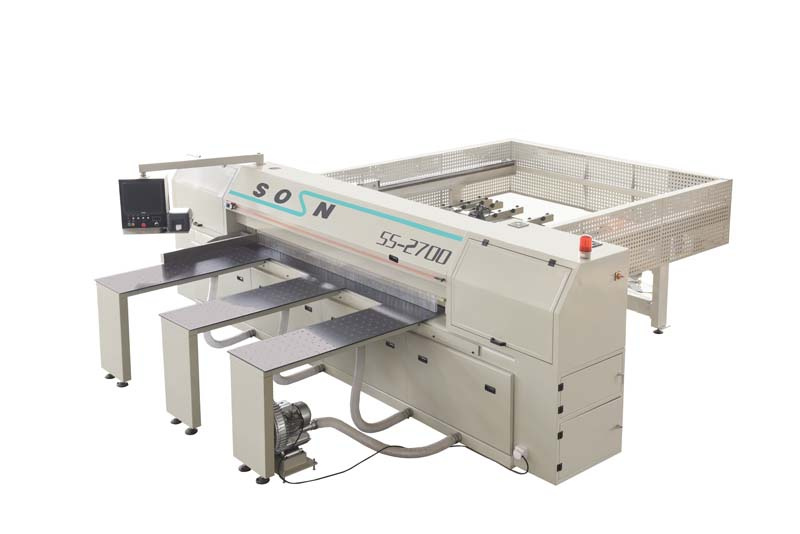

| Prod Model: |
SS-2700 |
| Max. Cutting Length: |
2700mm |
| Max. Cutting Width (Depth): |
2700mm |
| Max. Cutting Height: |
100mm |
| Max. Gripper Opening: |
105 mm |
| Max. Sawblade Projection: |
105 mm |
| Main Sawblade Motor: |
15HP (11.2kw) |
| Main Sawblade Diameter: |
405 mm |
| Scoring Sawblade Speed: |
6, 800 r.p.m. |
| Saw Carriage Drive Motor: |
2HP (1.5kw)(Inverter) |
| Forward Speed(Adjustable): |
0~45 M/Min |
| Type: |
Table Panel Saw |
| Layout: |
Horizontal |
| Controlling Mode: |
CNC |
| Automatic Grade: |
Semiautomatic |
| Precision: |
High Precision |
| Certification: |
ISO |
Product Description
We are a professional manufacturer in the line of woodworking machinery for 16 years.With CE certification,our products are popular and sell well in many countries and regions, like,Iran,Russia,Brazil, EN, the whole America , and so on. Time has tested the quality of our products and the good credit of our company. Now there are still many large orders send to us every day from far away.
Our company purpose:"credit first, customer supreme" to the quality and development. Welcome to our company for visiting, learning ,teaching, negotiating, and cooperating
Parameters
| MODEL | SS-2700 |
| CAPACITY | Max. cutting length | 2700 mm |
| Max. cutting width (depth) | 2700 mm |
| Max. cutting height | 100 mm |
| Max. gripper opening | 105 mm |
| Max. sawblade projection | 105 mm |
| MAIN SAWBLADE | Main sawblade motor | 15HP (11.2KW) |
| Main sawblade diameter | Ø405 mm |
| Spindle diameter | Ø 1"or Ø30mm |
| Main sawblade speed | 4,800 R.P.M. |
| SCORING SAWBLADE | Scoring sawblade diameter | Ø176 mm |
| Spindle diameter | Ø 1"or Ø30mm |
| Scoring sawblade speed | 6,800 R.P.M. |
| SAW CARRIAGE | Saw carriage drive motor | 2HP (1.5KW)(Inverter) |
| Forward Speed(adjustable) | 0~45 M/min |
| Return Speed | 70 M/min |
| PUSHER | Pusher system drive motor | 1KW |
| Pusher system pull speed | 5~70 M/min |
| Pusher system push speed | 5~60 M/min |
| OTHERS | High pressure blower motor | 3HP (2.2KW) |
| Side aligner motor | 90W |
| Working air pressure | 5~6 kg/cm2 |
| Table height from floor | 880 mm |
| Grippers | 9 units |
| Floating table | 3 units |
| Voltage | 220V | 380V | 415V | 440V | 575V |
| Hertz | 50HZ/60HZ | |
| | Net weight | 4700kg | |
| Gross weight | 5300Kg | |
Should you have any need of the machine , please feel free to contact with me

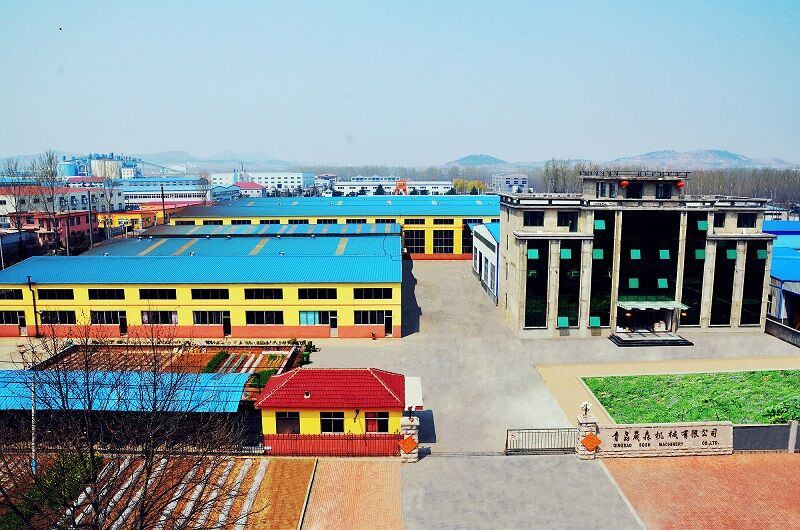

Qingdao SOSN Machinery Co., Ltd., Is the science and technology knowledge-intensive enterprises which is specialized in the production of woodworking machinery equipment and gathers the research, development, production, sales and service together. The leading products of woodworking products are CNC router, panel saw series, sanding machine series, woodworking drill platoon, vacuum laminating machine, edge banding machine, computer engraving machine and the other seven series and over sixty standards.
