| Prod Model: |
XZ320D |
| Efficiency: |
160kw |
| Weight: |
12000kg |
| Pipe Length: |
3m |
| Piling Speed: |
20m/Min |
Product Description
Our company will offer you the high quality products with a low price, quick delivery,and professional after-sale service.

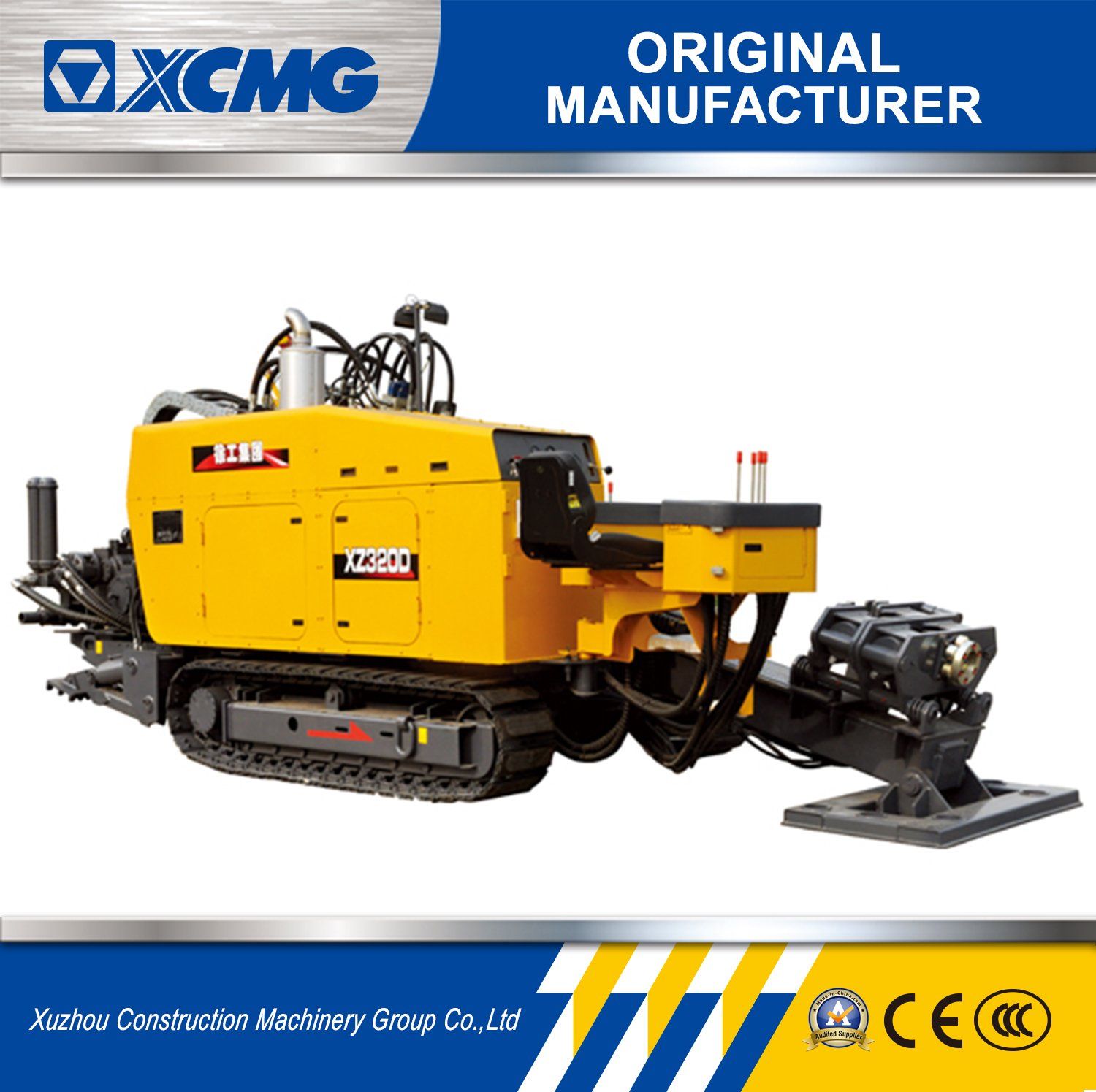

XCMG Xz320d 153kw Power Horizontal Directional Drilling Drill Machine
[Product Description]
XZ320D horizontal directional drilling machine structure is compact, aesthetically pleasing, adopted a number of advanced control technology and the company's proprietary technology, main performance parameters and control technology reached the international advanced level.Hydraulic system, electrical system, transmission system choose brand name products at home and abroad, the main components such as high reliability.
Cummins (153KW) engine, 320kN of thrust-pull force, 12000N·m of Max.spindle torque, dual speed power head, self-propelled steel tracks chassis with rubber, floating clamp,high strength box-type drilling frame, rotatable control board,onboard 320L/min mud pump,machine transport can use container,attached is option menu.
[Product Parameter]
| Model | XZ320D |
| Engine | CUMMINS |
| Rated power | 160/140kW |
| Push-pull | Rack and pinion |
| Max.pullback/thrusting | 320/320kN |
| Spindle torque(max) | 12000N.m |
| Spindle speed | 0~140r/min |
| Travelling speed of power head | 20m/min |
| Backreaming diameter | Φ800mm |
| Pipe length(single) | 3m |
| Pipe diameter | Φ73mm |
| Entry angle | 10-20° |
| Mud flow ratw(max) | 320L/min |
| Mud pressure(max) | 80bar |
| Overall weight | 11500kg |
| Dimension(LxWxH) | 7100x2250x2450mm |
| Model | XZ320D |
| Engine Manufacturers | CUMMINS/Shangchai |
| Engine power rating | 160/140 kW |
| Push-Pull Mode | Pinion and Rack |
| Drag/feed back | 320/320kN |
| Power head maximum torque | 12000 N.m |
| Power head rotary speed | 0~140 r/min |
| Power head rotary speed | 20m/min |
| Biggest back reaming diameter | Φ800mm |
| Drill pipe length(single) | 3m |
| Drill pipe diameter | φ73mm |
| The angle of the dust | 10-20° |
| Mud maximum flow | 320 L/min |
| Mud maximum pressure | 80 bar |
| Complete machine Weight | 11500kg |
| Length×Wide×High | 7100×2250×2450 mm |
| Name | Manufacturers |
| Engine | Cummins/Shangchai |
| Main pump | TianJin PERMCO |
| Rotary motor | EATON |
| Solenoid valve | Yuci |
| Walking Speed Reducer | Korea dongming |
| Mud pump | Hengtan,Rick |
[Company Information]
Company profile
XCMG is a construction machinery manufacturer with over 70 years of experience. Over the years, we have grown to become the world's most comprehensive construction machinery manufacturer and influential multinational company. In 2015, we rank No.1 in China and No. 5 in global heavy equipment industry.XCMG's construction machinery covers an astonishing range of equipment, including cranes, earth-moving machinery, road machinery, excavators, concrete machinery, mining machinery, piling machinery, lumber machinery, fire-fighting machinery, heavy trucks, sanitation machinery, agricultural machinery, and more. We have the world's most comprehensive product line, and offer customers complete solutions for construction equipment. Our other businesses include finance, leasing, and remanufacturing.
At present, the power of my company's straight-arm crane is entirely from the hydraulic oil pressure, that is, through the high-pressure hydraulic oil to promote the cylinder piston reciprocating motion, or drive the hydraulic motor rotation makes the hydraulic winch and rotary mechanism rotation.
So, how do high-pressure hydraulic oil get? Each truck crane is equipped with a hydraulic pump when the vehicle chassis is matched, and the engine provides power for it. The chemical energy of the fuel can be converted into the crankshaft of the engine to rotate the mechanical energy, and then the gearbox gear is rotated, and then the power is transmitted to the hydraulic pump through the power transmission of the gearbox. Therefore, the hydraulic pump can continuously pressurize the hydraulic oil For the high-pressure hydraulic oil, so as to provide power for the crane to achieve the lifting of the goods.
Competitive Advantage
My company's straight arm crane crane covers 1-25 tons 14 models 65 kinds of products, to meet a variety of conditions, with the longest arm of the largest tonnage crane mature manufacturing technology, scientific research and development process, advanced Research and development technology, and constantly have new products to market, to meet customer use.
My company's boom arm section with mature pentagonal, hexagonal and octagonal, the latest generation of products with U-shaped arc arm body weight reduction, arm width of a large deflection, stability and resistance to deformation Ability to improve, significantly enhance the lifting capacity.
The application of the sub-arm, sub-winch and vice-hook provides a basis for the rapid and large-scale operation of the crane light load and the high-altitude operation. The application of automatic hook technology saves time and effort when starting and ending crane operations, making it easy to operate easily.
Our company will offer you the high quality products with a low price, quick delivery,and professional after-sale service.
FAQ
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,
3: What about the delivery time?
A: 30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs
