XCMG Xz450 45t Power Horizontal Directional Drilling Drill Machine

Prod Model:	XZ450
Efficiency:	194kw
Weight:	13300kg
Piling Speed:	38m/Min
Engine:	6CTA8.3-C260

Product Description

Our company will offer you the high quality products with a low price, quick delivery,and professional after-sale service.

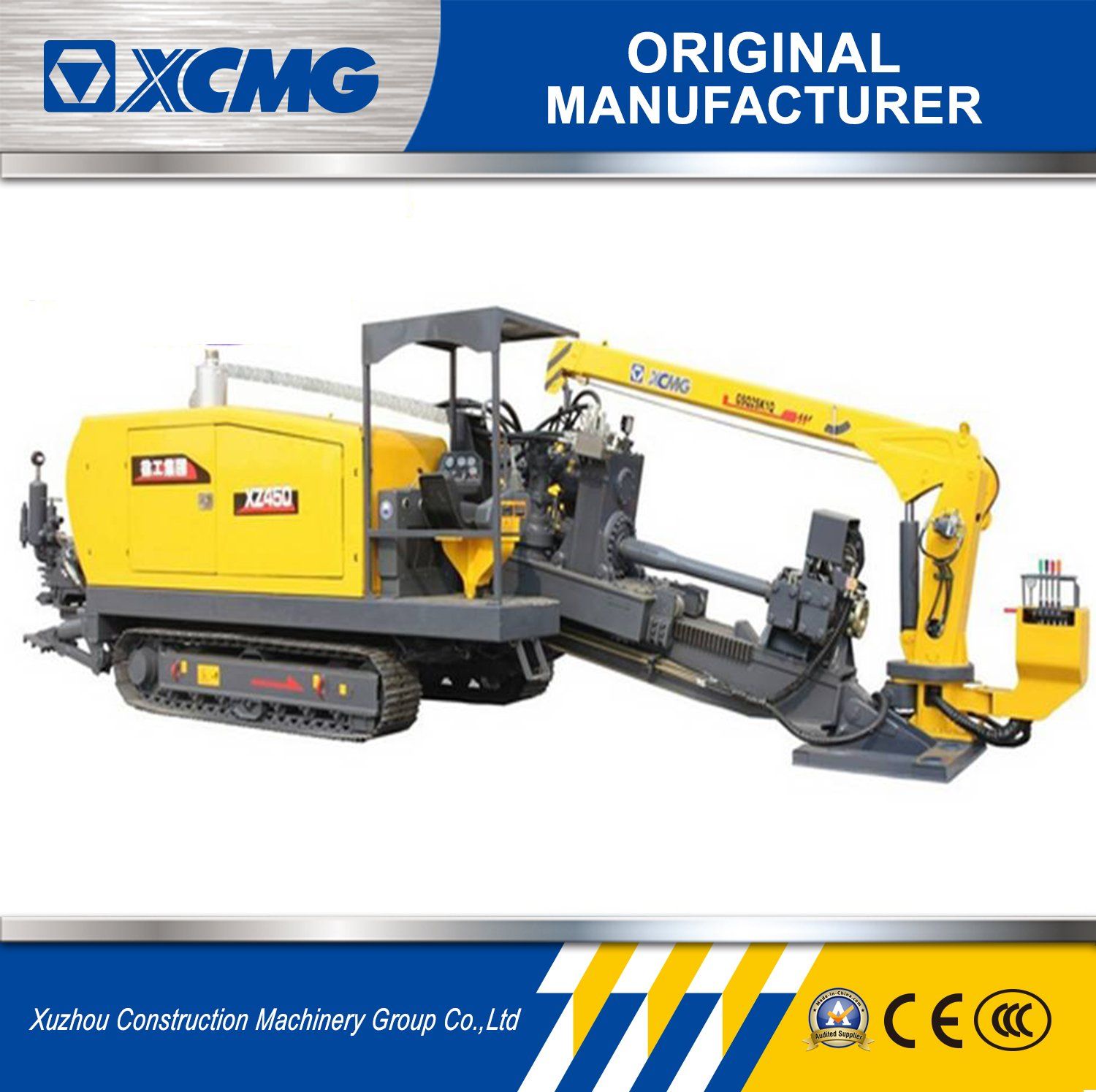

XCMG XZ450 45T Power Horizontal Directional Drilling Drill Machine

[Product Description]

XCMG Official 45T  Power Horizontal Directional Drilling Drill Machine XZ450
XZ450: Cummins (194kW) engine, 480kN of thrust-pull force,23500N·m of Max.spindle torque, self-propelled steel tracks chassis , high strength box-type drilling frame. Imported  rotating  reducer; rack and pinion push-pull, and onboard 450L/min mud pump.

   1. The power head rotation system adopts the closed loop circuit, load sensitive control and electro-hydraulic proportional control, several advanced control technology. The system is efficient, energy conservation, environmental protection, long service life.
    2. Head push-pull system has the load sensitive control, open loop, high efficiency, good reliability.
    3. The power head spline shaft floating can greatly protect the drill pipe thread and improve the service life of drill pipe by 30%.
    4. Choose the international and domestic well-known manufacturers products, main components such as Sauer, Eaton and so on, which ensure that the host has the stable performance and high reliability.
    5. Optiona: power devices. Power head can back to the drag force multiplier and meet customer's special requirements;
    6. Walking wire control ensure the safety of the walking process;
     7. Option: Automatic, semi-automatic pipe loading and unloading device can greatly improve construction efficiency and reduce labor intensity.

 [Product Parameter]

Model	XZ450
Engine	CUMMINS
Rated power	194/2200
Push-pull	Rack and pinion
Max.pullback/thrusting	480kN
Spindle torque(max)	23500N.m
Spindle speed	0~135r/min
Travelling speed of power head	38m/min
Backreaming diameter	Φ800mm
Pipe length(single)	3m
Pipe diameter	Φ89mm
Entry angle	10-20°
Mud flow ratw(max)	320L/min
Mud pressure(max)	80bar
Overall weight	13300kg
Dimension(LxWxH)	8800x2200x2610mm

XZ320D:

Model	XZ320D
Engine	CUMMINS
Rated power	160/140kW
Push-pull	Rack and pinion
Max.pullback/thrusting	320/320kN
Spindle torque(max)	12000N.m
Spindle speed	0~140r/min
Travelling speed of power head	20m/min
Backreaming diameter	Φ800mm
Pipe length(single)	3m
Pipe diameter	Φ73mm
Entry angle	10-20°
Mud flow ratw(max)	320L/min
Mud pressure(max)	80bar
Overall weight	11500kg
Dimension(LxWxH)	7100x2250x2450mm

[Company Information]
Company profile
XCMG is a construction machinery manufacturer with over 70 years of experience. Over the years, we have grown to become the world's most comprehensive construction machinery manufacturer and influential multinational company. In 2015, we rank No.1 in China and No. 5 in global heavy equipment industry.XCMG's construction machinery covers an astonishing range of equipment, including cranes, earth-moving  machinery, road machinery, excavators, concrete machinery, mining machinery, piling machinery, lumber machinery, fire-fighting machinery, heavy trucks, sanitation machinery, agricultural machinery, and more. We have the world's most comprehensive product line, and offer customers complete solutions for construction equipment.  Our other businesses include finance, leasing, and remanufacturing.

At present, the power of my company's straight-arm crane is entirely from the hydraulic oil pressure, that is, through the high-pressure hydraulic oil to promote the cylinder piston reciprocating motion, or drive the hydraulic motor rotation makes the hydraulic winch and rotary mechanism rotation.

So, how do high-pressure hydraulic oil get? Each truck crane is equipped with a hydraulic pump when the vehicle chassis is matched, and the engine provides power for it. The chemical energy of the fuel can be converted into the crankshaft of the engine to rotate the mechanical energy, and then the gearbox gear is rotated, and then the power is transmitted to the hydraulic pump through the power transmission of the gearbox. Therefore, the hydraulic pump can continuously pressurize the hydraulic oil For the high-pressure hydraulic oil, so as to provide power for the crane to achieve the lifting of the goods.

Competitive Advantage
My company's straight arm crane crane covers 1-25 tons 14 models 65 kinds of products, to meet a variety of conditions, with the longest arm of the largest tonnage crane mature manufacturing technology, scientific research and development process, advanced Research and development technology, and constantly have new products to market, to meet customer use.
My company's boom arm section with mature pentagonal, hexagonal and octagonal, the latest generation of products with U-shaped arc arm body weight reduction, arm width of a large deflection, stability and resistance to deformation Ability to improve, significantly enhance the lifting capacity.
The application of the sub-arm, sub-winch and vice-hook provides a basis for the rapid and large-scale operation of the crane light load and the high-altitude operation. The application of automatic hook technology saves time and effort when starting and ending crane operations, making it easy to operate easily.
Our company will offer you the high quality products with a low price, quick delivery,and professional after-sale service.
FAQ
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,
3: What about the delivery time?
A: 30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs
