| Prod Model: |
FY-XLCT |
| Metric Bolt Size: |
16-115mm |
| Metric Nut Size: |
24-155mm |
| Min. Torque: |
232-4188nm |
| Max. Torque: |
2328-41882nm |
| Working Pressure: |
700bar |
| Output Accurancy: |
±3% |
| Warranty: |
2 Years |
| OEM Service: |
Yes |
| MOQ: |
1 Set |
| Power Head Weight: |
0.9-10.4kg |
| Type: |
Torque Wrench |
| Material: |
Aluminum Alloy |
| Standard: |
European Type |
| Surface Treatment: |
Chrome |
| Feature: |
Anti-Magnetic |
| Brand: |
Feiyao |
| Working Mode: |
Hydraulic Automatic |
Product Description
XLCT Series Low Profile Hydraulic Hexagon Wrench / Labour Saving Wrench
Features:1. very high torque to weight ratio
2. High strength aluminum titian alloy material body, light weight, large torque-to-weight ratio.
3. high degree of rotation angle
4. Compact corner radius, more suitable for thr confined areas.
5. high repeatability, with accuracy ± 3%
6. slim nose radius and 360° Swivel hose connection allow easier positioning in confined areas
7. few moving parts means durability and low maintenance
8. Special surface anti-corrosion treatment, suitable for use in harsh environments.

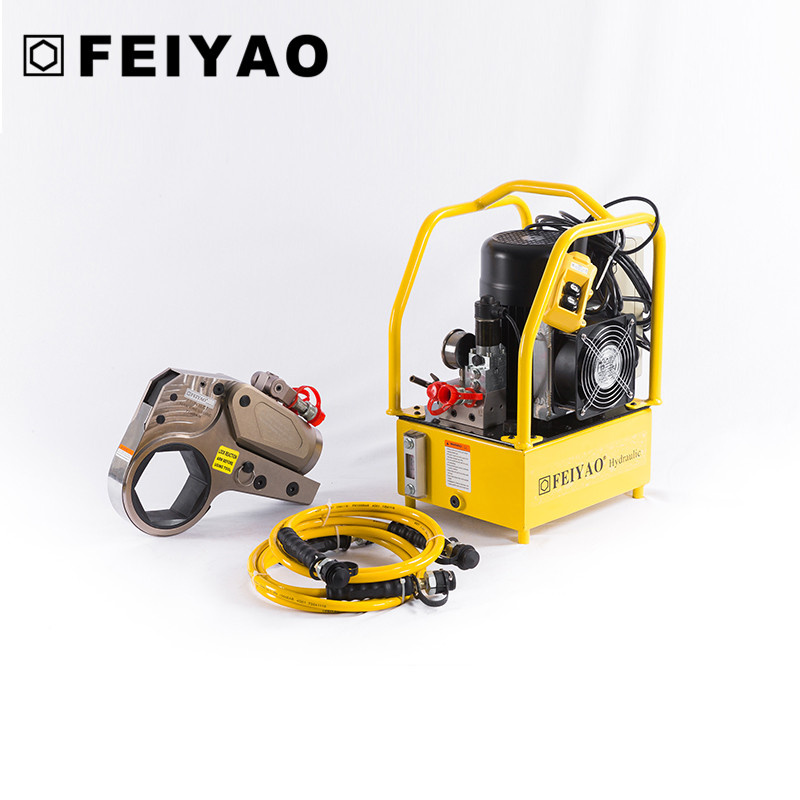

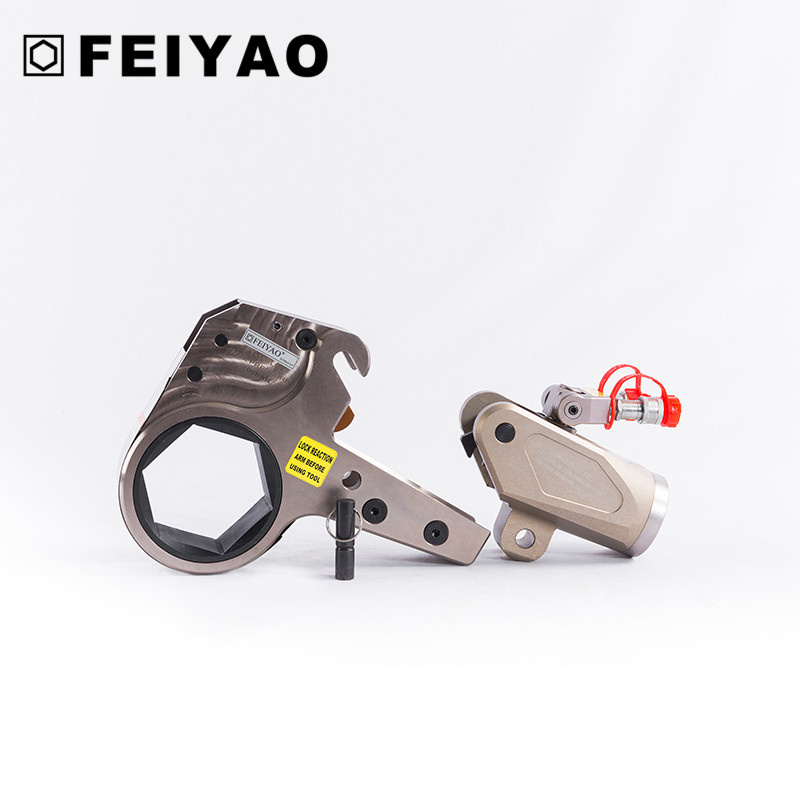

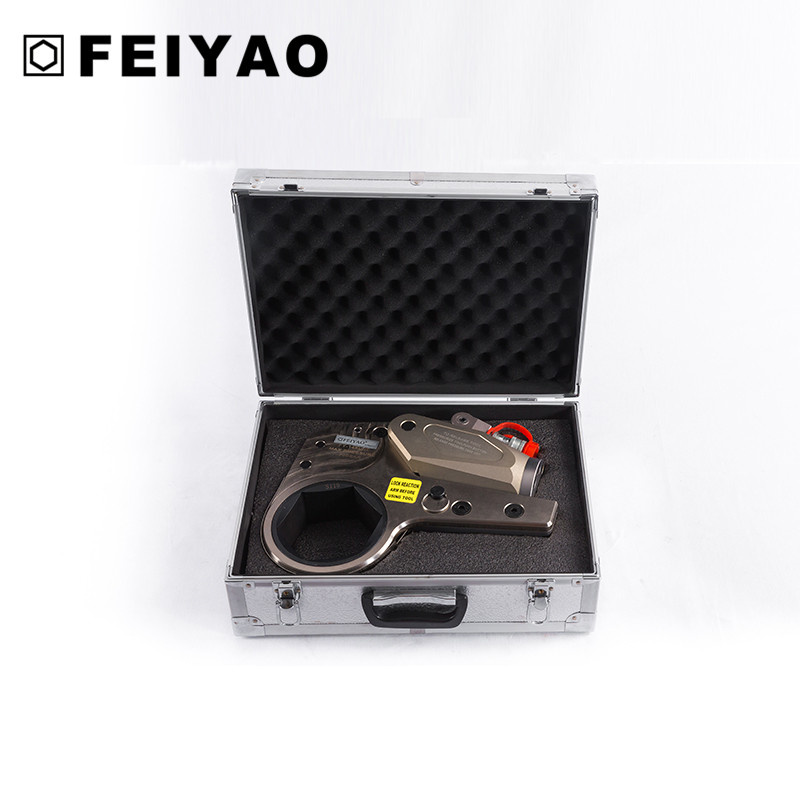

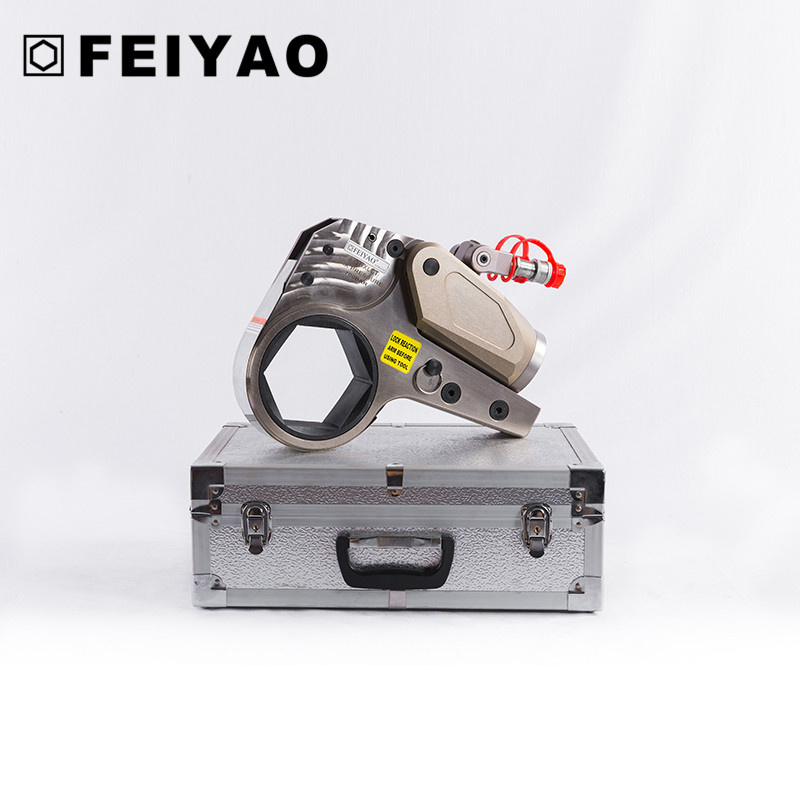

Product Photos:
Parameter Information
Model
| FY-2XLCT
| FY-4XLCT
| FY-8XLCT
| FY-14XLCT
| FY-18XLCT
| FY-30XLCT
|
Torque Nm
| 180~1866
| 440~5328
| 892~ 10168
| 1558~ 17640
| 2430~ 23708
| 3528~ 41880
|
Bolt diameterM(mm)
| 18-33
| 18-42
| 33-60
| 42-80
| 48-95
| 52-110
|
screwS(mm)
| 27~50
| 27~65
| 50~90
| 65~115
| 75~135
| 80~155
|
Rotary head Model
| 2XLCT
| 4XLCT
| 8XLCT
| 14XLCT
| 18XLCT
| 30XLCT
|
Working head model
| 2XLCTA-50
| 4XLCTA-65
| 8XLCTA-90
| 14XLCTA-115
| 18XLCTA-135
| 30XLCTA-
|
Weight(Kg)
| 2.4
| 5.0
| 9.3
| 16.9
| 18.6
| 30.9 |
Products ApplicationOur products have been widely used in industrial field such as steel plant, cement industry, chemical and
refinery, bridge, railway construction and maintenance.
Brief introduction of FEIYAO
Jiangsu Feiyao Machinery Manufacturing Co., Ltd. is a professional hydraulic tools manufacturer with 30-year experience in the design, production, sale and service of Hydraulic Products, Electrical Control Equipment and Mechanical Devices.
Jiangsu Feiyao has been in hydraulic tools industry since 1978. Mainly export:
Hydraulic cylinder jacks (5-1500ton), single double acting, hollow plunger; low height, lock nut;
Hydraulic torque wrenches(100-72000Nm);
PLC synchronous lifting system;
Hydraulic lifting pumps, manual and electric type;
Hydraulic pullers, manual and hydraulic type;
Hydraulic bolt tensioners;
Bearing Induction Heaters;
Hydraulic flange spreader, manual and hydraulic type;
Hydraulic steel wire rope press machine;
Hydraulic accessories(hoses, couplers, oil distributors, etc.)
Over the years we have grown into a diversified market based that now services customers all over the world. We enjoy listening to our customers needs and ideas while working hard to provide the best service and delivering the highest quality of parts.
We believe "service" is our number one customer. We hope our commitment to provide our customers quickly and efficiently with competitive prices will keep you coming back.

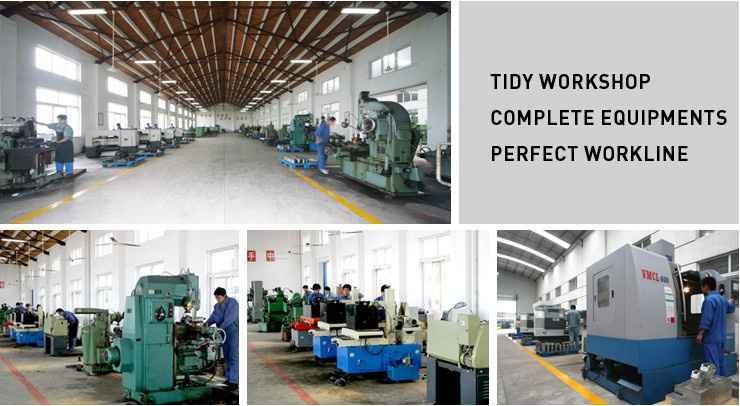

Factory Show
