| Prod Model: |
FY-XLCT |
| Usage: |
Lifting, Supporting and Jacking |
| Structure: |
Piston Cylinder |
| Pressure Direction: |
Single-Acting Cylinder |
| Double-Acting Cylinder Type: |
Common Cylinder |
| Special Cylinder Type: |
Number of Cylinders |
| Combination Cylinder Type: |
Pressurized Cylinder |
| Type: |
Hex Wrench |
| Material: |
Aluminum Alloy |
| Standard: |
European Type |
| Surface Treatment: |
Titanizing |
| Feature: |
Ordinary |
| Brand: |
Feiyao |
| Working Mode: |
Hydraulic Automatic |
Product Description

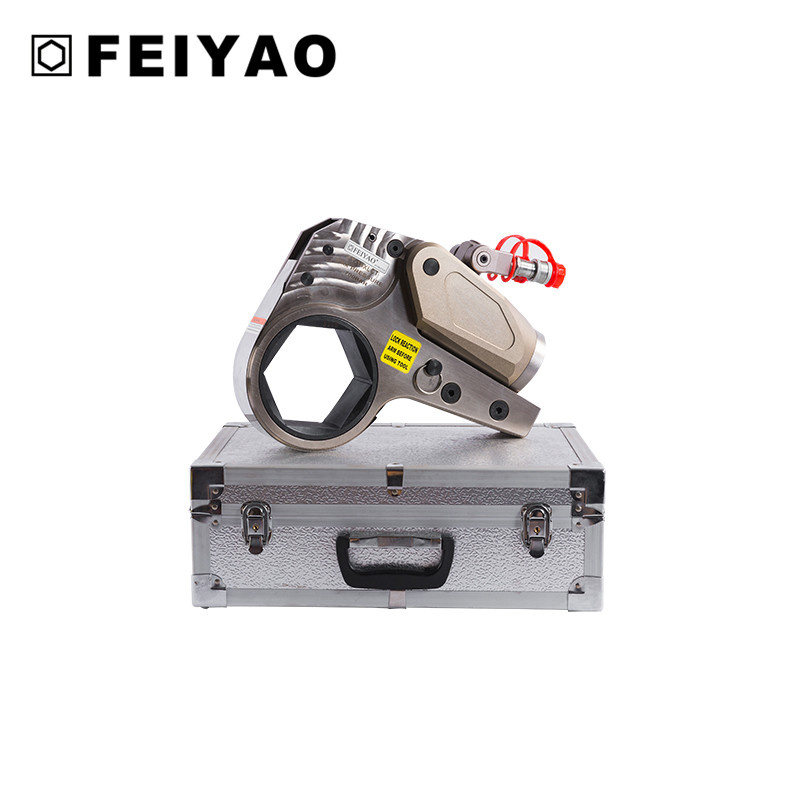

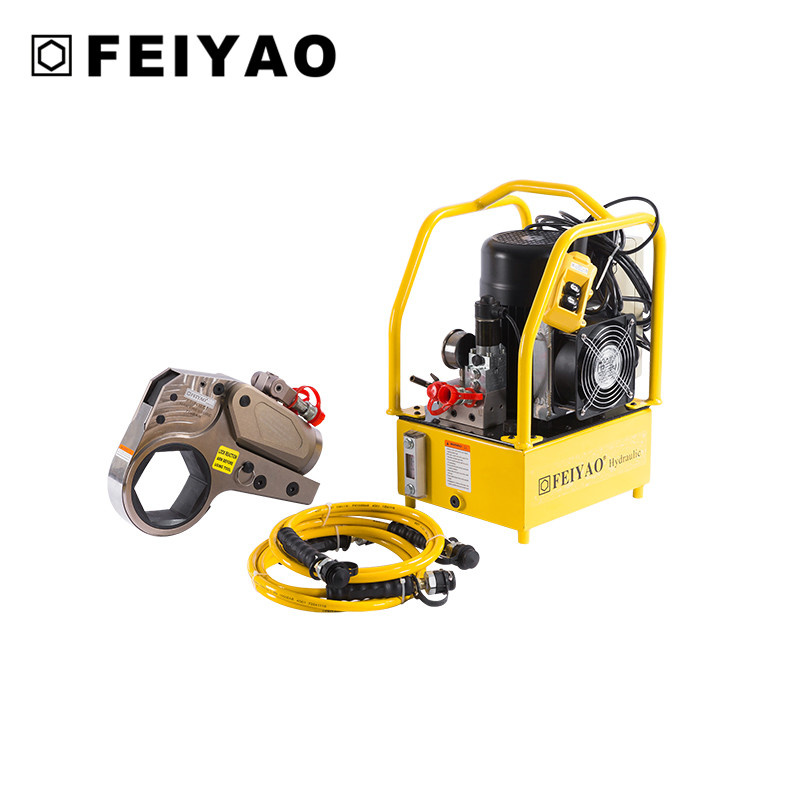

XLCT Series Low Profile Hydraulic Hexagon Wrench
Features:1. very high torque to weight ratio
2. high speed, double acting
3. high degree of rotation angle
4. never jam mechanism
5. high repeatability, with accuracy ± 3%
6. slim nose radius and 360° swivel hose connection allow easier positioning in confined areas
7. few moving parts means durability and low maintenance
8. push button drive release; No tools needed to reverse square or allen key drives for tightening or looseningParameter InformationModel
| FY-2XLCT
| FY-4XLCT
| FY-8XLCT
| FY-14XLCT
| FY-18XLCT
| FY-30XLCT
|
Torque Nm
| 180~1866
| 440~5328
| 892~ 10168
| 1558~ 17640
| 2430~ 23708
| 3528~ 41880
|
Bolt diameterM(mm)
| 18-33
| 18-42
| 33-60
| 42-80
| 48-95
| 52-110
|
screwS(mm)
| 27~50
| 27~65
| 50~90
| 65~115
| 75~135
| 80~155
|
Rotary head Model
| 2XLCT
| 4XLCT
| 8XLCT
| 14XLCT
| 18XLCT
| 30XLCT
|
Working head model
| 2XLCTA-50
| 4XLCTA-65
| 8XLCTA-90
| 14XLCTA-115
| 18XLCTA-135
| 30XLCTA-
|
Weight(Kg)
| 2.4
| 5.0
| 9.3
| 16.9
| 18.6
| 30.9 |

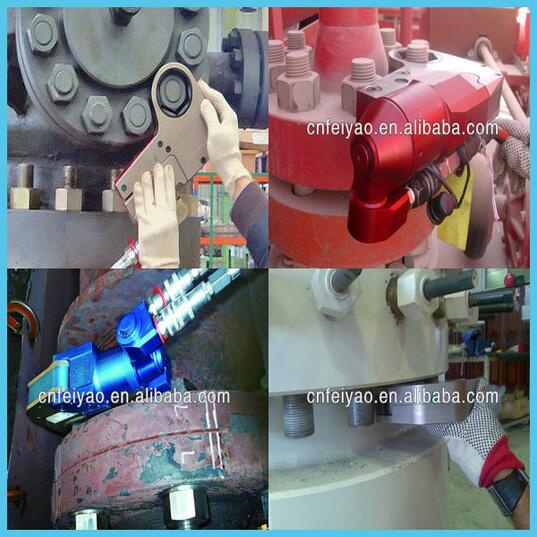

Application AreasOur products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance
Brief Introduction of FEIYAO
Jiangsu Feiyao Machinery Manufacturing Co., Ltd. is a professional hydraulic tools manufacturer with 30-year experience in the design, production, sale and service of Hydraulic Products, Electrical Control Equipment and Mechanical Devices.
Jiangsu Feiyao has been in hydraulic tools industry since 1978. Mainly export:
Hydraulic cylinder jacks (5-1500ton), single double acting, hollow plunger; low height, lock nut;
Hydraulic torque wrenches(100-72000Nm);
PLC synchronous lifting system;
Hydraulic lifting pumps, manual and electric type;
Hydraulic pullers, manual and hydraulic type;
Hydraulic bolt tensioners;
Hydraulic flange spreader, manual and hydraulic type;
Hydraulic steel wire rope press machine
Hydraulic accessories(hoses, couplers, oil distributors, etc.)
Over the years we have grown into a diversified market based that now services customers all over the world. We enjoy listening to our customers needs and ideas while working hard to provide the best service and delivering the highest quality of parts.
We believe "service" is our number one customer. We hope our commitment to provide our customers quickly and efficiently with competitive prices will keep you coming back.
IF YOU ARE LOOKING FOR SOME HYDRAULI JACKS BUT DO NOT HAVE WHOLE SPECS, PLEASE AT LEAST TELL US THREE FACTORS: 1. TORQUE; 2. BOLT DIAMETER OR NUT AF SIZE. WE WILL RECOMMEND THE MOST SUITABLE TYPE FOR YOU.

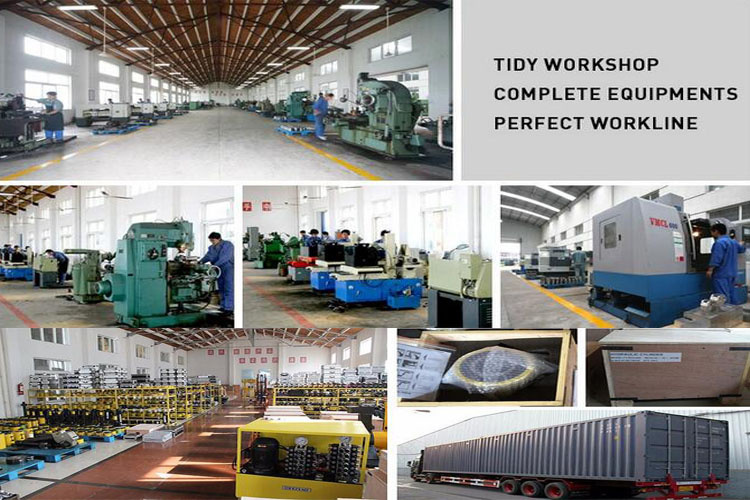

Factory Show & Packaging & Shipping
