Y21 Y23 Yt28 Pneumatic Rock Drill Jack Hammer
| Price: |
US $ 80-100/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
Y23 |
| Type: |
Yt23 |
| Weight: |
23kg |
| Length: |
628mm |
| Drill Hole Dia: |
34mm~42mm |
| Rock Drill Hole Depth: |
5m |
| Working Pressure: |
0.4~0.5MPa |
| Air Pipe Inner Dia: |
25(mm) |
| Water Pipe Inner Dia: |
13(mm) |
| Working Water Pressure: |
0.2~0.3(MPa) |
| Shank Size: |
22X108 (mm) |
Product Description
Product Details::

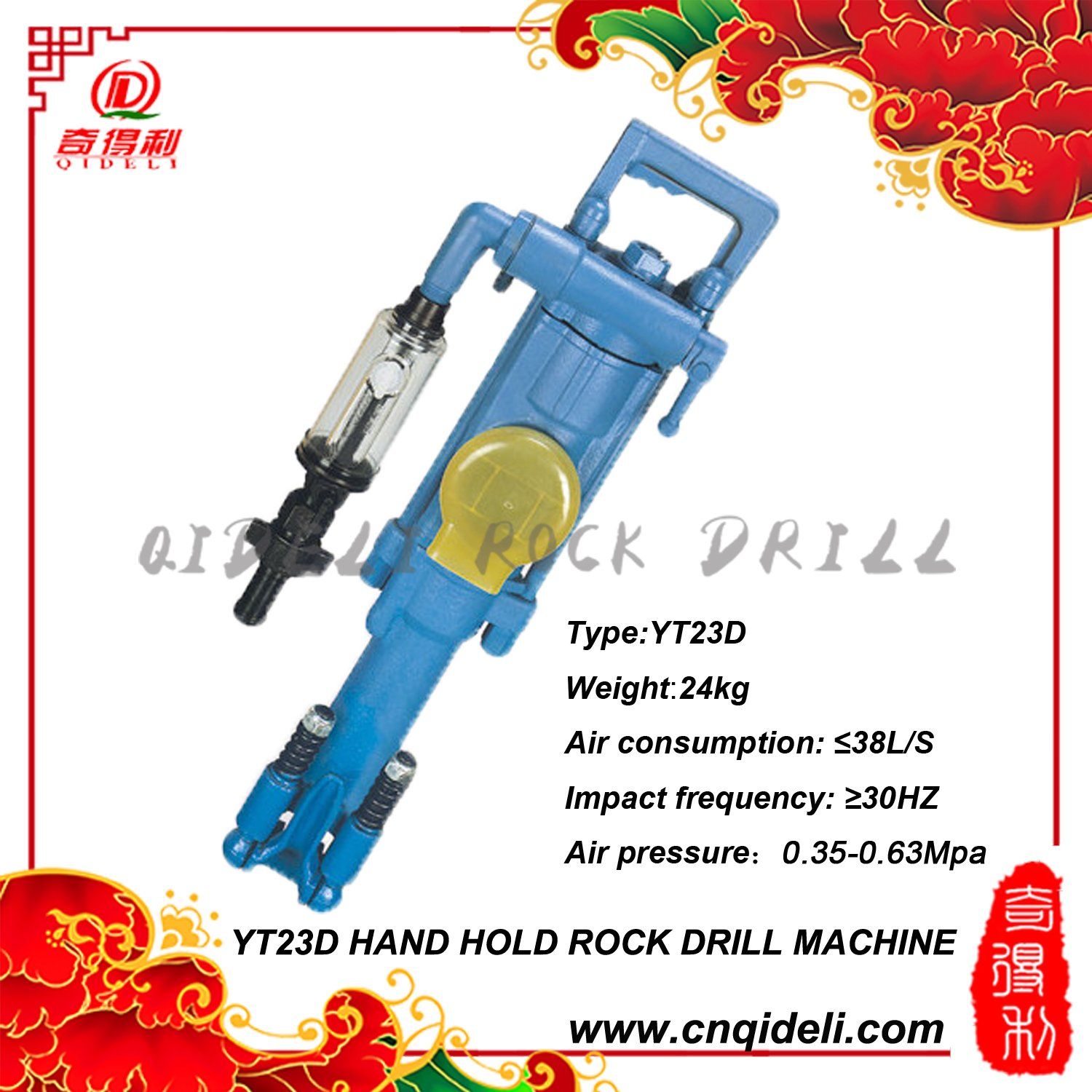

1.The rock drill is a kind of high efficiency air leg rock drill machine. It is widely used for blasting holes and other drilling projects in a quarries, railway construction, water conservancy construction and defence project facility. It is suitable for drill level or gradient holes in medium hard or hard rock(f=8-18). The drilling depth can be five meters. To ensure the well lubricating. This rock drill may match FY200B oil reservior.
Technical Specifications |
Type | YT23 |
Weight | 24 (Kg) |
Shank size | 628 (mm) |
Cylinder dia | φ76 (mm) |
Piston stroke | 60 (mm) |
Working pressure | 0.4~0.5 (Mpa) |
Impact energy | ≥65 (J) |
Impact frequency | ≥33 (Hz) |
Air consumption | ≤80 (L/s) |
Working water pressure | 0.2~0.3 (Mpa) |
Air pipe inner dia | φ25 (mm) |
Water pipe inner dia | φ13 (mm) |
Rock drill hole dia | φ34~φ42 (mm) |
Rock drill hole depth | 5 (m) |
Shank size | 22×108 (mm) |
QIDELI is an engineering company in mining and rock excavation.- We offer THE COMPLETE SOLUTION including drill bits, DTH hammer, drill rods, shank adapters, accessories and added value services. - We offer top hammer equipment for every application, such as underground mining and quarries, road and construction. - We've been involved in the mining industry for 20 years. We look for excellent performance in our products and service. - We provide good quality and better price drill tools, that means excellent hole quality and low-cost drilling for you.DELIVERY
- We can delivery in 2-3 days if we have products in stock, special design and customize products need 20-30 days.
- We can delivery according to customers' requirement, by sea, by air or express. We have long cooperation with DHL, TNT, EMS, UPS, FedEx.
- Standard export packing. Wooden boxes, plastic boxes, carton packing, all with anti-collision foam.

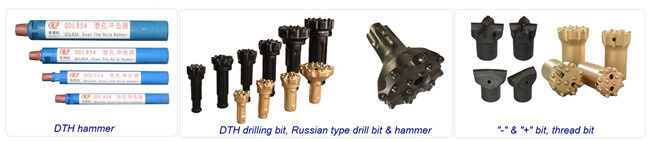

OUR MAIN PRODUCTS
OEM SERVICE
As an original equipment manufacturer, drilling tools from QIDELI meet the highest engineering standards in order to be productive in the toughest working environments.We are continuously improving our service offering to meet the market demand. Please contact us to find out which model is available on your market.Honor: - SGS field certification manufacture. - Directory membership unit of the national industry association.- Having multiple design patent.

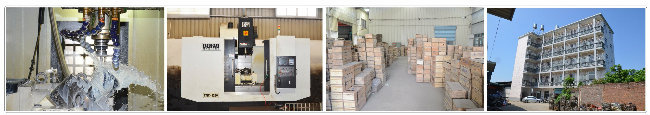

Putian Qideli drilling tools Company was founded in 2010, is specialized in the production and operation of mining drilling tools, research and development-oriented enterprises. 20 years, the production of chisel-bits, cross-bits, button bits, thread bits, PDC bits high and low air pressure DTH bits, DTH hammer, drill rods, etc, are widely used in energy, metallurgy, geology, coal, water conservancy, chemical industry and the mining, road construction, has been unanimously endorsed by the majority of users. Basing on our complete product and excellent quality, We have a certain domestic markets, also export to Russia, Japan, Southeast Asia and other regions alsowhile.
Where there is a will, there is a way. Putian Qideli drilling Tools Company diligently and wholeheartedly committed to drilling tools for mining research and development, with so many years learning of drilling tools for mining, and had attracted many of the domestic first-class drilling technology experts and experienced engineers to work for company, constant Close to the market, in-depth customer technology-LED, market-oriented, the market potential demand for the direction of development, actively planning an enterprise development strategy, focusing on product innovation and grasp the credit markets and technology to enhance the credibility of business products and services, constantly to enhance the core competitiveness of enterprises, in order to enhance the comprehensive advantages of products in the market.
"Continues to provide you with better products", which is the macro Dag keep business purposes, we sill make constant efforts to adhere to yesterday's achievements as a starting point, whole-heartedly to create first-class products and good services for all customers, in order to create the endless space and wealth for all customers.
Putian Qideli drilling tools company is authorizes the registration by the National Related Department the enterprise. Depends on a abundant fund strength, reasonable prices, excellent service, we establish long-term cooperative relationship with lots of enterprises. We are sincerely welcome your visit, investigate, and do business.
In March this year my company has registered a trading company in xiamen China: Xiamen Atlas trading Co., Ltd., this company will be a full range of services in foreign trading. The full import and export qualification for foreign customers with the convenience about import and export of products and services.
