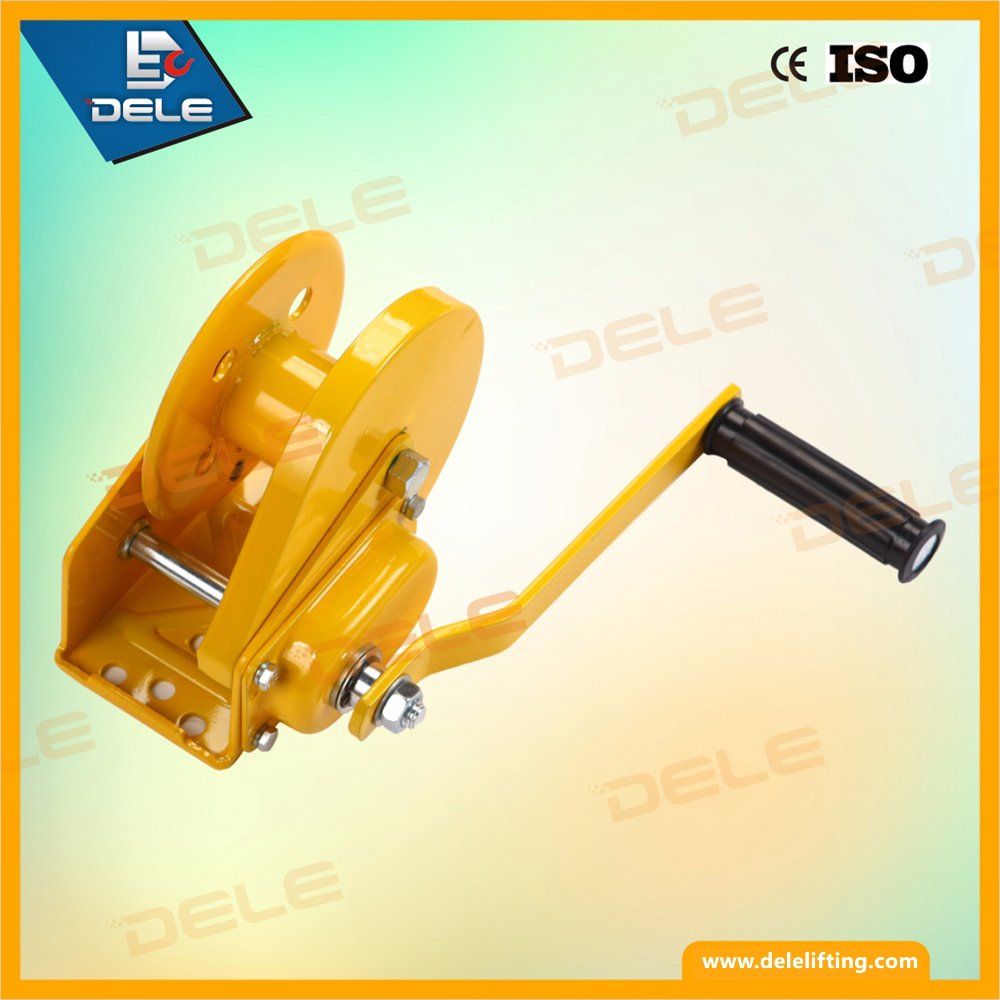

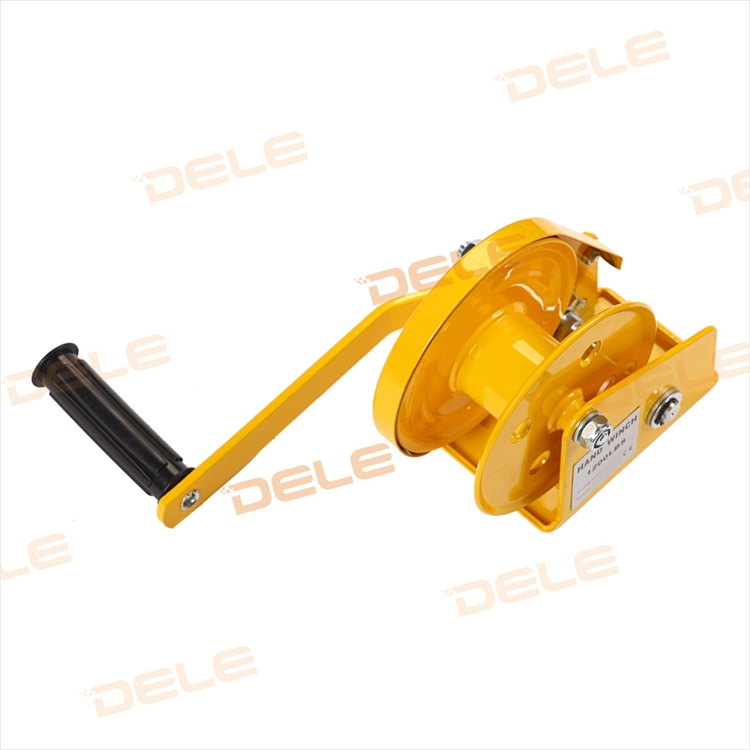

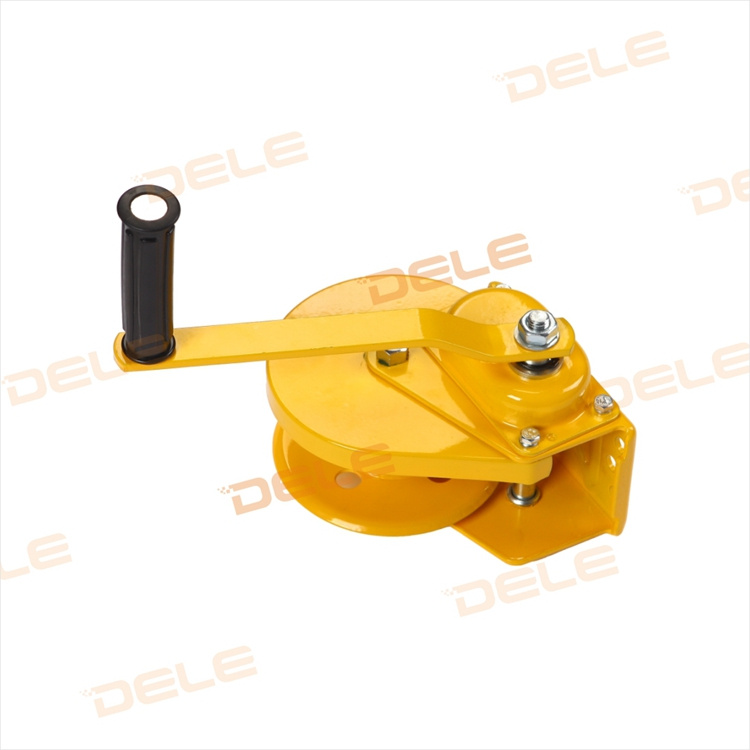

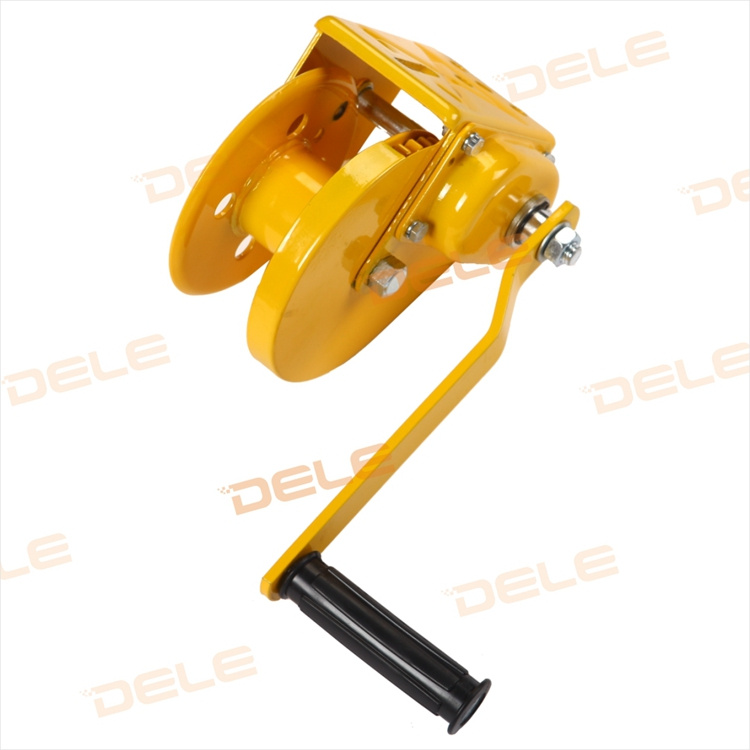

Yellow Colour Cable Series Hand Winch Tool

Name: Yellow Colour Cable Series Hand Winch Tool
Brand: tool-buy.com
SKU: 817052475
Availability: InStock
Rating: 4.8 (116 reviews)

Price:	US $ 11.85-12/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Hangzhou Dele Electrical Co., Ltd.

Showroom Product Company Profile

Prod Model:	hand winch
MOQ:	5pieces
Deliverly Date:	10-15days
Sling:	Wire Rope
Capacity:	1200lbs
Deliverly:	10-2days
Packing Size:	29cm28cm15cm
Type:	Construction Winch
Driven Type:	Hydraulic
Carrying Capacity:	Light Level
Tonnage:	1.5T
Running Mode:	Moving
Standard:	National Standards

Product Description

FEATURES
Multipurpose. Lifting, supporting and hauling goods with crank handle.
Safety and reliability. Easy stop in any position with self- lock.
Lubrication. Factory lubrication before peackaging.
Wear- resistance and durability. Heat- treated transmission shafts and gears.
Reliable surface finish. Powder- coated surface plus zinc- plating for longer corrosion resistance.
the cost-effective solution for a wide variety of applications,XIEBA brake hand winches can be used to pull or lift loads.
positive action brake can hold the load in any position.
compact light weight and rugged construction.
mechanical components enclosed for protection.
rope to drum fixing clamp provided.
avaliable in corrosion resistant grade 304 stainless steel
stainlessmodel available in BHW range.

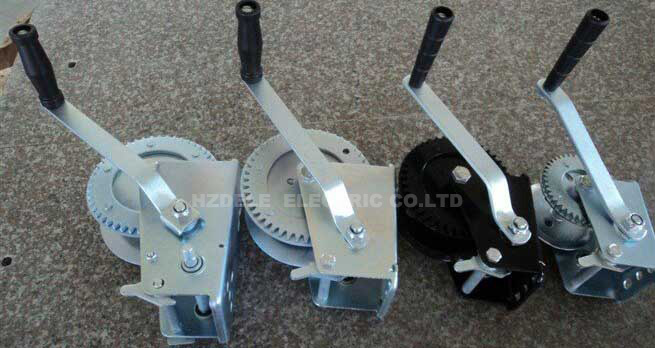

BOAT WINCH W/CABLE SERIES

discription

model

rated pull(lbs)

gbab ratio

handle length(mm)

drum-hub dia(mm)

n.w/g.w(kg)

piece in each box

packign size(cm)

winch

BY06

600(270)

3.1:1

165

Φ16

13/11

59x26x16

BY08

800(360)

3.1:1

175

Φ16

14.5/12.5

59x26x16

BY10

1000(450)

4.1:1

200

Φ18

18/16

66x27x18

BY12

1200(540)

4.1:1

225

Φ18

18.5/16.5

66x27x18

BY14

1400(630)

4.5:1

225

Φ18

19/17

67x27x19

BY16

1600(720)

5.1:1

225

Φ20

15/13

46x31x20

BY18

1800(810)

4.1:1&9.8:1

250

Φ20

18/16

52x31x20

BY20

2000(900)

4.1:1&9.8:1

250

Φ20

19/17

52x31x20

BY25

2500(1100)

5.1:1&12.2:1

275

Φ42

21/18

54x31x22

BY30

3000(1350)

5.1:1&12.2:1

290

Φ42

22/20

54x31x22
