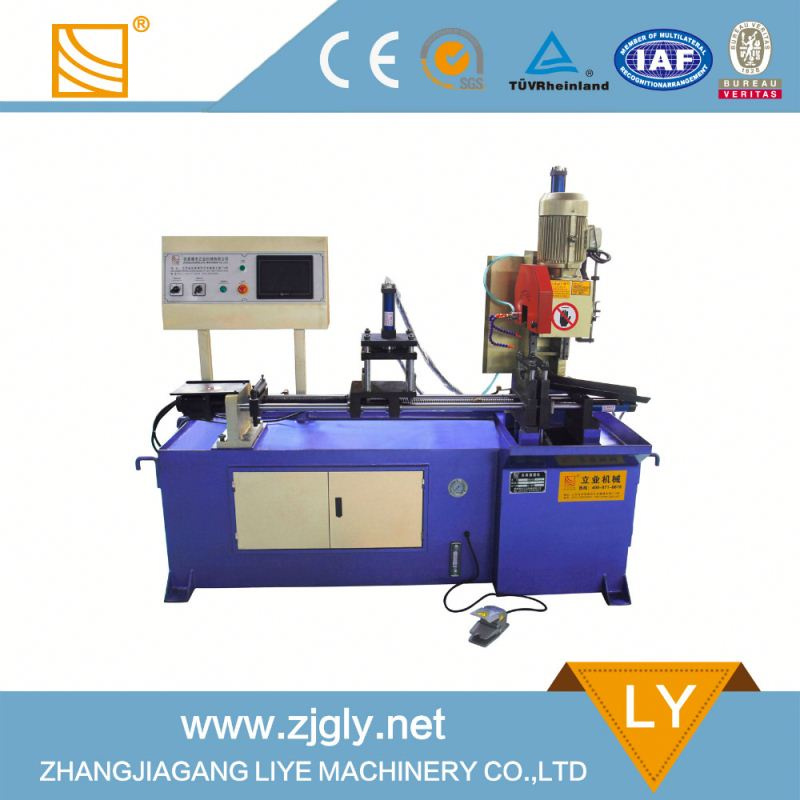

Yj-424CNC Electric Advanced Circular Saw Machine for Round Tube

Name: Yj-424CNC Electric Advanced Circular Saw Machine for Round Tube
Brand: tool-buy.com
SKU: 840247085
Availability: InStock
Rating: 4.3 (25 reviews)

Price:	US $ 1600/Set
Min Order:	1/Set
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Zhangjiagang Liye Machinery Co., Ltd.

Showroom Product Company Profile

Prod Model:	YJ-424CNC

Product Description

Specification:

pecification/model	YJ-424CNC((Servo feed)
Main Driver Motor	3.3/3.0kw/380V/50HZ
Blade Speeds	18/36RPM
Clamping Vise	Bilateral / up / down
Coolant Vise	40w
Servo Motor Power	1kw
Diameter	HSS Φ325-Φ350mm
Saw Blade Size Bore	Φ32mm
Pin Storke	2×Φ11×PCD63mm
Feeding length (1)	5-700mm
	Multiple feeding can be realized
Hydraulic Pump Motor	2.2kw
Max. Operation Prssure	70kg
Machine Dimensions(L×W×H)mm	2180mm×950mm×1850mm
Machine Weight	1000kg

Feature:

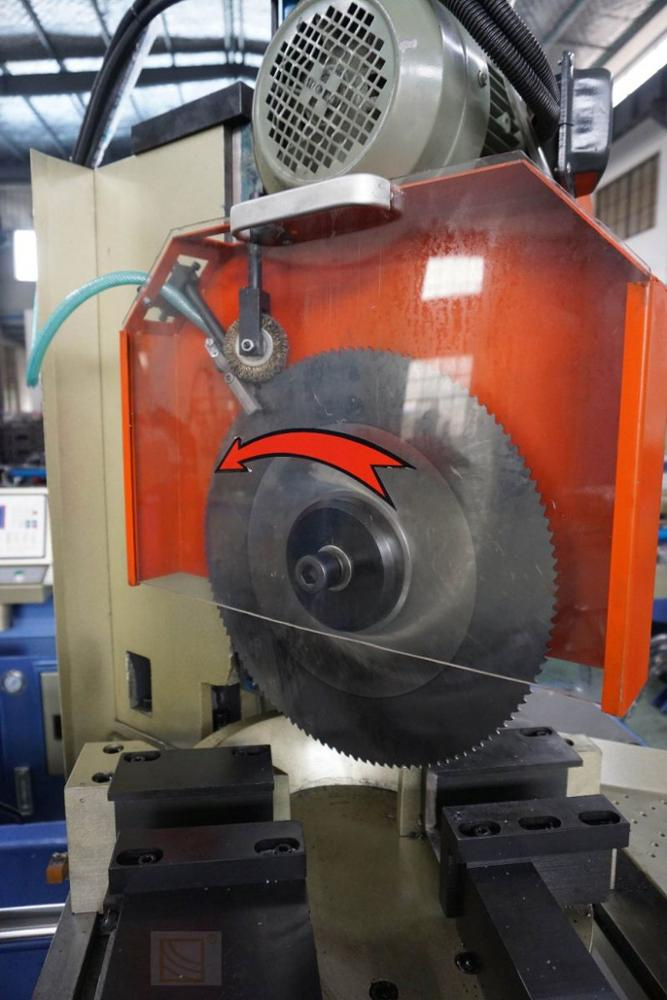

1. HSS saw web (Φ250-Φ315mm) is applied, standard Φ300mm.

2. Full-automatic hydraulic tube cutter, having cyclic actions (feeding, material clamping and cutting) automatically.

3. The feed mechanism is firm in structure and has accurate actions. The floating type seat will not damage the surface of parts.

4. The specially designed main clamp has strong clamping force, reliable and safe.

5. Automatic circulation of cooling fluid ensures smoothness of cutting face of parts and long service of saw web.

6. It is controlled by microcomputer. It has simple line and can be maintained easily.

7. Control buttons are concentrated on panel, which facilitates to operation.

8. Cutting length display device, cutting quantity setting and counting device and shutdown device are provided.

9. Centralized treatment of filings, which is convenient and ensures cleanliness.

Features

1. Feed upwards and downwards to the vertical slide, making saw cutting more stable and ensuring high service life and high precision of cutter.

2. European-style design, multiple units of gear drive suitable for heavy cutting, stable precision

3. Well-designed feed system, no damages to surface of parts and high feed precision

4. Unique design of main clamp, strong clamping force.

5. It is controlled by microcomputer and can be maintained simply.

6. Automatic circulation of cooling fluid ensures smoothness of cutting face of parts.

7. Control buttons are concentrated on panel, which facilitates to operation.

8. Centralized treatment of filings, which is convenient and ensures cleanliness.

9. Cutting length display device, cutting quantity setting and counting device and shutdown device are provided.

Shapes of cut materials

Round tube, square tube, elliptical tube, plum blossom-shape tube, shaped tube, U-steel, angle steel, I-steel and flat steel, etc.

Categories of cut materials

Steel tube, stainless steel tube, copper tube, aluminum tube and multiple-unit tube

Standard accessories

1. One pair of standard clamping mould

2. One set of common tools

3. One piece of saw web

Special accessories

1. Feed bracket, discharge bracket

2. Air cooler

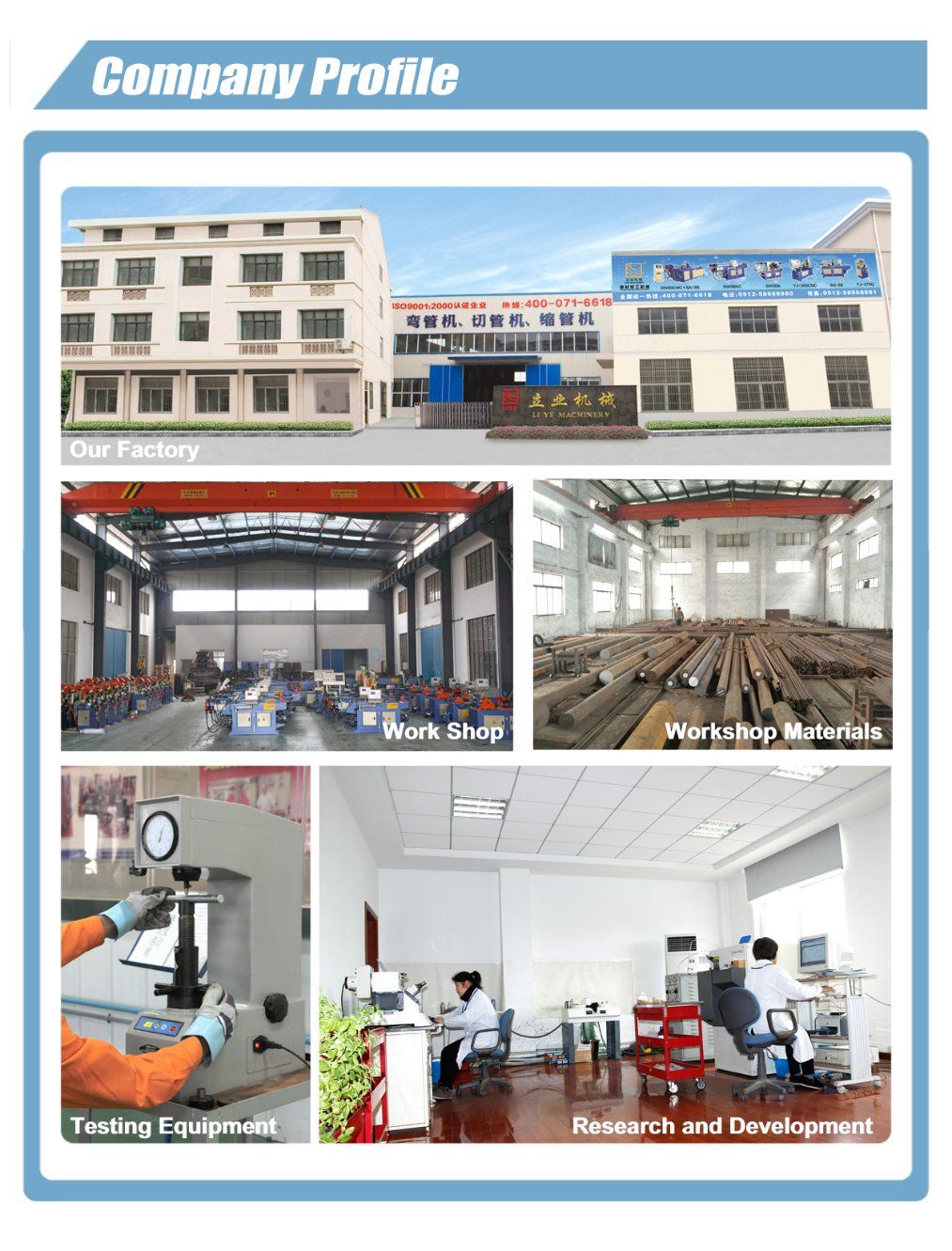

Zhangjiagang Liye Machinery Co., Ltd. (hereinafter referred to as the "Company") is specialized in manufacture of machining equipment for metal pipes. The Company covers an area of more than 10, 000 m2 with total assets of over CNY 20 million.

The main products include 9 series and over 100 models, i. e. Pipe machining line, pipe cutter, pipe bender, pipe end forming machine, chamfering machine, gear grinding machine, riveting machine, arc machine and bending press.

The technical performances of various machines reach national and international advanced level. The Company pays great attention to quality and technology content of product. The Company, since establishment, has developed over 60 new products and obtained several proprietary technologies. The Company has been certified by ISO9001: 2000 Quality System, CE, TUV, SGS and BV, etc.

The products are widely applied in leisure chair, tent and flower shelf, tourism products, steel furniture, automobile, motorcycle, bicycle, children's bicycle and bed, aero seat, air conditioner, petrochemical industry, bathroom accessory, pipe, iron machining, etc. They are ideal machining equipment for cutting, shrinking & expanding, bending and riveting pipes of various kinds.

The Company has manufactured pipe machining equipment for more than ten years with strong technical force and development force. The Company is capable of manufacturing over 1, 000 sets of machine tools including high-grade pipe bender. The products are featured by excellent performance, high quality and perfect service and are sold both at home and abroad, including countries and regions in Europe and America, Middle East and Southeast Asia with good praise from clients.

The Company has established many offices and sale points around the world and formed pre-sales consultation, after-sales services and web-based service websites, providing new and old clients with fast and high-quality services.

The Company abides by the operation principle of "quality first, client oriented and honesty based" and sincerely welcome new and old clients. The staff of the Company will provide all-round services to you.
