Prod Model: |
YN27C |
Markets: |
South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
Model No: |
Yn27c |
Weight: |
27kg |
Dimension: |
746X315X229mm |
Rotating Speed Of Engine: |
≥2450r/M |
Rotating Speed Of Drill Rod: |
≥200r/Min |
Tank Capacity: |
≥6m |
Power Source: |
Petrol / Gasoline |
Certification: |
CE |
Product Description
YN27C Gasoline Splitting Breaking Jack Hammer
1. Good quality with World famous brand.
2. Delivery fast Chipping hammer.
3. ISO9001,MA. CE certification.
4. Use compressor air as power.
Technical paramter for YN27C Gasoline Splitting Breaking Jack Hammer:
1.Weight of the main machine: 27kg
2.Overall dimension: 746×315× 229mm
3.Type of engine:single cylinder,air cooled two strokes
4.Cylinder Diameter×Stroke of piston:5 8 × 70mm
5. Rotating speed of engine: ≥2450r/min
6.Displacement of engine plston: 185cm3
7.Type of carburetor: hand needle valve,no floating type
8.Ignition system: Controllable silicon contactless system
9. Drilling speed:(mean value of five holes) ≥ 250mm /min
10. Max. drilling depth: ≥ 6m
11.Fuel consumption: 0.12 L/m
12.Tank capacity:≥ 1.14L
13. Mixing ratio of gasoline and lubrication oil (in volumes):12:1
14. End of drill rod dimensions: hexagonal2 2 × 108mm
15. Rotating speed of drill rod:≥200r/min
16. Clearance of Spark plug :0.5 -0.7mm

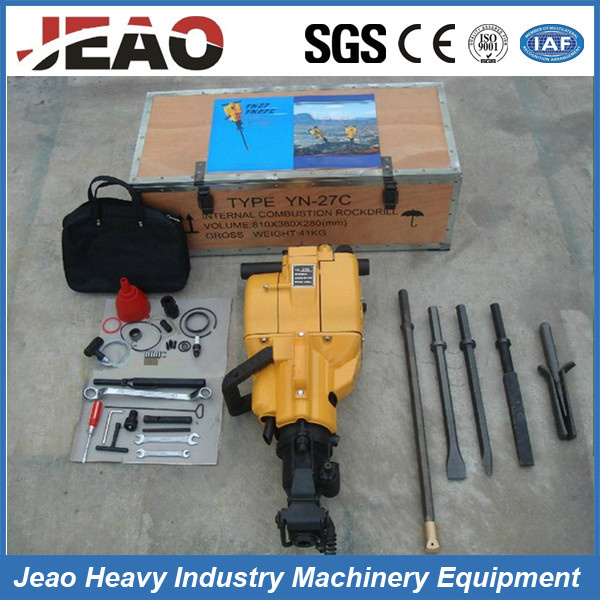

Figure Photos for YN27C Gasoline Jack hammer:
