| Prod Model: |
YN27C YN27J |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type Of Engine: |
Single Cylinder, Air Colled Tow Strokes |
| Rotating Speed Of Engine: |
>2450 R/Min |
| Drilling Speed: |
>250mm / Min |
| Fuel Consumption: |
0.12L/M |
| Max. Drilling Depth: |
>6 M. |
| Working Style: |
Rotary Type |
| Type: |
Gas Powered |
| Usage: |
Drilling Hole |
| Brand: |
Prodrill |
Product Description

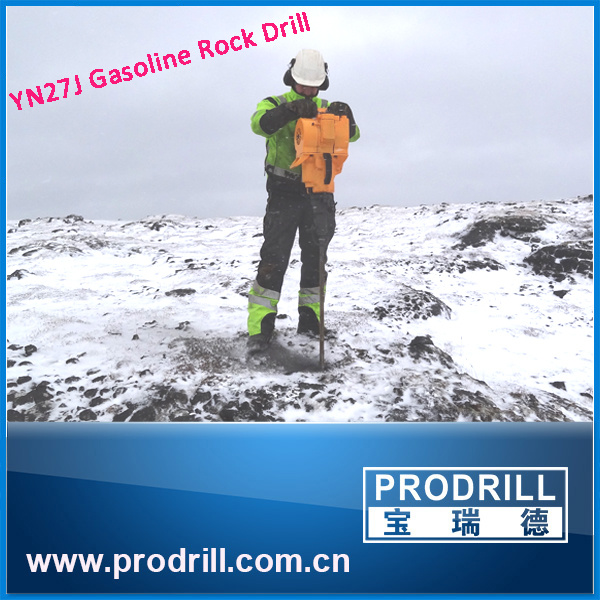

Gasoline Internal Combustion Rock Drill Type YN27J is a very efficient machine with the special feature
that the structure is very compact, Less of the-easy-to-damage-parts, and very easy to control. It can
adapt to these outside situations there is no water and no electronic power. It is a Kind hand held drill built up with gasoline engine, Air pump, rock drill and the rotation plumbum equipment for running or stop. It can be used as a tool for breaking, percussive drilling, tamping besides rock.
Other type: YN27A,YN28,YN30A,YN30W
YN27 diesel rock drill for coal
Instruction of YN27C
YN27C Rock Drillis is a very efficient machine, composed of gasoline engine, Air pump, rock drill.
It adapt to these outside situations without water and electronic power.
Meanwhile it is a hand- held drill, during operation, rock power is blown away by the compressed air produced by the machine itself.
Its suited to work on high mountains, plains, hot and cold area with no power and no water supply and air compressing equipments, and especially suits the projects that the machine has to be carried at any time and in any area.
Features of YN27C
1. Easy to operate, just turn the handle to make it work.
2. Time and labor saving, Drilling fast and high efficiency.
3. First-class level Drilling Tools, suitable for site without power or pressure equipment, it has wide adaptability for high mountain and plain, extreme temperature (40 to -40)
4. Used to drill vertical downward hole(max depth 6m) and and <45° Upward hole.
5. Light Drilling Tools, only 27kgs, easy to carry.
Advantage:
1. Structure is very comact
2. Less of the easy o damage parts, easy to control
3. Adapt to these outside situations there is no water and no electronic power
Weight of main machine | 27kg |
| Overall dimensions(L*W*H) | 746*315*229mm |
| Cylinder diameter*stroke of piston | Φ58*70mm |
| Rotation speed of engine | ≥2450rpm |
| Displacement of engine piston | 185cm³ |
| Type of carburetor | hand needle valve, floatless type |
| Ignition system | controllable silicon, contactless system |
| Drilling speed (mean value of five holes) | ≥250mm/min |
| Drilling hole diameter | Φ28-42mm |
| Max drilling depth | 6m |
| Fuel consumption | ≤0.12L/m |
| Tank capacity | ≥1.5liter |
| Drill rod and breaker shank | Hex22*108mm |
| Rotating speed of drill rod | ≥200rounds/min |
| Clearance of spark plug | 0.5-0.7mm |
Ps.: Others
1. Besides C1 C2 C3 non explosive blasting chemicals , we also sell other Stone drilling tools:
1) Rock drill:
Handheld rock Drill: Y10, Y18, Y20, Y24, Y26, TY24C, etc;
Airleg rock drill: YT24, YT28, etc;
2) Drill rod: Taper rod (hex. 22 * 108mm)
3) Drill bit: Taper button bit, Taper chisel bit, Taper cross bit
4) Splitter: Handheld stone splitter (or shims and wedges or plug and feather), G10 pneumatic splitter
5) Breaker: G10, TPB, etc;
2. Advantages:
Compared with the oversea brands, our advantages are bellowing:
a. Our products can match over 95% against the original products
b. Price are competitive against the famous brands and best quality against the small factory
3. About Us:
1. Our factory has been specialized in manufacturing drilling tools and spare parts for over 10 years.
2. We have advanced technology and equipment.
3. Our technician has more than 13 year's professional working experience.
4. Rock drilling tools are exported throughout the world. Main market: Norway, Turkey, USA, Canada, Australia, Brazil, Uruguay, Iran, Philippines, Thailand, India, etc.
4. Welcome your question and inquiry, Contact: Tina Xu
0086 150 6073 0593
Xiamen PRO Drill Equipment Co., Ltd is a specialized company of Rock Tools, which is experienced in developing and manufacturing Top hammer and DTH rock drilling equipments. The main products include high, medium and low air pressure DTH hammers and bits, Symmetric and eccentric overburden advanced casing drilling tools, and Threaded button bits, Drill rods and Couplings, also
Air grinder for button bit, chisel bit, Diamond grinding cup for cemented carbide
Reconditions and sharpener.
PRO Drill Rock Tools can be perfectly matched with the world famous brand such as Atlas Copco, Sandvik, Ingersoll-Rand and other well-known manufacturers' Drill rigs and they are widely applied to varies of areas including blast holes, earthwork projects, mineral exploration, water-well, construction, geo-thermal exploration.
PRO Drill plants has introduced the most advanced manufacturing equipments and technology in the world, such as Electro-hydraulic forging hammers for forging process, Germany atmosphere-controllable sealed quench furnace for heat treatment, Super CNC machines and Processing Centre for accurate finishing and experienced staff in metal machining all contribute to the high performance rock tools.
In response to the demand from dimensional stone quarry, we also offer all kinds of splitting, pushing and grinding tools like Expansive Mortar, Soundless Cracking Agent Shims and Wedges, Hydraulic Rock Splitter, Cyliner Type Rock splitter, Hydro bag, Air Pushing Bag and Cemented Grinding Stone are available as integral services working for the worldwide quarry owners.
Our believe that innovative think drives the delivery of quality rock tools to customers, . Prodrill rock drilling tools are renowned for their great reliability, excellent and even quality and long services life with an expertise direct to any corner of the world.
We are committed for groundbreaking solution of drilling and Splitting & cutting for your unique operation in quarrying, mining and construction project. Looking forward to hearing from your enquiry.
