| Prod Model: |
YT23D |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Weight: |
24 Kg |
| Length.: |
668mm |
| Air Pressure: |
0.35-0.63MPa |
| Cylinder Dia: |
70mm |
| Piston Stroke: |
70mm |
| Type: |
Air-Leg Rock Drill |
| Material: |
Standard |
| Use: |
Rock Drill |
Product Description
Advantages of Yt23D Air Leg Pneumatic Deep Hard Rock Drill Tool1. The Yt23D Air Leg Pneumatic Deep Hard Rock Drill Tool has good performance under low pressure; it is suitable for act impetus with long air pipe and small air compressor.
2. And it is use for drilling in mines, quarries, railway construction, water conservancy and national defense project facility.
3. When it is matched with Model FY200A oil reservoir and Model FT160A or FT160B air-leg, it can perform wet drilling under various of rocks at a clinic and incline orientation, it can also use in the trolley without Air-leg.
4. Hand-hold rock drill is a tool for the secondary blasting in quarry and especially for rocking 20mm hose in marble and granite,
5. Yt23D Air Leg Pneumatic Deep Hard Rock Drill Tool has characteristic of low weight,reasonable structure,handy use and little air consumption.
Parameter of Yt23D Air Leg Pneumatic Deep Hard Rock Drill Tool| Model | YT23D |
| Weight | 24 kg |
| length | 668mm |
| Air pressure | 0.35-0.63MPa |
| Cylinder dia | 70mm |
| Piston stroke | 70mm |
| Impact frequencey(at0.4MPa) | ≥28HZ |
| Impact energy(at0.4MPa) | ≥45J |
| Air consumption (at0.4MPa) | ≤38 L/S |
| Noise | ≤112dB(A) |
| Water pressure | 0.2-0.3MPa |
| Air pipe (inner dia) | 19 mm |
| Water pipe (inner dia) | 13 mm |
| Bore dia | 34-42mm |
| Bore depth | 5m |
| Shank dimensions(hex*length) | 22*08+-1 mm |

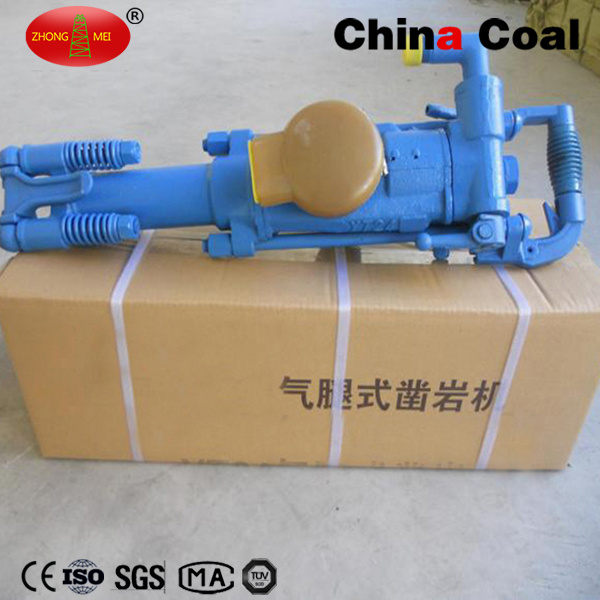

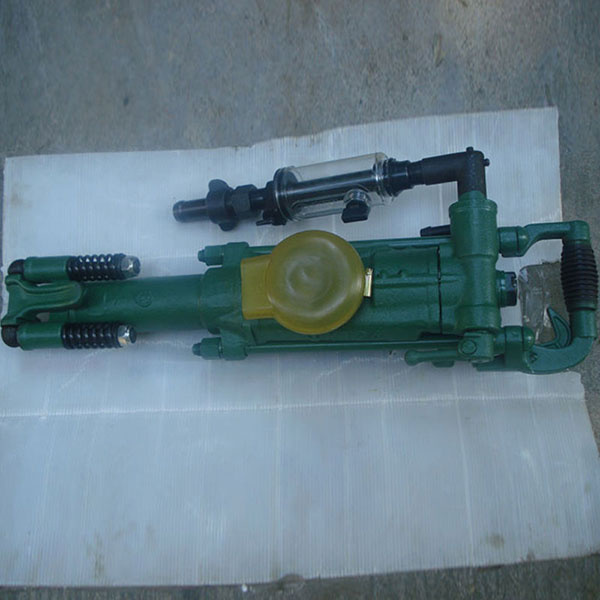

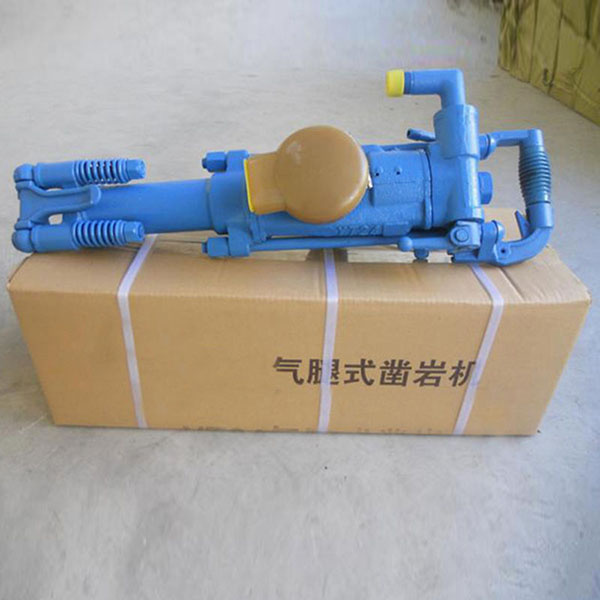

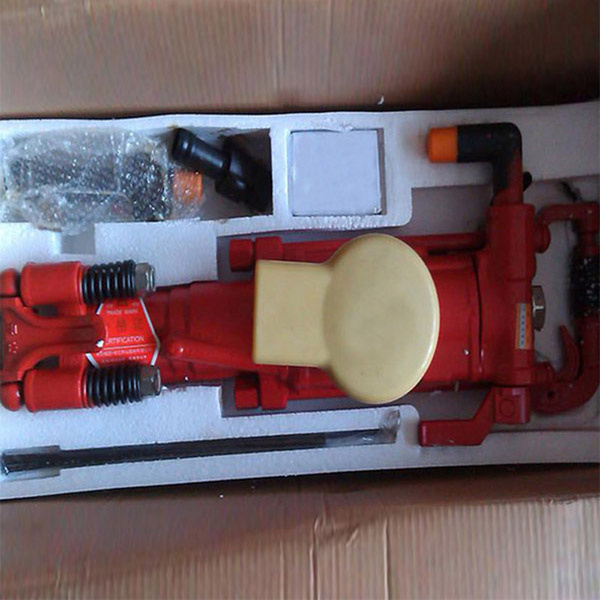

Photos Of Yt23D Air Leg Pneumatic Deep Hard Rock Drill Tool
Shandong China Coal Industrial & Mining Supplies Group Co.,Ltd (hereinafter referred to as China Coal) is a group company, which is a collection of e-commerce, machinery manufacturing, software, research and development, modern logistics of large diversified industrial group. The group has 100 million yuan registered capital , with more than 1100 employees.
China Coal is a professional manufacturing base of mines support equipment, transport equipment, lifting equipment, spray equipment, drilling equipment, ventilation equipment, lifting equipment and other products, as well as research and development new product and mine construction products with advanced high technology.
Shandong China Coal Industrial & Mining Supplies Group Co., Ltd (hereinafter referred to as China Coal Group) was founded in the 1990s, Group now has 3 subsidiaries, 36 professional companies, 3 Hong Kong companies, 1 British Cayman company, 1 US company, with more than 1, 100 employees. We are a large diversified industry group consolidates machinery and intelligent terminal manufacturing, e-commerce, software R&D, intelligent logistics which key supported by MIIT, Ministry of Commerce, Development and Reform Commission.
Shandong China Coal Industrial & Mining Supplies Group Co., Ltd. is a Big Joint-Stock Enterprise and Was Founded at The Beginning of 1980s, Which Is an Comprehensive Company Specially Doing The Business of The Mine Construction Materials, Mechanical and Electrical Equipments, Pneumatic Machineries and Accessories, construction machinery, instrument and meters, drilling machinery, mining and tunnel construction machinery, packaigng machinery, golf carts and related products, household application, high tech equipment, food machinery. We Have Six Economy and Trading Branches and One Machinery Manufacturing Branch.
We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with the high quality at the reasonable price.
