Product Description

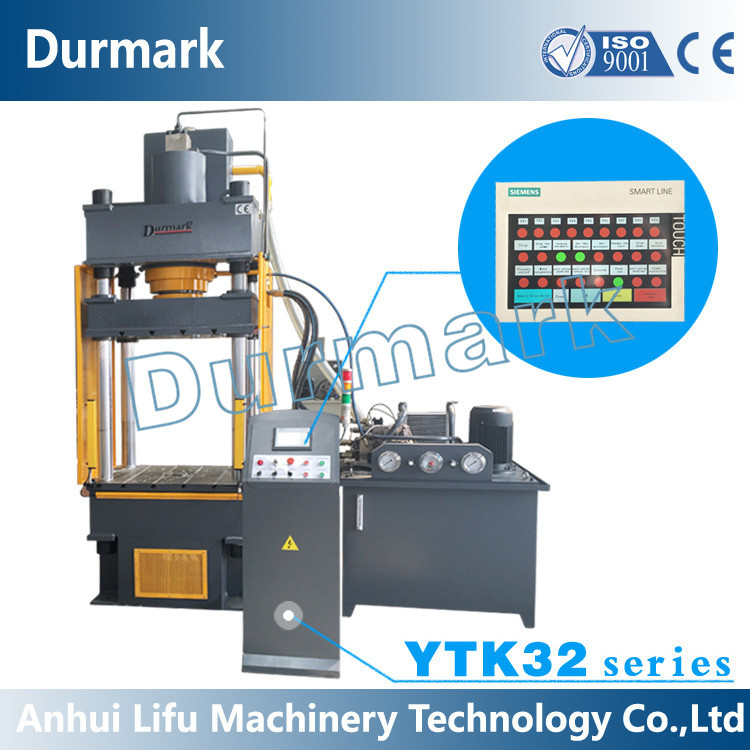

YTD32-315T double action hydraulic press machine stamping press machine
Product instructionThis machine is applicate to all drawing, blanking, forming process, especially in the following areas: all kinds of containers, all kinds of automobile covering parts, electric parts, kitchen utensils, tractor, motorcycle, aerospace,aviation, electronics, instrumentation, plastic,rubber,chemical and other industrial departments.
Technical parameter| 1 | Nominal force | 800 | KN |
| 2 | Ejecting force | 190 | KN |
| 3 | Max.working pressure | 25 | Mpa |
| 4 | Slider stroke | 500 | mm |
| 5 | Ejecting stroke | 200 | mm |
| 6 | Daylight opening | 880 | mm |
| 7 | Slider speed | Idle stroke : 100
Work : 30
Return stroke : 80 | mm/s |
| 8 | Worktable effective area | 720*580 | mm |
| 9 | Ejected cylinder speed | Up : 75
Return : 75 | mm/s |
| 10 | Dimension | 2500*1500*2950 | mm |
| 11 | Motor power | 7.5 | kw |
Feature1. Three beam four-column structures, after the computer optimized design, economic, and apply.
2. Hydraulic control system uses an integrated cartridge valve systems and reliability, long life.
3. Hydraulic shock is small, reduces piping and leak-point links.

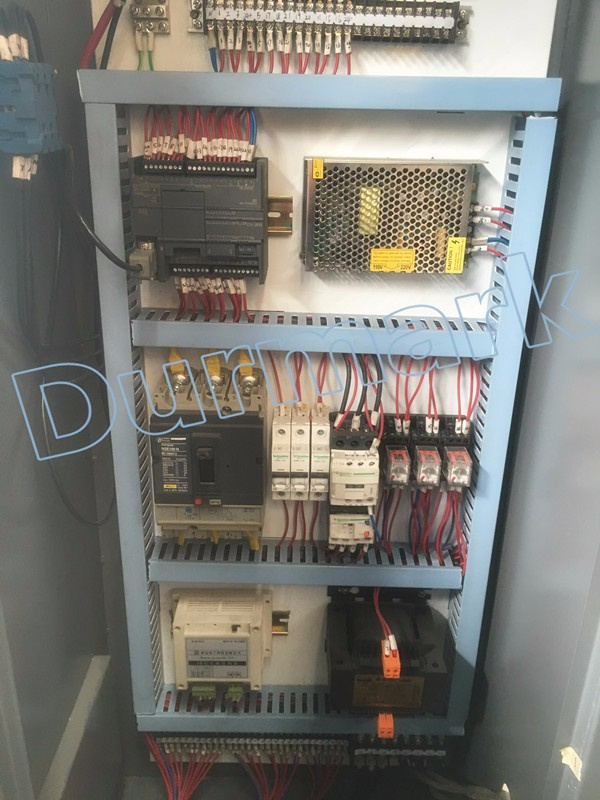

4. Stand-alone electrical control system which is reliable, intuitive motion, easy for maintenance.
5. Centralized control design, two kinds of mode of operation for choose.
6. Setting process can be realized easily.
7. Working pressure, stroke according to the technical needs within the limits prescribed adjustable.

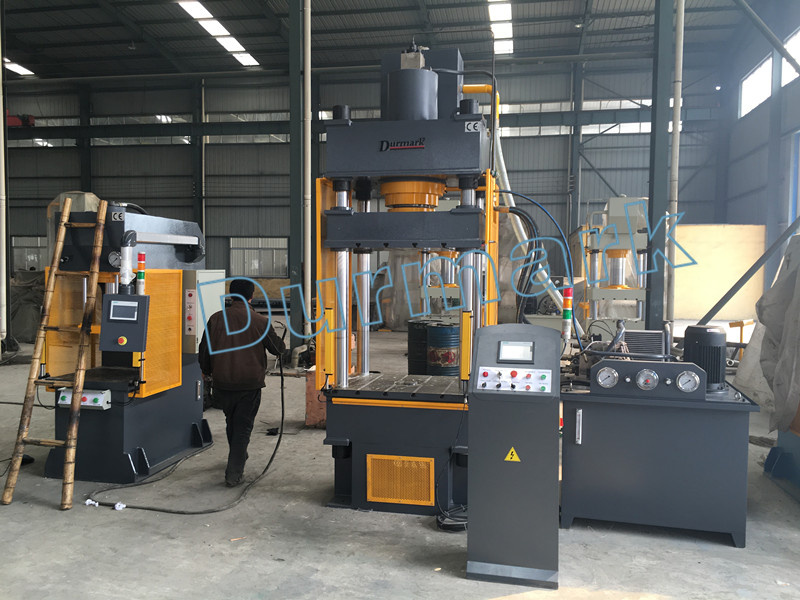

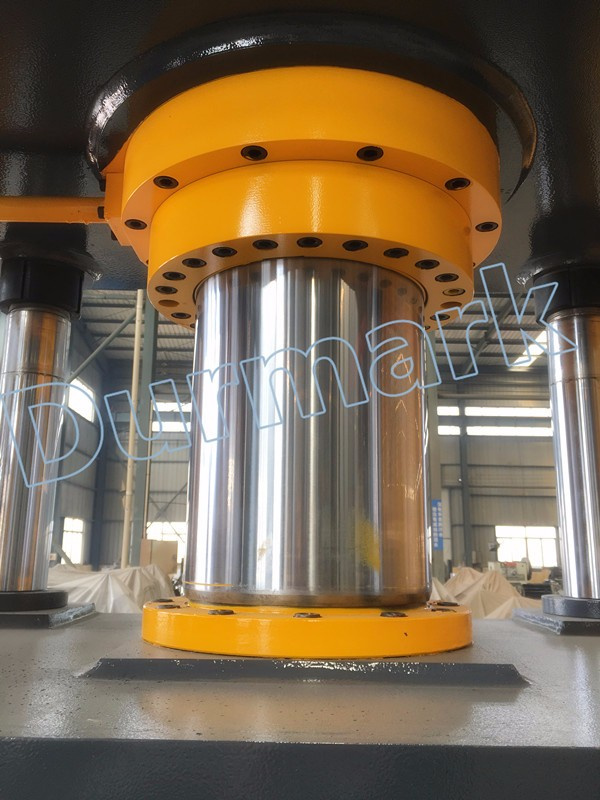

Photo details
Service Pre-sales Service
1. Inquiry and consulting support
2. Sample testing support
3. Recommend the most suitable machine according to customer's purpose
4. Factory visiting welcomed
After-sales Service
1. Training how to install the machine
2. Training how to use the machine
3. Warranty 1 year
4. Engineers available to service machinery oversea

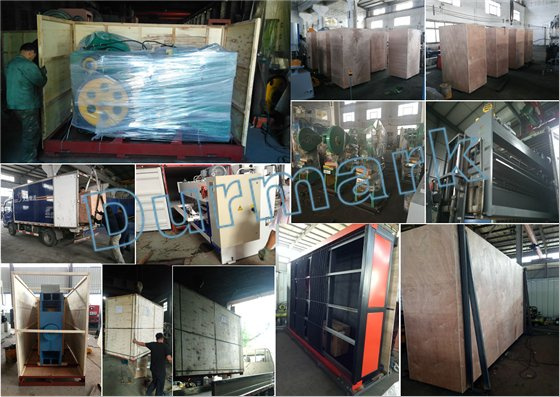

Package

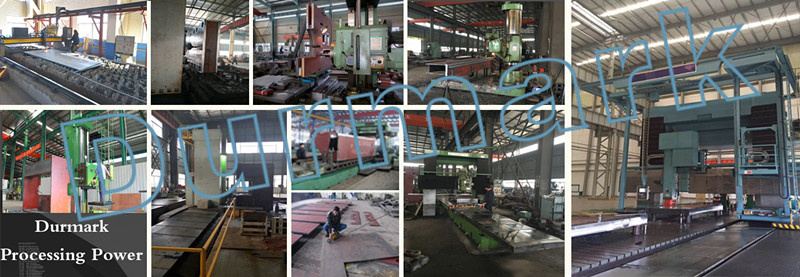

Process power
Contact Name : Sisi
Phone Number : 86 15156107235
QQ : 3111599172
Anhui LIFU Machinery Technology Co., Ltd. is a design, development, production and sales of an integrated company. Our main development direction is producing different CNC machineries to realize of mechanical automation. Focus on R&D in technology, and have a complete R & D team, a total of 16 senior engineers for design, drawing, optimization, etc.
In addition, we have long-term close cooperation with domestic well-known Metal forming Machinery Research Institute, cutting off stamping machinery surrounding automation equipment manufacturers, and CNC automation control system manufacturers.
The company occupies an area of about 100, 000 square meters, of which about office space 2, 000 square meters, a semi-finished workshop about 6, 000 square meters, finishing department about 8, 000 square meters, welding workshop about 4, 000 square meters, Grinding processing workshops about 2, 000 square meters, a variety of spare parts warehouse of about 2, 000 square meters. With improved processing power, equipped with large CNC pentahedrons processing center, two sets large boring and milling machine, four sets large gantry milling machine, two sets vertical boring machine, one set large horizontal lathe with max 600mm process diameter,
One set 12m CNC cutting machine, four sets precision grinder, drilling machine, CNC lathe, normal lathe, kinds of small process machine and hundreds of workpiece detection equipment, etc.
