| Prod Model: |
ZW1905 |
| Powered By: |
Chargeable Battery |
| Frequency: |
868.42MHz/908.42MHz/869.0MHz./865.2MHz |
| Range: |
30m Line of Sight |
| Wireless: |
Mobile or PC or Pad |
| Place Of Origin: Guangdong, China (Main: |
AA*4PCS (Low Battery Warning) |
| Standard/ Approval: |
Ce |
| User Cod: |
6 Digits User Code |
| Programming Code: |
8 Digits Programming Code +9 (for Emergency) |
| Manual Key: |
Turn The Override Key 90 Degree Clockwise, Then Tu |
| Type: |
Electronic |
| Design: |
Button |
| Material: |
Alloy |
| Suitable For: |
Home Door |
| Customized: |
Customized |
| Usage: |
Industrial |
Product Description

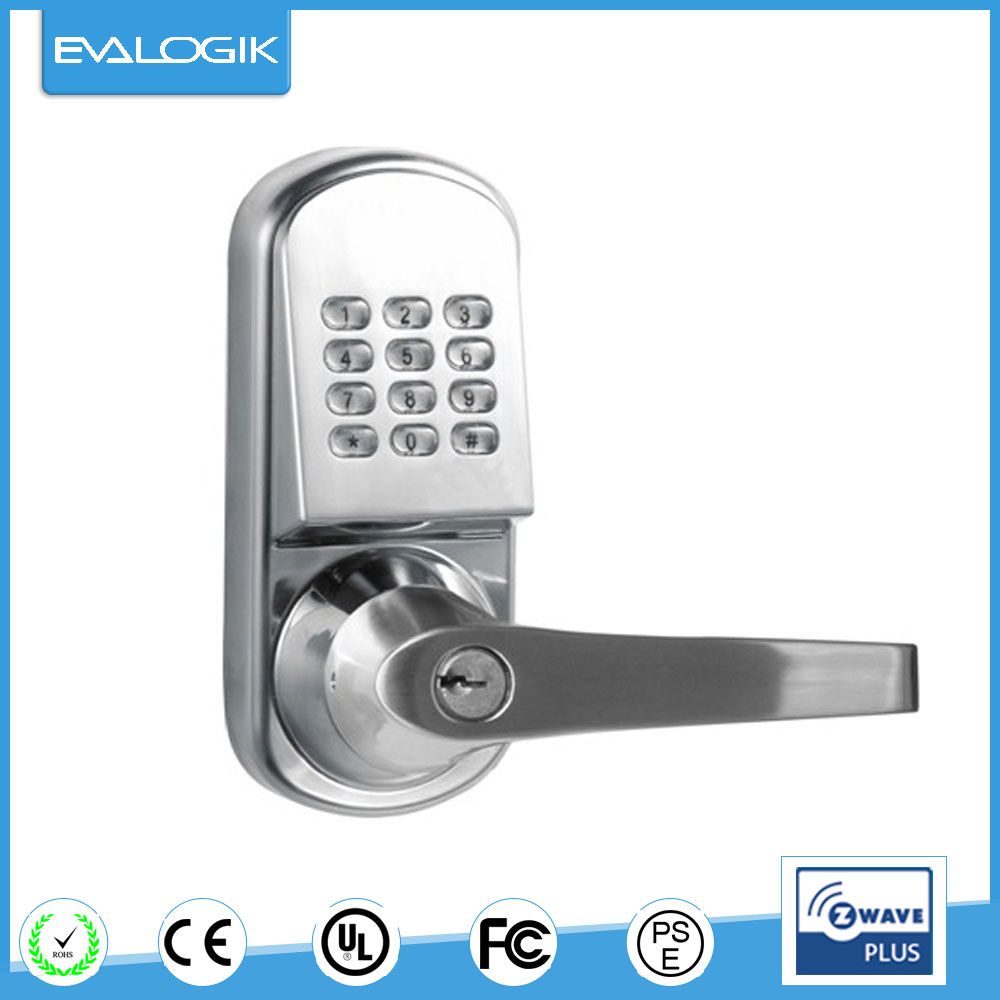

ZW1905 Door Lock for smart home security system
Instruction:
The lock is tamper resistant, easy to install and even easier to use! *Features may vary based on Z-Wave controller.
| Open Mode: | Code,Mechanical key, Wireless |
| Identification Time: | >1s |
| False Reject Rate: | ≤ 0.01% |
| False Identification Rate: | ≤ 0.0001% |
| User Capacity: | 20 |
| Working Voltage: | 5 alkalne betteries 4pcs AA(DC4.8 - 6.5V) |
| Deficient Voltage Alarm: | 5.0V (+/-0.2V) |
| Holing Current: | 30 ~ 40uA |
| Working Temperature: | -20ºC ~ 50ºC |
| Storage Temperature: | -30ºC ~ 70ºC |
| Mean Free Failure Time: | ≥25000h |
Functions Detail:
1. How to change programming code (but not delete existing users)
Function Code: 4
{ programming code}+{4}+{new programming code}+{new programming code}
2. How to add one user code
Function Code: 1
{ programming code}+{1}+{user code}+{user code}
3. How to delete one user code with index No.
Function Code: 2
{ programming code}+{2}+{index No.}+ {#}
4. How to edit one user code with index No.
Function Code: 2
{ programming code}+{2}+{index No.}+ {6 digits new user code}+ {6 digits new user
code}
5. How to delete all user code
Function Code: 3
{programming code}+{3}+{ programming code}
6. How to enable button beeps (on & off)
Function Code: 6
{programming code}+{6}
7. How to enroll and un-enroll lock
Enroll
Put the gateway into enroll mode
Input {programming code} + {0} --- lock is into enroll mode
If the lock hasn't been enrolled with any other gateway or have been enrolled with the same
gateway, the lock sounds music indicating enrolling successfully.
If the lock has been enrolled with other gateway, lock sounds a short beep after 5 sec
indicating enrolling unsuccessfully. Un-enrolling operation is needed first, then re-enroll .
Un-enroll
a. Put the gateway into un-enroll mode
b. Input {programming code } + {0 } --- lock is into un-enroll mode
If lock has been enrolled with any other gateway, lock sound a long beep after 5 sec
indicating un-enrolling successfully.
If the lock hasn't been enrolled with any other gateway, lock sounds a short beep after 50sec
indicating un-enrolling unsuccessfully. Un-enroll operation is unnecessary.
After factory default setting, the enrolling of Z-Wave unlocking is still effective.
Maintenance:
The devices are maintenance-free, so never open them. The guarantee becomes void when
you open the appliance. Only clean the outside of the devices with a soft, dry cloth or a brush.
Prior to cleaning, remove the devices from all voltage sources.
NOTE !
Do not use any carboxylic cleaning agents or petrol, alcohol or similar. These will attack the
surface of devices. Besides, the vapors are hazardous to your health and explosive. Do not
use any sharp edged tools, screw drivers, metal brushes or similar for cleaning.
Warranty 1 year
