Zipcord Duplex Interconnect Cable /Fiber Optic Cable for Riser Building
| Price: |
US $ 0.02-0.06/Meter |
| Min Order: |
2000/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
GJFJV-duplex |
| Fiber Count: |
2 Cores |
| Fiber Type: |
Singlemode or Multimode |
| Fiber: |
G652D/G657A |
| Strength Member: |
Aramid Yarn/Kevlar Yarn |
| Installation: |
Indoor Distribution Cable |
| Storage Temperature (ºC): |
-40~+70 |
| Product Name: |
Zipcord Interconnect Cable |
| Color: |
Optional |
| Sheath: |
PVC/LSZH/TPU |
| Application: |
Telecommunication |
| Type: |
Single-mode Fiber |
| Connection Structure: |
SC-SC |
| Certification: |
ISO9001 |
| Sheath Material: |
LSZH or PVC or TPU |
Product Description

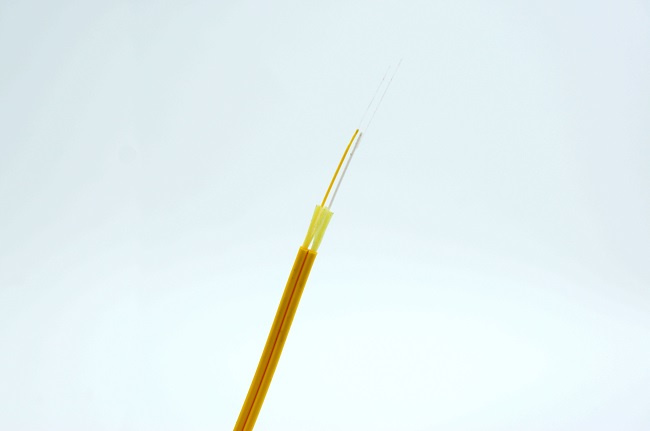

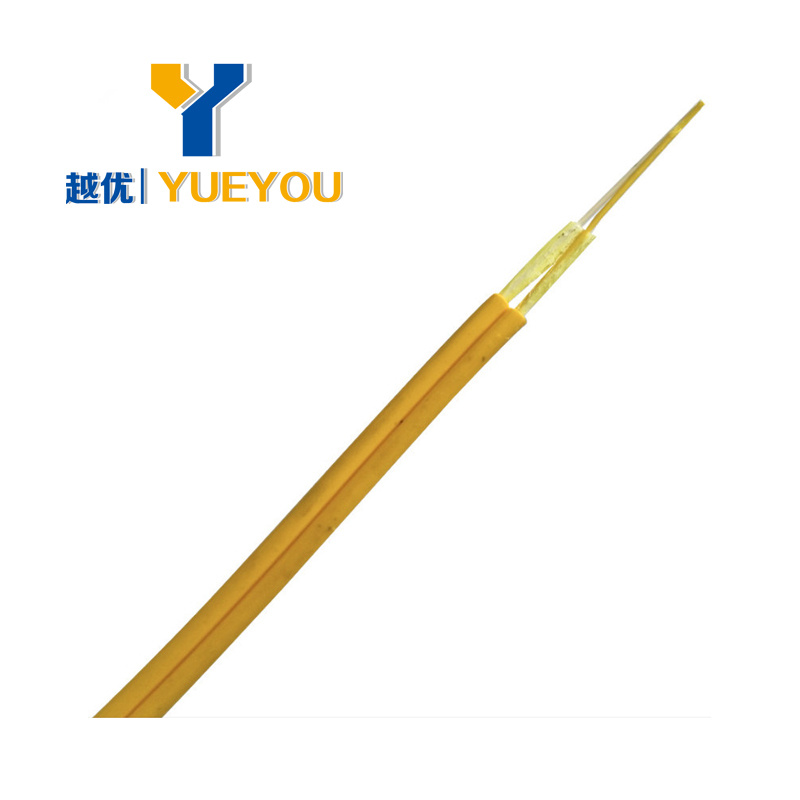

Zipcord interconnect cable /fiber optic cable for riser building Description:The simplex cable uses single 900um or 600um tight buffer fiber as optical transmission medium,covered with aramid yarn as strength member,then extruded with a PVC sheath. Other sheath materials, like LSZH and TPU,are available on request.
Features :- Good uniformity of the outer diameter of tight buffer fiber and excellent strippability
- Good performance of flame-retardant
- Low induced attenuation within the operating temperature range.
- KEVLAR strength member offer good tensile strength.
- Single mode 9/125 or Multi-mode optical fiber 50/125, 62.5/125 .
- Excellent corrosion resistant,waterproof,lame retardant and environmental-friendly properties of the outer sheath.
Application :- Duplex fiber flexible connection jumper o pigtail.
- Indoor riser level and plenum level cabling.
- Indoor and outdoor point-to-point applications
- Direct connectorization
- Internal wiring in cable trays.
Standards:Comply with standard YD/T1258.2-2003 and IEC 60794-2-10/11. Delivery length:Standard reel length :2000m,other lengths available on request.Fiber Characteristics : | Fiber type | | G.657A1 | G.657A2 | OM3 | OM4 |
| Attenuation(+20ºC) | @850nm | | | ≤2.3dB/km | ≤2.3dB/km |
| @1300nm | | | ≤0.6dB/km | ≤0.6dB/km |
| @1310nm | 0.36 dB | 0.36 dB | | |
| @1550nm | 0.22 dB | 0.22 dB | | |
| Overfilled launch Bandwidth | @850nm | | | ≥1500MHZ.km | ≥3500MHZ.km |
| @1300nm | | | ≥500MHZ.km | ≥700MHZ.km |
| Effective Modal Bandwidth | @850nm | | | ≥2000MHZ.km | ≥4700MHZ.km |
| 10GB/S Ethernet link length | | | | ≤300m | ≤550m |
| Min Bending Radius(mm) | | 10 | 7.5 | 30 | 30 |
Physical characteristics and mechanical performance : | Fiber Count | Cable Diameter
(mm) | Cable Weight
(kg/km) | Tensile Strength
(N/100m) | Crush Resistance
(N/100mm) | Minimum Bending Radius
(mm) | Storage
Temperature
(ºC) |
| 2 | 4.0×1.9 | 8.0 | 200/100 | 100/500 | 15D/30D | -40~+70 |
| 5.8×2.8 | 11.6 | 200/100 | 100/500 | 15D/30D |
Packages:

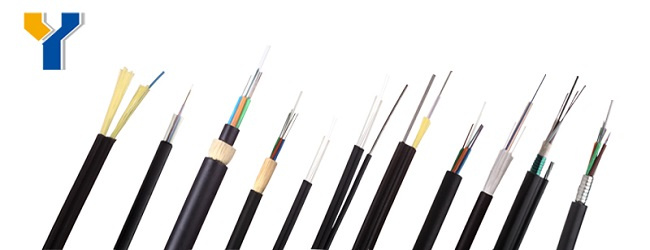

More popular products :
