Zlp630 and Zlp800 Suspended Platform Used Power Cable

Name: Zlp630 and Zlp800 Suspended Platform Used Power Cable
Brand: tool-buy.com
SKU: 814421445
Availability: InStock
Rating: 4.8 (146 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Shanghai RuiBiao Construction Machinery Co., Ltd.

Showroom Product Company Profile

Series:	Zlp630/Zlp800 Suspended Platform
Color:	Silver / Red / Yellow,as Your Requirement
Safety Lock:	as Your Requirement
Rated Load:	800kg
Length Of Platform:	1m-10m ( According to Requirment)
Counter Weight:	1000kg
Rated Speed:	9.0m/Min
Rated Power(Kw):	1.8*2
Material:	Aluminum, Alloy,Steel with Dipping Zin
Size:	(2000X3)X760X1450mm
Application:	Building Crane
Carrying Capacity:	Light Level
Driven Type:	Hydraulic
Running Mode:	Moving
Feature:	Explosion-Proof

Product Description

Zlp630 and Zlp800 Suspended Platform Used Power Cable

A.Description of Zlp630 and Zlp800 Suspended Platform Used Power Cable

Suspended platform is the latest products developed by RUIBIAO,with the features like more stable than elevator when start/stop,which greatly enhance the security and the service life of hoist and steel wire rope.The product has won the National hightech patent certificate.ZLP Suspended Platform is a new decorating machinery, which can replace the traditional scaffold and is mainly used in decorating, cleaning and maintenance of external walls of high buildings, such as cement coating, wall brick coating, painting, glass installing, ship building and repairing, big vessels, bridges, dams, chimneys, etc. Using Balance suspended platform can reduce work intensity and raise work efficiency.

B.Parameter of the suspended platform

Name		Technical parameter of construction platform
Model		ZLP500	ZLP630	ZLP800	ZLP1000
Rated load		500KG	630KG	800KG	1000KG
Lifting speed		8-10m/min	8-10m/min	8-10m/min	8-10m/min
Platform Dimension L×W×H(mm)		5000(2+3m)×720	6000(1+2+3m)×720	7500(2.5m*3)×720	7500(3*2.5)×720
Lifting Height		100M	100M	100M	100M
Cable		100M	100M	100M	100M
Steel rope		Dia:8.3mm	Dia:8.3mm	Dia:9.1mm	Dia:8.6mm
Hoist	Power	1.5KW*2	1.5KW*2	1.8KW*2	2.2KW*2
Hoist	Voltage	380V/50HZ	380V/50HZ	380V/50HZ	380V/50HZ
Safety lock	Permission force of	30KN	30KN	30KN	30KN
Safety lock	impact	3°~8°	3°~8°	3°~8°	3°~8°
Suspension mechanism	Front beam overhang	1.3~.1.5m	1.3~.1.5m	1.3~.1.5m	1.3~.1.5m
Galvanized	Support adjustable height	1.44~2.14m	1.44~2.14m	1.44~2.14m	1.44~2.14m
Counterweight		800KG	1000KG	1000KG	1200KG
20'ft container load qty		10 sets	10 sets	8 sets	8 sets
Type		Aluminum platform, hot galvanized platform, steel platform

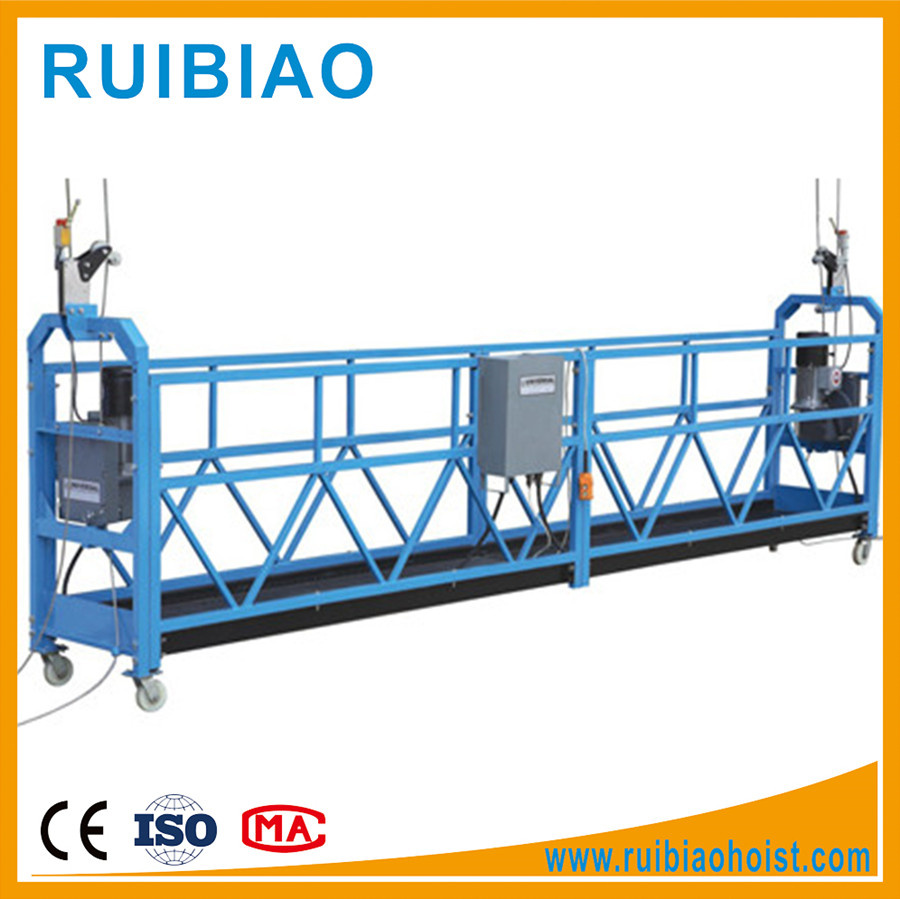

C.Pictures of the suspended platform

D.The main purposes of the suspended platform

1.Exterior wall construction and decoration of high-rise building, installation of panel wall and structural members of exterior wall.
2.Repair, maintenance and cleansing of exterior wall of high-rise building.
3.Construction, inspection, repair and maintenance of large project, for instance: chimney, dam, bridge and head frame.
4.Welding, cleansing and oil-painting of large ship.
5.Fabrication and installation of bulletin board on buildings at heights.

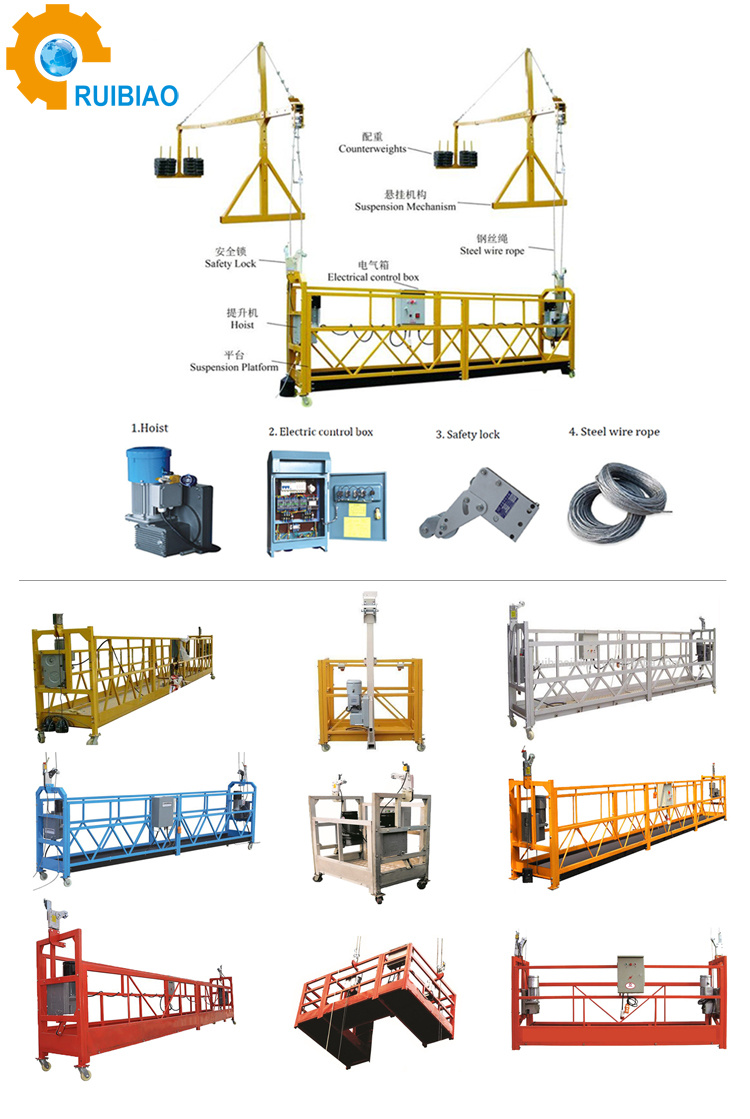

F.Component of the suspended platform

Suspended platform is mainly conmposed by suspension mechanism, hoist, safety lock, electric control box, working platform.
Its structure is reasonable and easy to operate. It can be make-up and break-out according to the actual need.
The suspended platform is mainly used for refurbishment, decoration, cleaning and maintenance of high construction building
