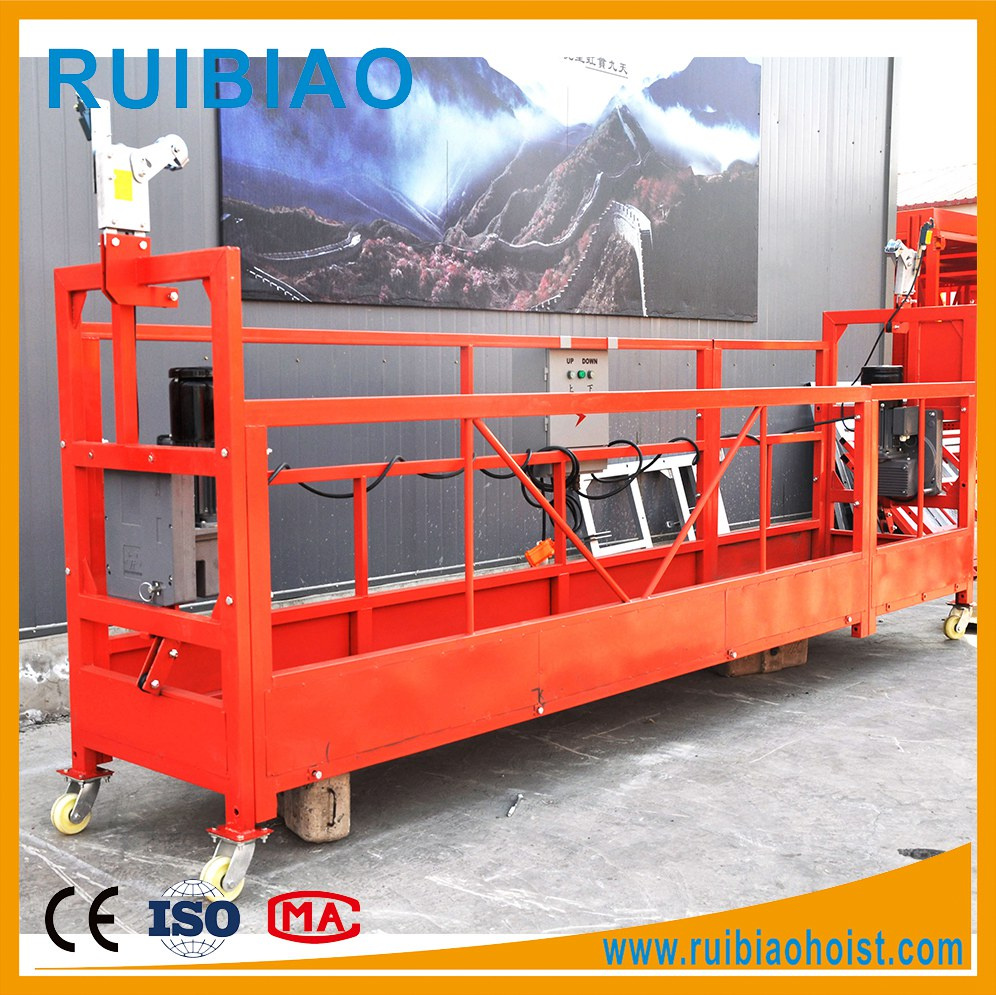

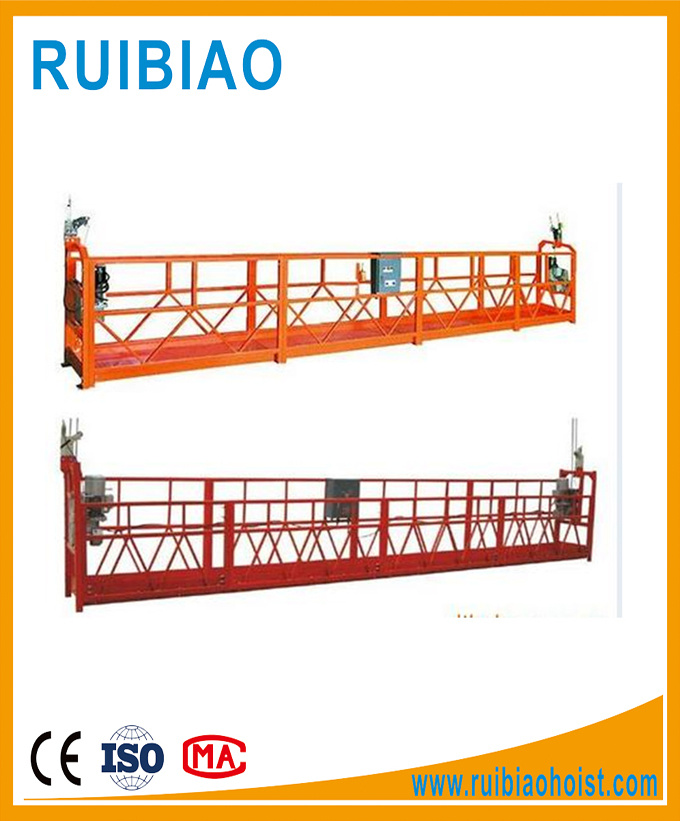

Zlp800 Carbon Steel Suspended Platform with Power Cable
| Price: |
US $ 1000-1300/Set |
| Trade Terms: |
FOB |
| Min Order: |
5/Set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
ZLP800 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Lifting Speed: |
8~10m/Min |
| Packages: |
Wooden Case out Packing |
| Shipping: |
by Sea |
| Shipping Period: |
14 Working Days Upon Payment Arrived |
| Minimium Order Quantity: |
1 Set |
| Country Of Original: |
China |
| Loading Port: |
Shanghai & Qingdao |
| Voltage: |
220~380V |
| Lifting Height: |
100m |
| Frequency: |
50~60Hz |
Product Description

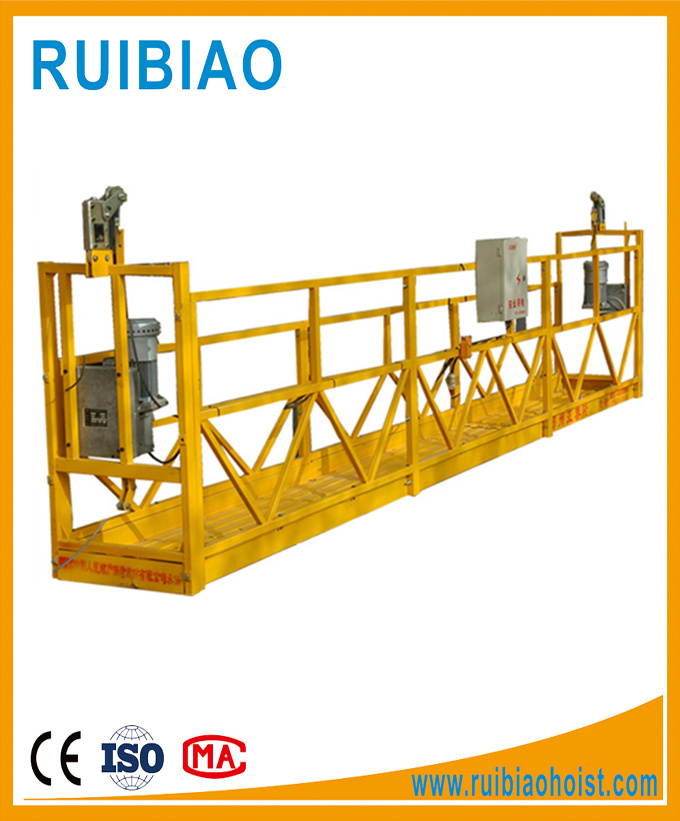

High-Rise Buildings Suspended Platform
ZLP630 platform is intended for temporary applications for lifting people and their working equipment - at unlimited heights.
The model perfectly suited to lightweight applications such as painting and decorating, refurbishing, jointing and repairs, windows cleaning etc.
The complete system consists of the working platform equipped with two electric LTD hoists and the support wheels, suspended by means of steel wire ropes from a suspension structure.
Safety systems
To ensure safe operation without danger to personnel, the platform is fitted with the following safety devices:
1) Service brake incorporated in the LTD hoist.
2) Two fall arrest devices (Anti-tilt LSF safety lock) acting on the safety wire ropes.
3) Overload sensor incorporated in the LTD hoists according to EN 1808. (Option)
4) Two upper limit switches.
5) No power descent in case of power failure.
6) Emergency stop.
7) Phase controller. (Option)
Technical Information
The perfectly suited to lightweight applications such as painting and decorating, refurbishing, jointing and repairs, windows cleaning, ...
The main para. Of ZLP630 suspended platform:
1) No power descent in case of power failure.
2) Emergency stop.
3) Phase controller. (Option)
4) Rated Load: 630kg
5) Lifting Speed: 9m/min
6) Voltage-3Phase: 380V/ (415V/220V)
7) Frequency: 50Hz/60Hz
8) Power: 1.5kw×2
9) Hoist: LTD63
10) Safety Lock: LSF308
11) Dia. of Wire Rope: 4×31SW+FC-8.3mm
12) Platform Size: (2×3)×0.76×1.45m
13) Weight of Suspension Jibs: 340kg
14) Weight of Lifting Part: Aluminum310kg/Steel 450kg
15) Counter Weight: 900kg
Platform Suspension
The different variants are to be distinguished by their suspension principles. Three different stirrups allow to choose the platform the best to your requirements (type of work, type of building, maximum loads, number of persons).
End stirrup:
Fitted at the ends of the platform.
Advantages:
The most economical and lightweight version, although showing extraordinary performances.
"Frame" stirrup:
Slipped over the platform like a "frame".
Advantages:
The ends of the platform and therefor the building corners are clear and can be easily accessed, exchangeable with the upper part of the end stirrup.
"L" stirrup:
Placed at the rear of the platform behind the workers.
Advantages:
The working surface is completely clear and the whole façade can be easily accessed.
Anchoring Options
The platform applies to all types of suspension which are manufactured according to the current standards and recommendations. The EN 1808 stipulates a safety factor of 3 for anchor points and suspension structures. Rigid offers a complete range of suspension structures which can be fitted on different types of roofs: the suspension jibs or the parapet clamp.
In most applications, it is possible to use a system of mobile suspension jibs in the roof for the attachment of temporary suspended platforms.
Double-Deck Platform
The ZLP platform can be eily transformed in a double-deck platform using especially designed attachment rods.
| Tpye | ZLP250 | ZLP500 | ZLP630 | ZLP800 | ZLP1000 |
| Rated Load | 250 kg | 500 kg | 630 kg | 800 kg | 1000 kg |
| Lifting speed | 9m/min | 9m/min | 9m/min | 9m/min | 8.7m/min |
| Voltage-3phase | 380V(415V/220V) | 380V(415V/220V) | 380V(415V/220V) | 380V(415V/220V) | 380V(415V/220V) |
| Frequency | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz |
| Power | 1.1×1 | 1.1×2 | 1.5×2 | 1.8×2 | 1.8×2 |
| Hoist | LTD50 | LTD50 | LTD63 | LTD80 | LTD100 |
| Safety Lock | LSF308 | LSF308 | LSF308 | LSF309 | LSF310 |
| Dia. of Wire Rope | 4×31SW+FC-8.3mm | 4×31SW+FC-8.3mm | 4×31SW+FC-8.3mm | 4×31SW+FC-9.1mm | 4×31SW+FC-10.2mm |
| Platform Size(L×W×H) | 1.2×0.65×2.3M | (2.5×2)×0.76×1.45M | (2×3)×0.76×1.45M | (2.5×3)×0.76×1.45M | (2.5×3)×0.76×1.45M |
| Weight of Suspension Jibs | 170kg | 340kg | 340kg | 340kg | 340kg |
| Weight Of Lifting Part | 200kg(Steel) | 410kg(Steel) | 450kg(Steel) | 520kg(Steel) | 520kg(Steel) |
| 140kg(Aluminum) | 290kg(Aluminum) | 310kg(Aluminum) | 340kg(Aluminum) | 340kg(Aluminum) |
| Counter Weight | 350kg | 800kg | 900kg | 1000kg | 1200kg |
| 20`GPQty Of Package | 13 | 12 | 10 | 8 | 8 |
| The weight of lifting part includes platform, hoist, safety locks and electric control system. |
Descrition:ZLP series suspended platform belongs to electrical-driven climbing and decorating machinery, mainly used to decorate, maintain and clean the external walls of high-level mutil-storey buildings and exterior construction such as cement coating, veneer, paints, installing the glass curtain walls, painting as well as cleaning and maintainence. Also can be applied to the operating of big vessels and bridges, dams etc.
Applying this product can release scaffold free, reduce the costruction cost and the efficiency will be greatly increased. Mean while, the production is simple flexible, easy teansfer, easy to operate, safe and and reliable.

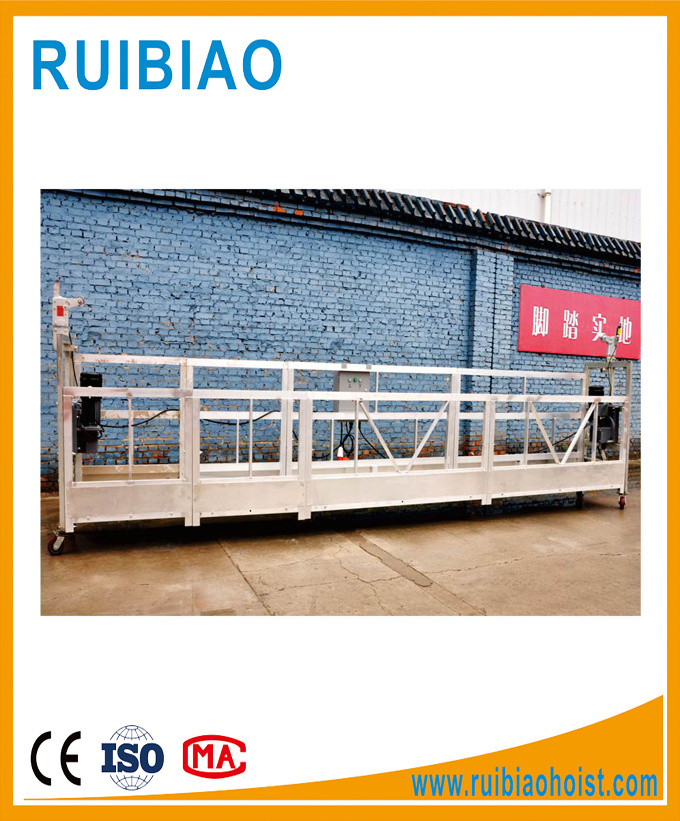

In addition to the advantages of a steel one , the aluminum alloy suspending platform has special advantages:
1:Without painting and galvanizing on surface
2:Protecting of the surface oxygen membrane on the surface can be rust-proof, anti-corrosion.
3:Light weight, 65% lighter than the same model of steel one.
4:Increase in the efffective load and imprive the ability of anti-capsize.
5:Transporting and installing are easier and labor saving.
6:With bright silver gray color, good outlook.
Therefore, the aluminum alloy suspending platform will be more and more popular product in future. Applications:ZLP series suspended platform belongs to electrical-driven climbing and decorating machinery, mainly used to decorate, maintain and clean the external walls of high-level mutil-storey buildings and exterior construction such as cement coating, veneer, paints, installing the glass curtain walls, painting as well as cleaning and maintainence. Also can be applied to the operating of big vessels and bridges, dams etc.
Specifications:| Name | Technical parameter |
| Model | ZLP1000 |
| Rated load | 1000Kg |
| Lifting speed | 8-10m/min |
| Platform Dimension L×W×H(mm) | 7500(2.5*3m)×720×1300 |
| Lifting Height | 100 m |
| Cable | 100 m |
| Steel rope (specially-made) | Ф9.1mm |
| Hoist | Power | 2.2KW*2 |
| Voltage | 380V/50HZ |
| Safety lock | Permission force of impact | 30KN |
| Locking Cable Angle | 3°~8° |
Suspension mechanism
Galvanized | Front beam overhang | 1.3~.1.5m |
| Support adjustable height | 1.44~2.14m |
| Counterweight | 1200KG |
| 20'ft container | 8 sets |
Competitive Advantage:Climing Principle- The suspended platform climbs up along the wire rope driven by the hoist. Without wraping up the wire rope, there is no limit on the height of climing in theory. Hoist- Using the "α"structure, the reliability of the hoist is high, and the service life is long.Safety rope and safety lock- Two safety ropes are set independently. The suspended platform is set with safety locks. When the platform goes acclivitous, the hoist system gets major faults or ropes are broken off and falling, the safety locks will lock the wire ropes to ensure the safety of the operator and the machine.Combination of the basket- According to customers' requirements, the paltform can be combined in different forms and easy to transport.Multiple flexible suspension mechanism- The suspension mechanism is applicable to different types of roofs and conveniently to delivery. Convenient and reliable electrical control system- The electrical control system is equipped with protection switchs, operators can choose single- machine operation or two-machine operation system. It is equiped with movable operation box, external power box and the limit equipment against going up.Reasonable designed structure and Attractive appearance- The steel structure is applied with thin-wall and rectangle steel pipe, compact and rational designed.Additional Information
| Payment Terms | L/C, T/T |
| Minimum Order | 1pc |
| Lead Time / Delivery Time | 3 Day(s) |
| Sample Available | YES |
| Delivery Details | we have stock,normally we can delivery the goods within 3days. |
| Packing Info | steel shelf |
| Target Market(s) | Africa(except Middle East), Central & Southern Asia, Latin America, Mainland China, Middle East, Southeast Asia |
Parameter:| Type | ZLP1000 | ZLP800 | ZLP630 | ZLP500 |
| Rated load | 1000kg | 800kg | 630kg | 500kg |
| Lifting speed | 9m/min | 9m/min | 9.3m/min | 9.3m/min |
| Suspension Platform Size | (2.5m*3)*0.76m*1.45m | (2.5m*3)*0.76m*1.45m | (2m*3)*0.76m*1.45m | (2.5m*2)*0.76m*1.45m |
| Max. lifting height | 100m | 100m | 100m | 100m |
| Rope | Model | 4*31SW+FC-9.2 | 4*31SW+FC-9.1 | 4*31SW+FC-8.3 | 4*31SW+FC-8.3 |
| Length | 4*31SW+FC-9.1 | 100m*4 | 100m*4 | 100m*4 |
| Diameter | 9.2mm | 9.1mm | 8.3mm | 8.3mm |
| Lifting machine | Model | LTD100 | LTD80 | LTD63 | LTD50 |
| Pulling power | 7.84KN | 7.84KN | 6.17KN | 6.17KN |
| Motor | Model | YEJ100L-4 | YEJ100L-4 | YEJ90L-4 | YEJ90L-4 |
| Power | 1.8KW*2 | 1.8KW*2 | 1.5KW*2 | 1.5KW*2 |
| Voltage | 380V | 380V | 380V | 380V |
| Rotational speed | 1420rpm | 1420rpm | 1420rpm | 1420rpm |
| Bracking moment | 15Nm | 15Nm | 15Nm | 15Nm |
| Security Lock | Model | LSF309 | LSF309 | LSF308 | LSF308 |
| Permission force of impact | 30KN | 30KN | 30KN | 30KN |
| Lock Cable Angel | 3°-8° | 3°-8° | 3°-8° | 3°-8° |
| Suspension machanism | Weight | 180kg*2 | 180kg*2 | 180kg*2 | 180kg*2 |
| Adjustable height | 1.15-1.75m | 1.15-1.75m | 1.15-1.75m | 1.15-1.75m |
| Front beam overhang | 1.3-1.5m | 1.3-1.5m | 1.3-1.5m | 1.3-1.5m |
| Support adjustable height | 1.44-2.14m | 1.44-2.14m | 1.44-2.14m | 1.44-2.14m |
| Weight suspended platform | Steel | 590kg | 530kg | 480kg | 410kg |
| Aluminum | 430kg | 380kg | 340kg | 290kg |
| Counterweight | 25*50KG | 25*40KG | 25*36KG | 25*30KG |
