| Price: | US $ 1000-20000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | T/T,Western Union,Money Gram |
| Prod Model: | KET-VLP/XLP Series |
|---|---|
| Place Of Origin: | Jiangsu(Mainland), China |
| Voltage: | 220V |
| Working Pressure: | 700bar |
| Power: | 50Hz |
| Press Capacity: | 10--200t |
| Certifiacation: | Ce&ISO9001:2008 |
| OEM: | Yes |
| Cylinder Stroke: | 156-330mm |
| Product Name: | 5-200 Ton Bench and Workshop Presses |
| Weight: | 49-1992kg |
| Type: | High-Speed Punching Machine |
| Automatic Grade: | Automatic |
| Power Source: | Electric |
| Precision: | High Precision |
| Punch Shape: | - |
| Slider Movement: | - |
| Slider Drive Mechanism: | - |
| Controlling Mode: | - |

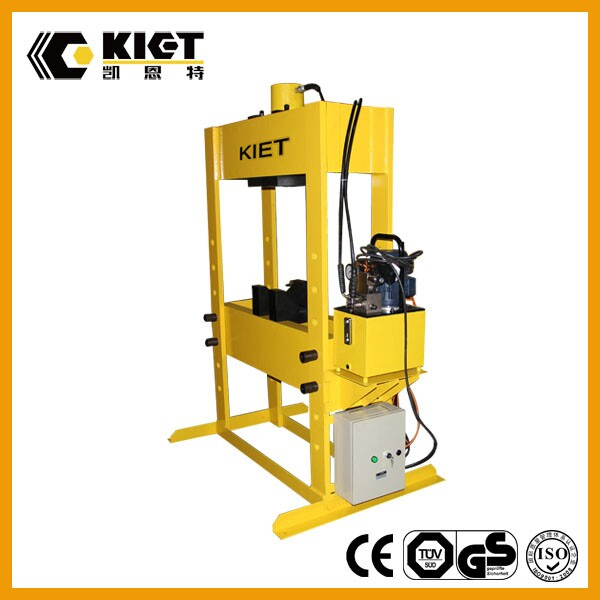

10-200 Ton Bench And Workshop Presses
Jiangsu Canete Machinery Manufacturing Co.,Ltd
Product Description
* All presses equipped with long life Golden Ring Design cylinder XLP-Series presses;
*Multi-functional presses in kie form(50 ton and 75 ton presses)
* Easy grip forlift access on 50 and 75 ton presses
*Height adjustoment of upper or lower bed with winch(50&75 ton)
*Width adjustment allows cylinder to move from side- to - side
*VLP-series presses:
Unique "Hydrajust"bed positioning device on 100 and 200 ton. VLP seies presses allows adjustment of the lower bed.
Parameter
| Press Model Number | Press Capacity ton (kN) | Maximum Daylight (mm) | Power Source | Cylinder | Weight (kg) | |||||||
| Vertical | Horizontal | Pump Type | Valve Type | Pump Model Nr. | Stroke (mm) | Cylinder Model Nr. | ||||||
| Man. | Elec. | Air | Man | Elec. | ||||||||
| VLP-106P142 | 10 (101) | 430 | 432 | P-142 | 156 | RC-106 | 49 | |||||
| VLP-106PAT1 | 430 | 432 | PATG-1102N | 156 | RC-106 | 54 | ||||||
| XLP-256P392 | 25 (232) | 1225 | 510 | P-392 | 158 | RC-256 | 165 | |||||
| XLP-256XA11G | 1225 | 510 | XA-11G | 158 | RC-256 | 170 | ||||||
| XLP-506P802 | 50 (498) | 993 | 990 | P-802 | 159 | RC-506 | 595 | |||||
| XLP-506XA12G | 993 | 990 | XA-12G | 159 | RC-506 | 600 | ||||||
| XLP-506ZES | 993 | 990 | ZE4410SE-E050 | 156 | RR-506 | 660 | ||||||
| XLP-5013ZES | 993 | 990 | ZE4410SE-E050 | 334 | RR-5013 | 700 | ||||||
| XLP-756XA12G | 75 (718) | 989 | 990 | XA-12G | 156 | RC-756 | 900 | |||||
| VLP-1006ZES | 100 (933) | 989 | 990 | ZE5420SW-E050 | 168 | RR-1006 | 970 | |||||
| VLP-10013ZES | 989 | 990 | ZE5420SW-E050 | 333 | RR-10013 | 993 | ||||||
| VLP-20013ZES | 200 (1995) | 1340 | 1220 | ZE6420SW | 330 | RR-20013 | 1992 | |||||

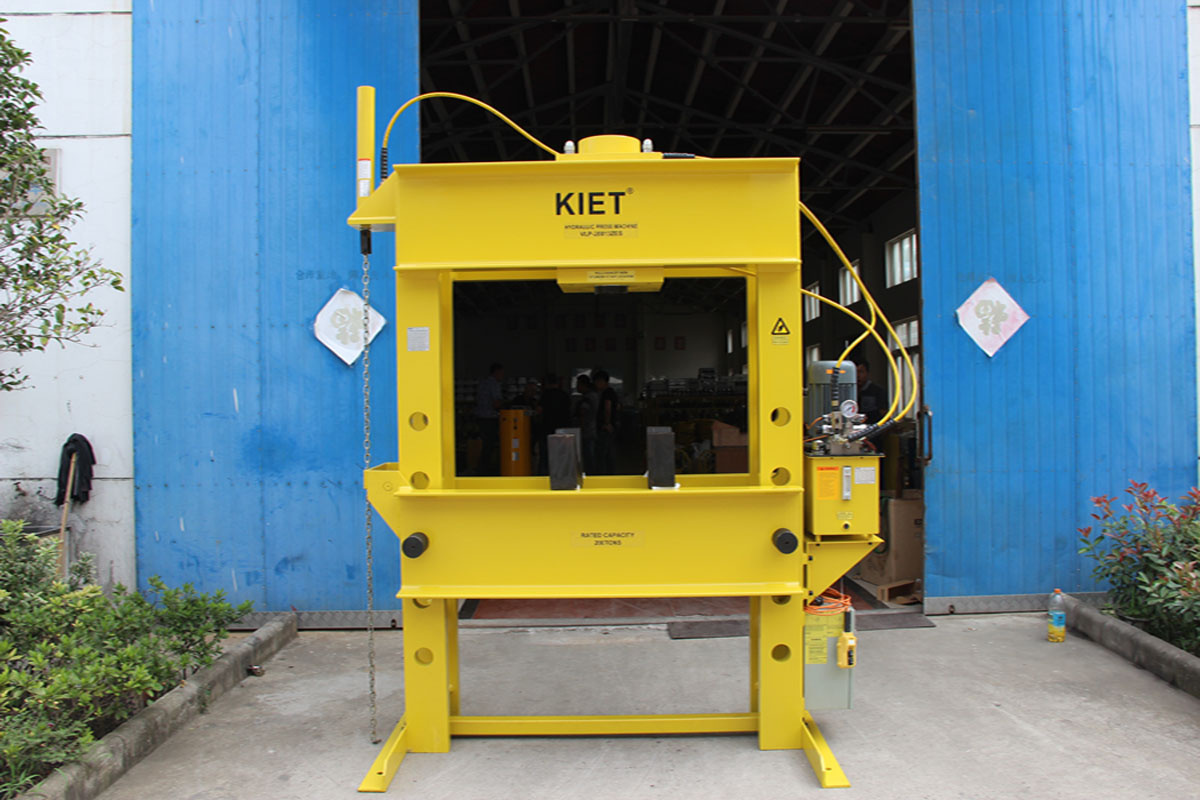

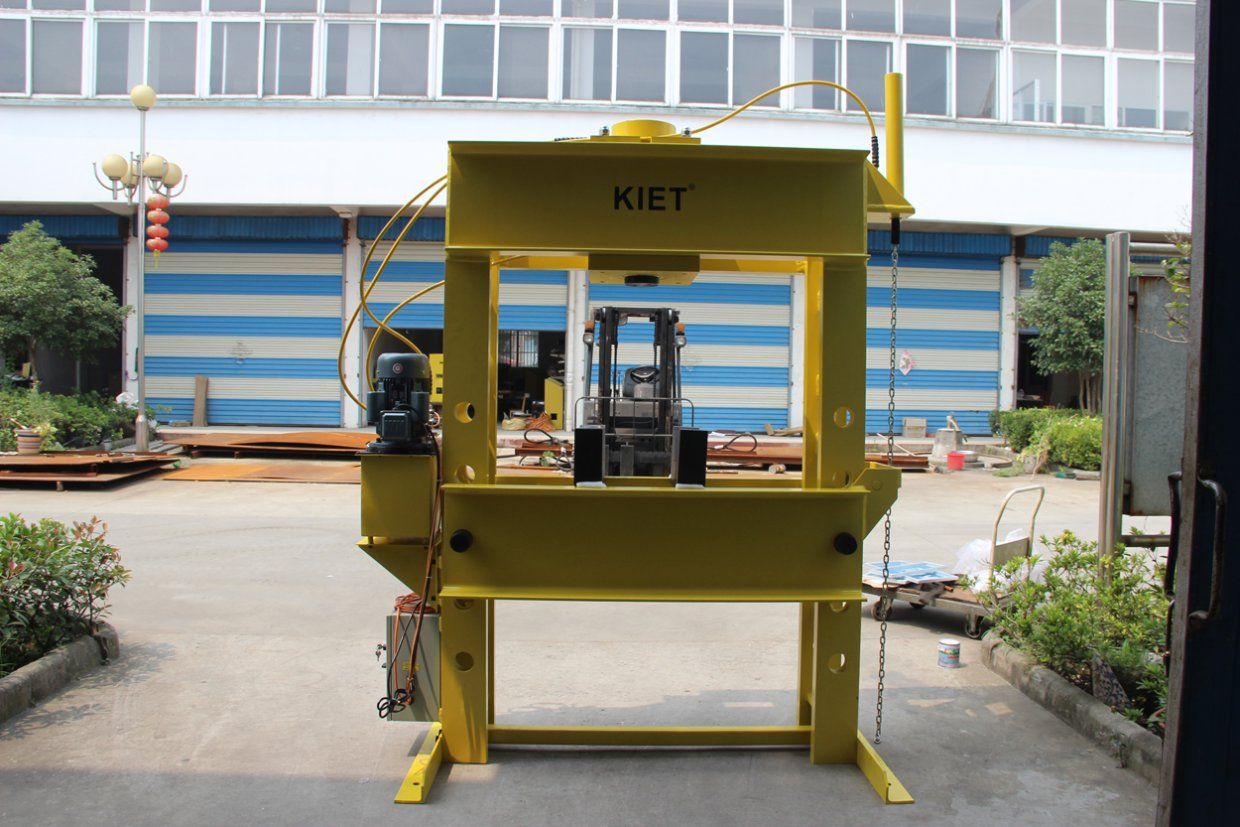

Photos:
Packaging & Shipping
KIET provide one year guarantee for all the hydraulic press machine, We promise if there is any Problems of the hydraulic press Machine during the quality warranty not by outside force, we will replace a new one for free. Any quality defects reported by customers will be responded in 24 hours.
We successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand KIET, and our factory has been approved by CE, ISO9001:2008 consecutively.
Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.

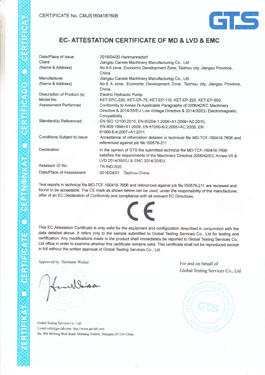

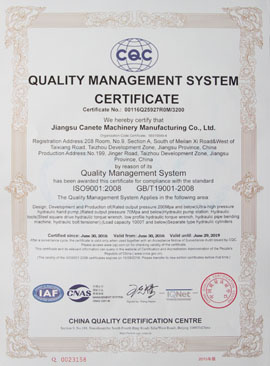

Certificates:
CE, ISO9001:2008
We are a manufacturer in Hydraulictools, such as:
Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)
Hydraulic pumps, manual and electric type (max up to 3000bar);
Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
Hydraulic nut and couplings. (M50-Tr1000)
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
