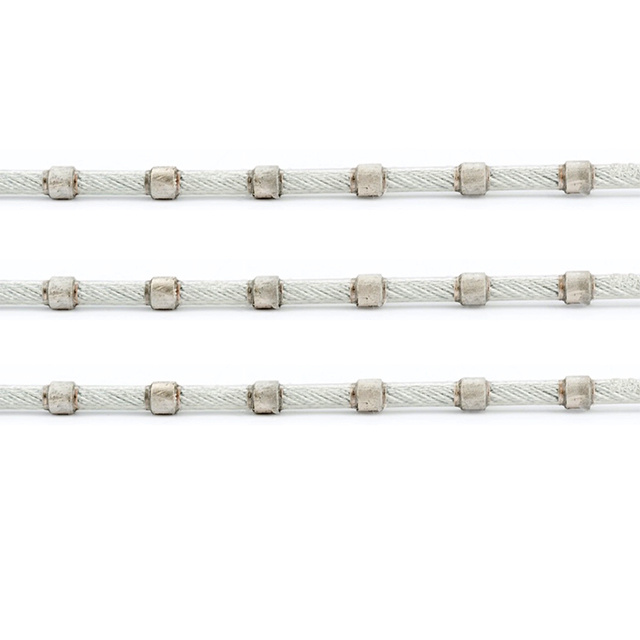

10.5mm or 11mm Diameter Mono Diamond Wire for Marble Block Cutting
| Price: |
US $ 32-38/Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
40/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union |
| Prod Model: |
ROC-MS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Reinforcement: |
Plastic and Steel Cable |
| Type Of Beads: |
Sintered |
| Beads Diameter: |
11mm or 10.5mm or 10mm |
| Beads Per Meter: |
33bpm or 37bpm |
| Cutting Speed: |
80-200cm/Hour Down Speed |
| Cutting Life: |
35-90m2/Lm |
| Wire Saw Recommended: |
Mono Wire Saw |
| Linear Speed: |
30-40m/S |
| Net Weight: |
0.30kgs/Lm |
Product Description
DescriptionDiamond Wire Saw with platic reinforcement and 33 or 37BPM of diameter 10.5mm or 11mm for block cutting or squaring of Marble/Travertine and Limestone:
The plastic reinforced diamond wire has been widely introduced for cutting marble block in factory, with advantages as below:- The diamond wire allows for cutting the large size block
- Thinner cutting slot and more precise to increase output from block;
- By virtue of its reliability, adjust the cutting techniques according to different stone material;
- Noise nuisance generated by diamond wire saw is significantly less than produced by other sawing techniques and less pollution
Technical DataPARAMETERS OF KEENTOOL DIAMOND WIRE SAW FOR CUTTING MARBLE BLOCK ON MONO WIRE SAW MACHINE:| APPLICATIONS | Art No | Specification (mm) | Beads/M | Reinforcement |
| To be widely used for marble/travertine/limestone block trimming in the factory | ROC-MS110P | ¢11.0×6.0 | 37 | Plastic |
| ROC-MS105P | ¢10.5×6.0 | 37 | Plastic |
| Cutting Material | Linear Speed (M/S) | Down Speed (CM/H) | Cutting Life
(M2/M) |
| Soft | 30-40 | 120-200 | 55-90 |
| Medium | 30-40 | 100-160 | 45-75 |
| Hard | 30-40 | 80-120 | 35-55 |
| SPECIFICATION OF BEADS | Out Diameter | Length of work layer (mm) | Bead Length | Manufacture Tech |
| ¢11.0 | 6.0 | 11 | Sintered |
| ¢10.5 | 6.0 | 11 | Sintered |
Keentool Diamond Wire with Features&Advantages as below: - Keentool studies the marble to be cut to design the bond, number of beads per meter;
- Keentool wires use the top quality steel cable from Germany
- KEENTOOL wires use the Bayer or BASF plastic grains from Germany, and the most advanced plastic injection equipment and system to make sure our diamond wire can work with stable performance till the end
Packaging & Shipping: Packaging: Carton with water proof plastic.
Meters/Roll: 50/60Meters/Roll
NW: 17KG-18.5KG
Sample lead time: In 3 working days.
Delivery time: In 14 days for quantity of 1000 Meters diamond cutting wire
Our Services:1. Diamond Wire Cutting Operation Training and Guidance
2. Full Consulting Service and Turnkey Solutions for the Stone Quarry
Always at your service!
Quanzhou Keen Diamond Tool Co., Ltd is one of the leading manufacturer of series machinery and diamond tools for natural stone quarry, processing and civil construction work, which has very good presentation in Europe, North&South America, Southern Africa, Middle East and Asian.
We are committed to professional total solution and package supply for natural stone quarry and controlled demolition of civil construction:
1. For stone Quarry:
Package supply of quarry machinery and consumables for quarries of granite, marble, sandstone, limestone, travertine and slate, such as Wire saw machine, DTH Drill, block trimming wire saw, diamond wire, generators and air compressors etc.
Consultant service for project evaluation, quarry development and mining construction
Consultant and marketing service for block distribution
2. For stone Factory:
Total solution and package supply of machinery and diamond tools for stone cutting, profiling, drilling and polishing, such as block cutting machine, bridge circular saw machine, bridge eage cutting machine, static stationary wire saw machine; Diamodn wire, diamond blade, diamond segments, diamond core drill, diamond fickert, diamond cup wheels and diamond polishing tools etc.
3. For civil construction:
Total solution and consult service for wire cutting of civil construction like old buildings, bridge, dams, highway, rail way, steel structure and underwater cutting of kinds of pipes.
Package supply of machinery, diamond wire and other consumables for wire cutting of civil construction
Diamond blade for cutting concrete, reinforced concrete and asphalt
Diamond Core Drills for concrete reinforced concrete, wall and asphalt
Diamond polisher for polishing of concrete floor, wall and blocks
The core values of our company is to create value for customers, provide opportunities for staff and make benefits for the society. Our principle for business is customer-oriented and quality first. Keen looks forward to cooperating with you.
