Coating:
Rubber+Flat Spring
Beads Per Meter:
40 PCS
Diameter:
10.5/11.5mm
Length:
50/60 Meters/Roll
Weight:
About 18kgs
Delivery Time:
Within 5 Working Days for 500 Meters
Certification:
SGS
Graininess:
Diamond Wire
Thickness:
11.5/10.5mm
Product Description
Description: We, Keen Diamond Tool Co. Ltd is one of the leading manufacturer of diamond wires and wire saw in China, all of them have been proced in competitive performance in USA, Brazil, Sweden, Germany, France, South Africa, Middle East, Thailand etc.
For concrete and reinforced concrete, we will recommend our wire of ABRASIVE-G635#-A with 40beads of diameter 11.5mm and fixed with strong rubber + flat spring between each two beads. Please find the performance of our wire for your kind reference as below:
Application 1: For cutting the road base or bridge (Concrete: C50; Density of steel 3-5%, Diameter of steel: 12mm screwed) Cutting speed: 3-5M2/Hour Cutting life: 4-5M2/LM
Application 2: For the railway bridge (Concrete: C50; Density of Steel: >5%; Diameter of Steel: 32mm screwed, twin lines with 10cm distance) Cutting speed: 2-3M2/Hour Cutting Life: 2.5-3M2/LM

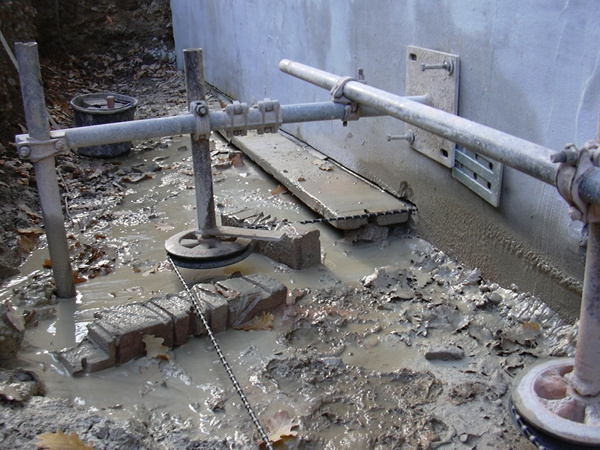

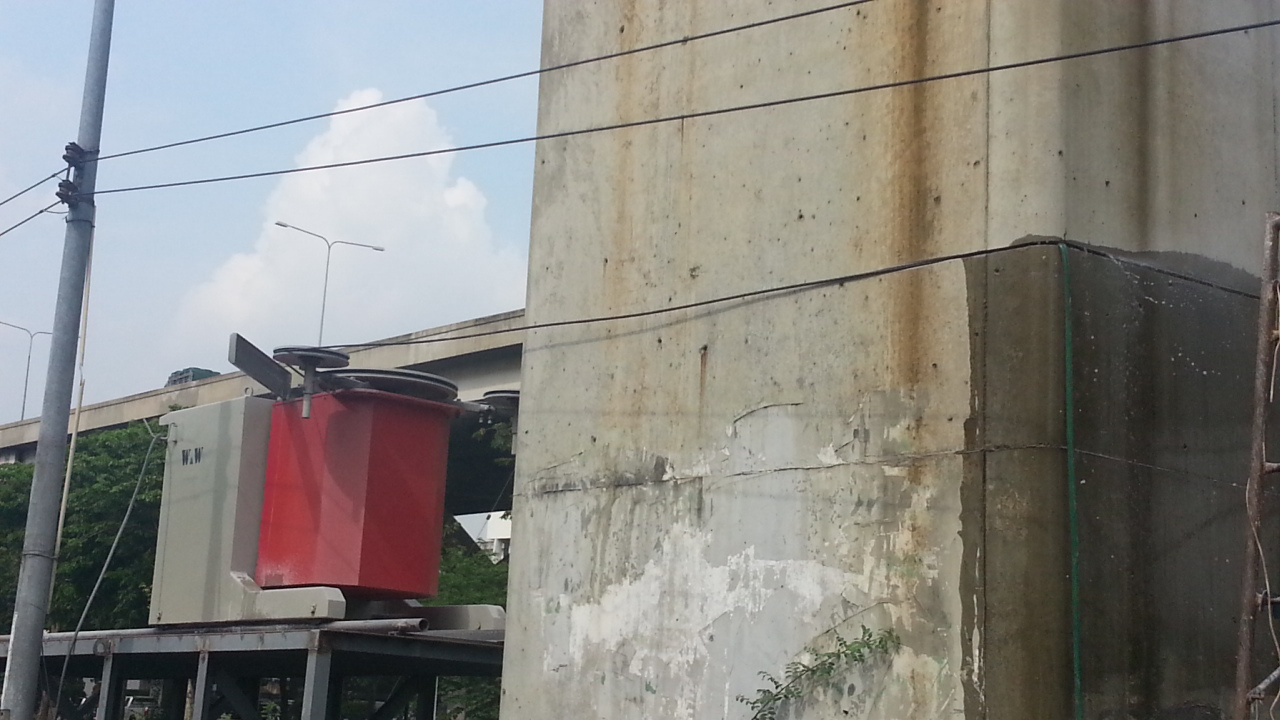

Application 3: For the Highway (Concrete: C50; Density of Steel: >5%; Diameter of Steel: 25mm screwed, twin lines with 15cm distance) Cutting Speed: 2-3M2/Hour Cutting Life: 4-6M2/LM Photos of working site: Technical Data: Wire Saw for Concrete/Reinforced Concrete/Steel Pipe:
APPLICATIONS
Art No
Specification (mm)
Beads/M
Reinforcement
To be widely used for cutting concrete, reinforced concrete and steel pipe
ROC-C115R
¢11.5×6.5
40
Rubber+Spring
ROC-C110R
¢11.0×6.5
40
Rubber+Spring
ROC-C105R
¢10.5×6.5
40
Rubber+Spring
Cutting Material
Linear Speed (M/S)
Cutting Speed (M2/H)
Cutting Life (M2/M)
Normal Concrete
25-28
3-5
3-7
Reinforced Concrete
22-25
1-3
1-3
Steel Pipe
18-20
0.5-1
0.5-1.2
SPECIFICATION OF BEADS
Out Diameter
Length of work layer (mm)
Bead Length
Manufacture Tech
¢11.5
6.5
11
Sintered
¢11.0
6.5
11
Sintered
¢10.5
6.5
11
Sintered
Packaging & Shipping: Packaging: Carton with water proof plastic. Meters/Roll: 50/60Meters/Roll NW: 17KG-18.5KG Sample lead time: In 3 working days. Delivery time: In 14 days for quantity of 1000 Meters diamond cutting wire.
Our Services: 1. Diamond Wire Cutting Operation Training and Guidance 2. Full Consulting Service and Turnkey Solutions for the Stone Quarry
Always at your service!
Quanzhou Keen Diamond Tool Co., Ltd is one of the leading manufacturer of series machinery and diamond tools for natural stone quarry, processing and civil construction work, which has very good presentation in Europe, North&South America, Southern Africa, Middle East and Asian.
We are committed to professional total solution and package supply for natural stone quarry and controlled demolition of civil construction:
1. For stone Quarry:
Package supply of quarry machinery and consumables for quarries of granite, marble, sandstone, limestone, travertine and slate, such as Wire saw machine, DTH Drill, block trimming wire saw, diamond wire, generators and air compressors etc.
Consultant service for project evaluation, quarry development and mining construction
Consultant and marketing service for block distribution
2. For stone Factory:
Total solution and package supply of machinery and diamond tools for stone cutting, profiling, drilling and polishing, such as block cutting machine, bridge circular saw machine, bridge eage cutting machine, static stationary wire saw machine; Diamodn wire, diamond blade, diamond segments, diamond core drill, diamond fickert, diamond cup wheels and diamond polishing tools etc.
3. For civil construction:
Total solution and consult service for wire cutting of civil construction like old buildings, bridge, dams, highway, rail way, steel structure and underwater cutting of kinds of pipes.
Package supply of machinery, diamond wire and other consumables for wire cutting of civil construction
Diamond blade for cutting concrete, reinforced concrete and asphalt
Diamond Core Drills for concrete reinforced concrete, wall and asphalt
Diamond polisher for polishing of concrete floor, wall and blocks
The core values of our company is to create value for customers, provide opportunities for staff and make benefits for the society. Our principle for business is customer-oriented and quality first. Keen looks forward to cooperating with you.
