Prod Model: |
SB250 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Max. Depth Of Cut At 90 Degrees: |
82mm |
Max. Depth Of Cut At 45 Degrees: |
60mm |
Cutting Width With Table Extension: |
750mm |
Cutting Width Without Table Extension: |
150mm |
Saw Blade / Bore Size: |
30mm |
Table Size: |
635X430mm |
Type: |
Circular Saw |
Layout: |
Horizontal |
Controlling Mode: |
Artificial |
Automatic Grade: |
Manual |
Precision: |
Precision |
Certification: |
CE |

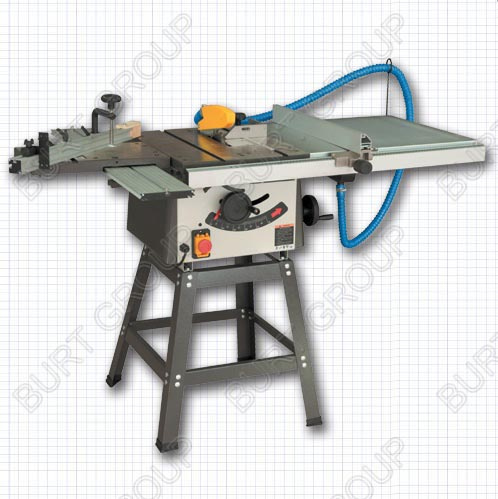

Product Description
Main Feature: Cast iron table and sliding table, 1500W induction motor fitted01) Table size: 635x430mm
02) With table extensions: 635x1030mm
03) Saw blade / bore size: 30mm arbor, 254mm dia.
04) Motor: 1500w
05) Blade speed: 4750 RPM
06) Max. Depth of cut at 90 degrees: 82mm
07) Max. Depth of cut at 45 degrees: 60mm08) Cutting width with table extension: 750mm
09) Cutting width without table extension: 150mm
10) Coupling joint for vacuum exhaust: 65/25mm
11) Weight: 83/93kgs
12) Over Size:
13) Package size (Three cartons per machine):
A) 760x460x460mm, B) 1020× 110× 180mm, C) 620× 70× 580mm
Table size | 635x430mm |
With table extensions | 635x1030mm |
Saw blade / bore size: 30mm arbor, | 254mm dia |
Motor | 1500w |
Blade speed | 4750 RPM |
Max. depth of cut at 90 degrees | 82mm |
Max. depth of cut at 45 degrees | 60mm |
Cutting width with table extension | 750mm |
Cutting width without table extension | 150mm |
Coupling joint for vacuum exhaust | 65/25mm |
Weight | 83/93kgs |
Package size (Three cartons per machine) | A) 760x460x460mm |
B) 1020×110×180m | C) 620×70×580mm |
