| Prod Model: |
MLA110&MLA215AS |
| Frequency Response(-3dB): |
60Hz-18kHz(Mla110);40Hz-200kHz(Mla215s) |
| Woofer-Mla110: |
1X10"(250mm)/3" Voice Coil Woofer |
| Driver-Mla110: |
1X1.4"(36mm)/3" Voice Coil Tweeter |
| Woofer-Mla152as: |
2X15"(385mm)/3" Voice Coil Woofer |
| Rated Power-Mla110: |
250W RMS, 1000W Peak |
| Sensitivity: |
101dB 1 Watt/1 Meter |
| Impedance: |
8 Ohms Nominal |
| Maximum Spl: |
122dB Continuous, 128dB Peak |
| Dispersion(-6dB): |
Horizontal:100° |
| Crossover Frequencies: |
1.3kHz Passive |
| Noise: |
<102dB |
| Hi-Fi: |
Not Hi-Fi |
| Operation Mode: |
Wire / Remote Control |
| Speaker System: |
Optional Combination |
| Speaker Material: |
Wood |
| Application: |
Commercial |
| Certification: |
RoHS |
| THD: |
<0.005% |
| Monitor: |
No Screen |
Product Description

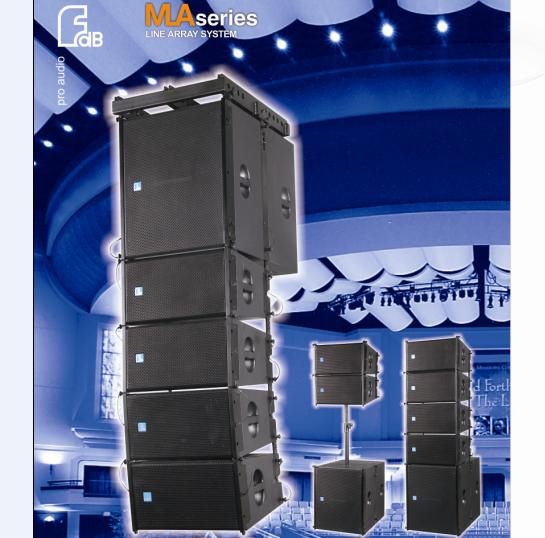

Features:The MLA110 is a medium scale line array loudspeaker for long throw distance scale sound reinforcement, uses the MLA110 flying frame which can be flown in vertical columns up to 16 cabinets. MLA110 is a 2-way design housing fitted with two 10" neodymium LF driver and one 1.4" neodymium HF driver coupled to a patent line array horn, made of high quality plywood.
The MLA152AS is an active dual 15" low frequency enclosure designed for sub-bass reinforcement to MLA110,uses 3 channels digital amplifier with DSP.It made of high quality plywood with polyurea waterproof paint.
Features:1. High quality NEODYMIUM components
2. Patent line array horn
3. High quality plywood with special paint
4. Bi-amp and passive way choice
5. Small cabinet with light weight
6. Convenient for bracket and fixed installation
7. Good chioce for conference room, multi-purpose hall, high-end hotes and moving performance
Main Product Introduction: 1.Line Array System: LA series, MLA series
2. Monitor System : MR series
3. PA two-way loudspeaker system: U series,QS series, FT series
4. Multi-purpose MINI System: MINI series
5. Column system: K series
6. Plastic system: CX series
7. Long through system: LT series
8. Karaoke sytem: IW series, PR series and KW series
9. Active Series: KS and U Active series
10. Electronice products: amplifier and processor
Factory Introduction:FDB Audio Manufacture Co., Ltd is specialized in researching, developing and manufacturing in PRO audio products. The main products are professional transducers(HF driver & woofer), speaker cabinets and electronic products like amplifiers and processors.
FDB Audio adopts the world' S top-aided software and advanced techonoloy, owns advanced production equipments and testing apparatus, establishes cooperation development mechanisms with a number of world top grade materials and accessories manufacturers. Some important materials are imported from abroad, like voice coil, diaphragm and paper cone.
FDB Audio has established and strictly enforced the standard quality management system in accordance with ISO 9001: 2008. "Strictly enforce sound processes and standards, full quality control and customer satisfaction" is the quality policy.
Mr. Harry Xia is the boss of FDB Audio, graduated from Physical department of Zhenzhou University. He is engineer, has done proaudio district more than 20 years. He once worked for R&D department of the state-run speaker factory in Henan province about 3 years after graduating university, then worked for a Taiwan speaker factory in Guangdong about 2 years. After that, he joined Elder Audio as the sole engineer, factory manager and also one shareholder of this factory, Thoman and Proel, they developed new models together. He worked for Elder audio about 9 years, quitted by the end of 2005 and established FDB Audio in Jan of 2006.
During 11 years effort, FDB Audio has gained good feedbacks from local and overseas market. The customers said " The quality is very stable, reliability and consistency are very good".

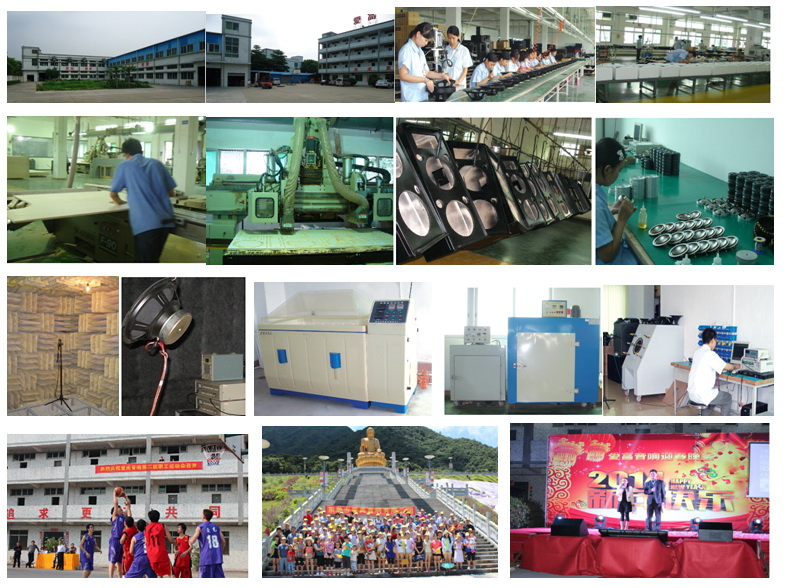

Factory Pictures:
Factory Contacts:Tel: 0086-(0)769- 22781217-826
Fax: 0086-(0)769-22781297
Web:
www.fdbaudio.com MLA110
| FREQUENCY RESPONSE(-3dB) | 60Hz-18kHz |
| DRIVERS | 1×10"(250mm)/3"voice coil LF |
| 1×1.4"(36mm)/3"voice coil HF |
| RATED POWER | 250W RMS,1000W peak |
| SENSITIVITY | 98dB 1watt/1 metre |
| MAXIMUM SPL | 122 dB continuous,128 dB peak |
| IMPEDANCE | 8 ohms nominal |
| DISPERSION(-6dB) | Horizontal: 100° |
| CROSSOVER FREQUENCIES | 1.3kHz passive |
| INPUT CONNECTORS | 2×Speakon NL4 |
| PACKING SIZE | 525mm×410mm×640mm |
| NET WEIGHT | 19kg/pc |
| GROSS WEIGHT | 21.5 kg/pc |
FDB Audio Manufacture Co., Ltd is specialized in researching, developing and manufacturing in PRO audio products. The main products are professional transducers(HF driver & woofer), speaker cabinets and electronic products like amplifiers and processors.
FDB Audio adopts the world' S top-aided software and advanced techonoloy, owns advanced production equipments and testing apparatus, establishes cooperation development mechanisms with a number of world top grade materials and accessories manufacturers. Some important materials are imported from abroad, like voice coil, diaphragm and paper cone.
FDB Audio has established and strictly enforced the standard quality management system in accordance with ISO 9001: 2008. "Strictly enforce sound processes and standards, full quality control and customer satisfaction" is the quality policy.
Mr. Harry Xia is the boss of FDB Audio, graduated from Physical department of Zhenzhou University. He Is engineer, Has done proaudio district more than 20 years. He once worked for R&D department of the state-run speaker factory in Henan province about 3 years after graduating university, then worked for a Taiwan speaker factory in Guangdong about 2 years. After that, he joined Elder Audio as the sole engineer, factory manager and also one shareholder of this factory, once cooperated with BOSE, Thoman and Proel, they developed new models together. He worked For Elder audio About 9 years, quitted by the end of 2005 and established FDB Audio in Jan of 2006.
During 11 years effort, FDB Audio Has gained good feedbacks from local and overseas market. The customers said " The quality is very stable, reliability and consistency are very good
