1000Mbps 15.4W 1GX+ 8 PoE Ports Ethernet Network POE Switch
| Price: |
US $ 85-104.5/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
SCSWG2-1108PF |
| Electric Port: |
8 Poe Ports( Supply 15.4W/Port) |
| Fiber Optical Port: |
1 (1000m 1*9/SC) single fiber |
| Distance: |
25km ( 40/60/80/100/120 Optinal) |
| Power: |
DC 48V 2A(12-56V DC) External |
| Srandard: |
802.3, 802.3u, 802.3X, 802.3z/ab,802.3af |
| Inclouding SFP Module: |
No |
Product Description
1.Product Description(SCSWG2-1108PF)8*PoE Port + 1*Fiber uplink port, POE ethernet Switch ( SCSWG2-1108PF) This products supply power to devices such as WiFi access points, VoIP phones and IP security cameras while accepting datas.The product is possessed of stable performance, excellent quality and reasonable price. It is applicable to used in constructing of Optical Fiber Ethernet network.
Datas can be transmitted far to 120km(on SFP) from the fiber port. 2.Main Features(SCSWG2-1108PF)
8GE(PoE port) +1GX Save Cost By Buying From Manufacturer Directly.100% Brand New.Metal case not plastic while excellent process.MINI - type metal shell.POE supply distance far to 100M, uplink distance:25km
Support 15.4V (optional/port).
Test and identify devices which meet IEEE802.3af and supply power for it.
Intelligent power management. Auto MDI/MDIX,Full-duplex & Half-duplex.Uplink port lightning protection.Store-and-forward.Panel lights shows operation suitation.MTBF: > 70000 Hours.Support Hot swapping.Installation: Desktop, wall mounted (optional). 3.Technical Parameters(SCSWG2-1108PF)
| Item No: | SCSWG2-1108PF |
| Size(WxHxD): | 18.4*9.6*2.8 |
| Weight: | 1 kg (Gross Weight) |
| Product form & Performance |
| Fiber connector: | 1* 1000M 1*9, SC connector (Single module single fiber)
Distance: 25KM (40/60/80/100/120 optional-consult to us pls) |
| Ethernet connector: | 8* 10/100/1000M UTP RJ45 PoE ports
PoE: 15.4W / port
Distance: 100M (Use standard UTP) |
| Function | Back-plane bandwidth: | 20Gbps |
| Packet forwarding rate: | 13.4MPPS |
| MAC table entries: | 2K |
| Electrical Index |
| Lightning protection index : | -2kV |
| Environmental | Relative humidity: | 5% ~ 90% No condensation |
| Operating temperature: | 0ºC ~ 50ºC |
| Storage temperature: | -20 ~ 70ºC |
| Power: | DC48V 2A
(external Adapter: need buy one adapter to match it.) |
| Power waste: | <150W |
| MTBF: | >70000 Hours |
| Safety Standards |
| Industry standard | EMI: FCC Part15 Class A |
| EMS: EN61000-4-2(ESD), EN61000-4-3(RS), |
| EN61000-4-4(EFT),EN61000-4-5(Surge), EN61000-4-6(CS), |
| EN61000-4-7(Common mode conduction) |
| Industry: IEC6100-6-2 |
| Railway: EN50155. EN50121-4 |
| Transportation: NEMA TS-2 |
| Coal industry: GB/T3836.1/2/3/4 |
| Machinery: IEC68-2-6/27/32 |
| Technical protocol: | IEEE802.3, IEEE802.3u, IEEE802.3x |
| IEEE802.3ab/z |
| IEEE802.3af |

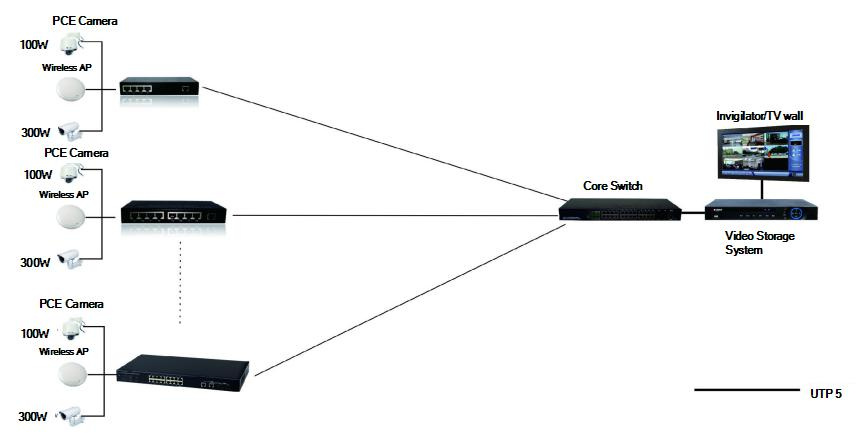

4.Application Diagram(SCSWG2-1108PF)

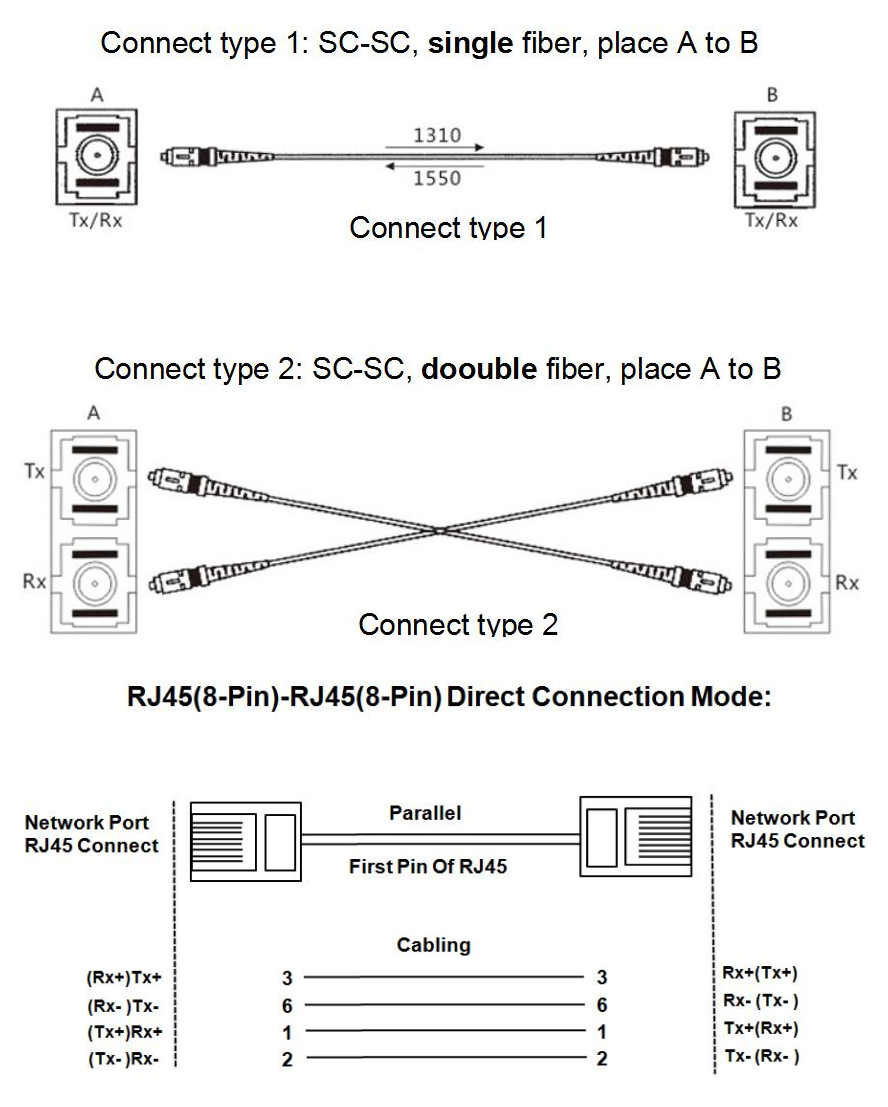

Pls note the connect way as below:
5. Packing details(SCSWG2-1108PF)
*Packaging Details: Packing boxes: 33.5*16.5*6 cm 1kgs/box CTN size: 51.5*35*35.5 cm 15pcs/ctn, GW:15 kgs/ctn Can be ordered as your demand. (to be confirmed) *Packaging & Delivery: shipped in 3-5 workdays after receiving cleared payment.*Packing pictures:
Remark:* All importing duties and taxes are the responsibility of the buyer.* Items dispatched to buyer's Delegate confirmed address from Monday to Friday (Weekend& Holiday excluded)* Please kindly check your shipping address carefully before checkout. If you want to change the address, please kindly contact us Otherwise, any change of information may be disregarded once dispatched. 6. About Price(SCSWG2-1108PF)All the price is in EXW Hangzhou price. So all the other free like Express cost, Shipping cost, Premium, the tariff and tax are all in customer's duty. Not FOB price. 7. Warranty&Returns(SCSWG2-1108PF) l We provide 1 year guarantee(free) and Livelong maintenance(not free)warranties.l Our warranty does not cover misuse, physical damage, water damage, loss, or theft. l All purchases may be returned within14 days from the date of purchase for a full refund or exchange.l All products must be in their original condition.l Merchandise which is damaged or missing components is not refundable.All the freight cost beside leading from quality problem are on the buyer's side. 8. FAQ(SCSWG2-1108PF)Q. How many experiences do you have in this industry?A. We have been being manufacturing network switch for almost 10 years.Q. Are you a factory or a trading company?A. We are a factory. We design manufacture and sell network switches. Q. What is the MOQ?A. 1pcs, we can direct sell to world wide. Q. Can I get a lower price if I order large quantities?A. Yes, lower price depends on quantity. Customer can get discount for large order. Q. When you ship my order?A. 1-3 working days for sample orders. More than 3 working days for bulk orders. Q. How about the quality grantee period?A. Our standard quality grantee period is 1 year. Q. Can I be your agency in my local?A. Welcome, please contact us for details.
