100Mbps Network Switch-Saicom(SC-330602M), Hostel Building Visual intercom
| Price: |
US $ 52-85/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
SC-330602M |
| Electric Port: |
6 (10/100m RJ45) |
| Fiber Optical Port: |
2 (LC/SFP slot ) Single Module |
| Distance: |
25km ( 40/60/80/100/120 Optinal) |
| Power: |
DC 5V 2A External |
| Srandard: |
802.3, 802.3u, 802.3X,802.1q/p/d |
Product Description
1.Product Description(SC-330602M)6*RJ45 Port + 2*LC/SFP slots Port fast Ethernet Switch ( SC-330602M) It applys to Broadband community, security
IP camera, Wireless AP, and IP Phone and easy for network transmission. The product is possessed of stable performance, excellent quality and reasonable price. It is applicable to use in constructing of Optical Fiber Ethernet network.It is a Carrier-grade managment switch. Used fo setting up Link/Ring network: Self-healing, Fast recovery from fault diagnosis, Backup link. 2.Main Features(SC-330602M)
6FE + 2*LC/SFP slots .
| 1>Metal case not plastic while excellent process. | 10> 100% Brand New. |
| 2>Save Cost By Buying From Manufacturer Directly. | 11> Self recovery fuse. |
| 3>Support EAPS (healing time < 30 ms). | 12> aluminum shell. |
| 4>Auto MDI/MDIX, Full-duplex & Half-duplex. | 13> MINI - type solid |
| 5>Broadcast storm suppression | 14> Plug-and-play. |
| 6>LC 25KM(Collocate SFP, can up to 120KM.) . | 15> Indicator lights. |
| 7>Resist electromagnetic interference. | 16> MTBF: > 70000 Hours. |
| 8>Telegraphic grade quality,high quality with CE&FCC. | 17> Redundance power source. |
| 9>Seting up Link/Ring network. | |
Installation: Desktop, wall mounted (optional)
3.Technical Parameters(SC-330602M)
| Item No: | SC-330602M |
| Size(WxHxD): | 20.7*10.7*4.1 cm |
| Weight: | 0.75 kg (Gross Weight) |
| Product form & Performance |
| Fiber connector: | 2* 100M LC/SFP, slot (FC/ST/LC, SFP optional) |
| Ethernet connector: | 6* 10/100M UTP RJ45 connectors |
| Distance: | 25KM (sing mode sing/double fiber-- optional based SFP) |
| Function | Back-plane bandwidth: | 1.2Gbps * |
| Packet forwarding rate: | 1MPPS * |
| MAC table entries: | 1024 * |
| Electrical Index |
| Lightning protection index : | Usually ≥ -2kV |
| Environmental | Relative humidity: | 5% ~ 90% No condensation |
| Operating temperature: | 0~ 50ºC (ordinary) |
| Storage temperature: | -20 ~ 70ºC |
| Power: | DC 5V 2A External |
| Power waste: | <10W |
| MTBF: | >70,000 Hours |
| Safety Standards |
| Industry standard | EMI: FCC Part15 Class A |
| EMS: EN61000-4-2(ESD), EN61000-4-3(RS), |
| EN61000-4-4(EFT),EN61000-4-5(Surge), EN61000-4-6(CS), |
| EN61000-4-7(Common mode conduction) |
| Industry: IEC6100-6-2 |
| Railway: EN50155. EN50121-4 |
| Transportation: NEMA TS-2 |
| Coal industry: GB/T3836.1/2/3/4 |
| Machinery: IEC68-2-6/27/32 |
| Technical protocol: | IEEE802.3 10BASE-T Ethernet |
| IEEE802.3u, 10/100Base-TX and 100Base-FX |
| IEEE802.3x, 802.1q/p/d |

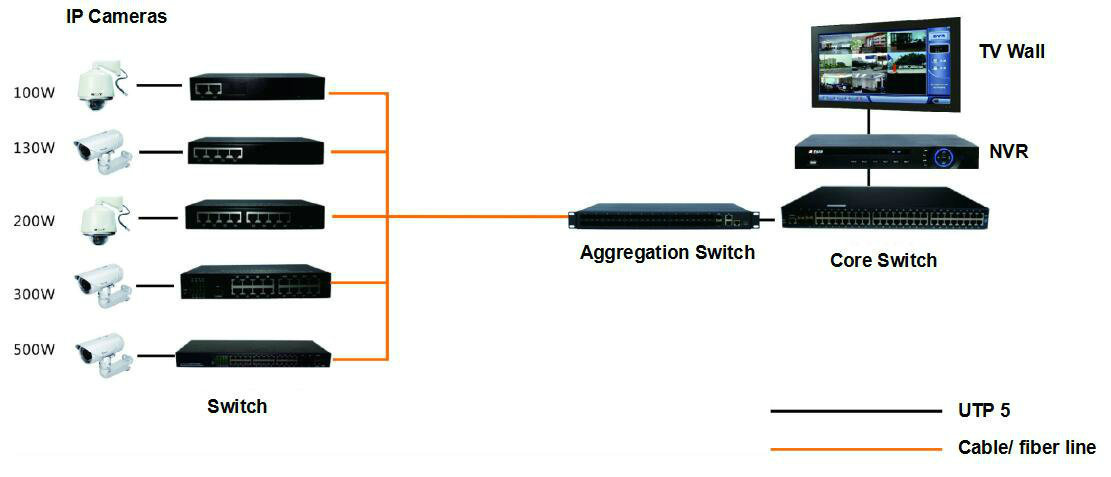

4.Application DiagramSC-330602M
Booking reference:same ports QTY in different mode and optical fiber.
| Item No | Brief Introduction |
| SCM-F2SS12 | 1FX+2FE: (1*100M fiber mode +2*10/100M RJ45 port)
SC/1*9 sing mode sing fiber 25km, desktop External power |
| SCM-F2SS22 | 1FX+2FE: (1*100M fiber mode +2*10/100M RJ45 port)
SC/1*9 sing mode dual fiber 25km, desktop External power |
| SCM-F2SM12 | 1FX+2FE: (1*100M fiber mode +2*10/100M RJ45 port)
SC/1*9 multi-mode sing fiber 550m, desktop External power |
| SCM-F2SM22 | 1FX+2FE: (1*100M fiber mode +2*10/100M RJ45 port)
SC/1*9 multi-mode dual fiber 550m, desktop External power |
5. Packing details(SC-330602M)
*Packaging Details: Packing boxes: 33.5*16.5*6 cm 0.75kgs/box
CTN size: 51.5*35*35.5 cm 15pcs/ctn, GW:12 kgs/ctn
Can be ordered as your demand. (to be confirmed)
*Packaging & Delivery: shipped in 3-5 workdays after receiving cleared payment.
*Packing pictures:
Remark: * All importing duties and taxes are the responsibility of the buyer.* Items dispatched to buyer's Delegate confirmed address from Monday to Friday (Weekend& Holiday excluded)* Please kindly check your shipping address carefully before checkout. If you want to change the address, please kindly contact us Otherwise, any change of information may be disregarded once dispatched.NOTE :Urgent demand,pls kind choose express like DHL,UPS,Fedex and so on.Because of listing constraints, we did not upload many items.Bulk Buyers ,Please Contact us Before Bidding 6. About Price(SC-330602M)All the price is in EXW Hangzhou price. So all the other free like Express cost, Shipping cost, Premium, the tariff and tax are all in customer's duty. Not FOB price. 7. Warranty&Returns(SC-330602M) l We provide 1 year guarantee(free) and Livelong maintenance(not free)warranties.l Our warranty does not cover misuse, physical damage, water damage, loss, or theft. l All purchases may be returned within14 days from the date of purchase for a full refund or exchange.l All products must be in their original condition.l Merchandise which is damaged or missing components is not refundable.All the freight cost beside leading from quality problem are on the buyer's side. 8. FAQ(SC-330602M)Q. How many experiences do you have in this industry?A. We have been being manufacturing network switch for almost 10 years.Q. Are you a factory or a trading company?A. We are a factory. We design manufacture and sell network switches. Q. What is the MOQ?A. 1pcs, we can direct sell to world wide. Q. Can I get a lower price if I order large quantities?A. Yes, lower price depends on quantity. Customer can get discount for large order. Q. When you ship my order?A. 1-3 working days for sample orders. More than 3 working days for bulk orders. Q. How about the quality grantee period?A. Our standard quality grantee period is 1 year. Q. Can I be your agency in my local?A. Welcome, please contact us for details.
