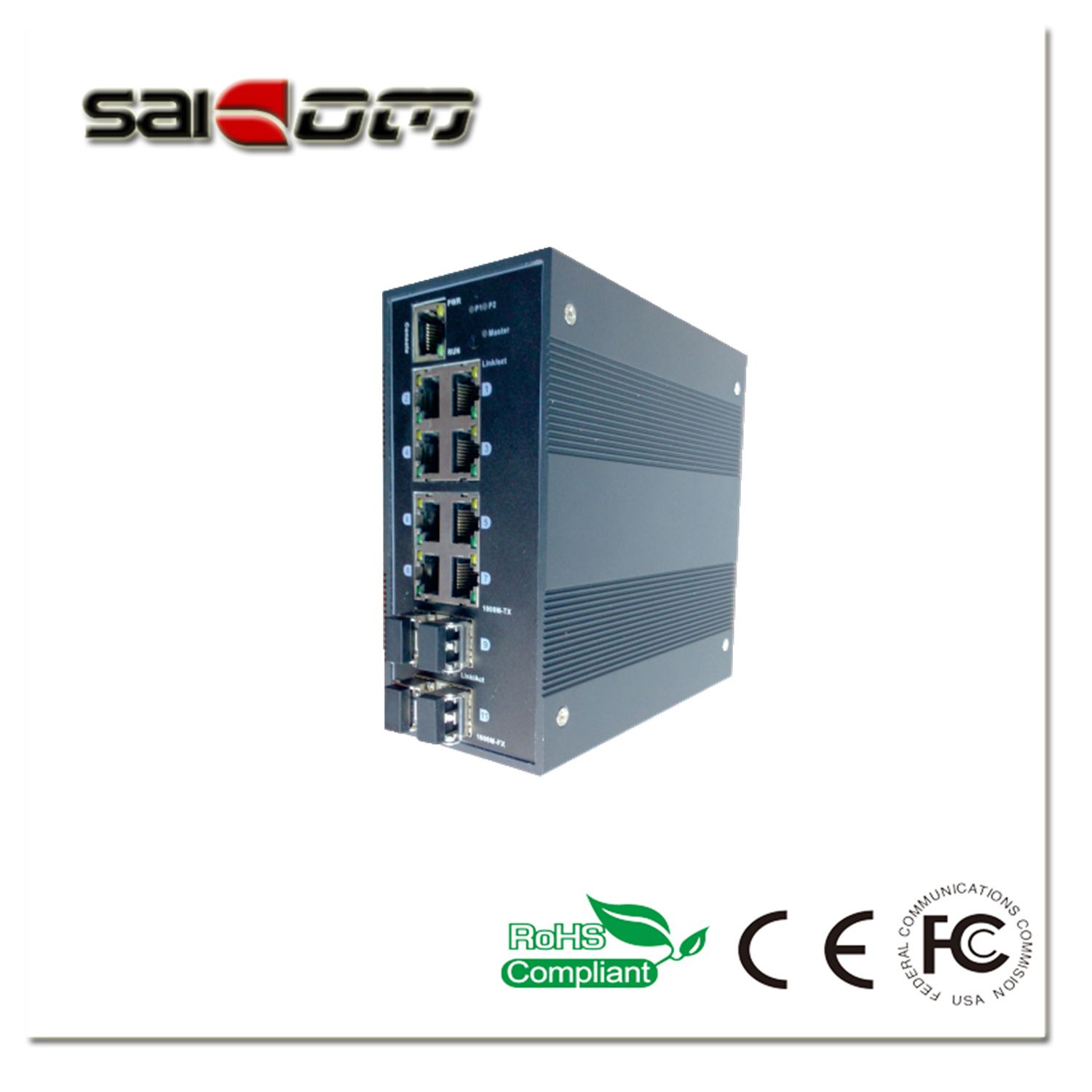

1000Mbps Intelligent/Smart 4GX/8GE Industrial Management Optical Network Switch
| Price: |
US $ 223.9-255.6/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
SCSWG2-12084M |
| Item Size: |
14.3*7*16.6cm |
| Electric Port: |
8*10/100/1000m RJ45 |
| Fiber Port: |
4*1000m SFP slots |
| Distance: |
20/40/60/80/100/120 depend on SFP module |
| Power: |
DC 12-56V out Put |
| Standard: |
802.3,802.3u,802.3X,802.3z,802.3ab,802.1q,802.3p |
Product Description
1.Product Description(SCSWG2-12084M)8*RJ45 Port + 4*SFP Port Gigabit
Industrial Management Optical Network Switch ( SCSWG2-12084M) This switch is a managed industrial switch . The series is designed for use in a wide range of operating temperatures in non-environmentally conditioned, industrial applications.Used fo setting up Link/Ring network: Self-healing, Fast recovery from fault diagnosis, Backup link. 2.Main Features(SCSWG2-12084M)
8GE +4GX (SFP slots) 100% Brand New.
Metal case not plastic while excellent process.
Self recovery fuse.
Save Cost By Buying From Manufacturer Directly.
MINI - type solid aluminum shell.
Support EAPS (healing time < 30 ms).
Supports ISL optional backbone connection.
Auto MDI/MDIX, Full-duplex & Half-duplex.
LC 25KM. (Collocate SFP, can up to 120KM.) .
MTBF: > 100000 Hours.
Plug-and-play.
Indicator lights.
IP40 protection grade.
Broadcast storm suppression.
TeleSeting up Link/Ring network.
Working temperature -40~ +85ºC.
Wall hung/Guide rail type (optional).
Strong ability to resist electromagnetic interference.
Redundance power source, 6 kv lightning protection. Industry grade quality,high quality with CE&FCC. Installation: Desktop, DIN-Guide Rail / wall mounted (optional)
3.Technical Parameters(SCSWG2-12084M)
| Item No: | SCSWG2-12084M |
| Size(WxHxD): | 14.5*7*16.5cm |
| Weight: | 0.9 kg (Gross Weight) |
| Product form & Performance |
| Fiber connector: | 4* 1000M SFP slots |
| Ethernet connector: | 8* 10/100/1000M UTP RJ45 connectors |
| Distance: | 20-120km Depends on SFP module(single mode) |
| Function | Back-plane bandwidth: | 10Gbps * |
| Packet forwarding rate: | 6MPPS * |
| MAC table entries: | 2K * |
| Electrical Index |
| Lightning protection index : | AC power port: differential mode ≥ -2kV, common mode ≥-4kV; service interface: common mode ≥-6kV |
| Environmental | Relative humidity: | 5% ~ 95% No condensation |
| Operating temperature: | -10~ 60ºC (ordinary),
-40~ 85ºC (wide range) |
| Storage temperature: | -20 ~ 70ºC |
| Power: | AC: N |
| DC: 48(12V~56V) (out put, Adapter: Buy one adapter to match it.) |
| Power waste: | <15W * |
| MTBF: | >100,000 Hours |
| Safety Standards |
| Industry standard | EMI: FCC Part15 Class A |
| EMS: EN61000-4-2(ESD), EN61000-4-3(RS), |
| EN61000-4-4(EFT),EN61000-4-5(Surge), EN61000-4-6(CS), |
| EN61000-4-7(Common mode conduction) |
| Industry: IEC6100-6-2 |
| Railway: EN50155. EN50121-4 |
| Transportation: NEMA TS-2 |
| Coal industry: GB/T3836.1/2/3/4 |
| Machinery: IEC68-2-6/27/32 |
| Technical protocol: | IEEE802.3 10BASE-T Ethernet |
| IEEE802.3u, 10/100Base-TX and 100Base-FX |
IEEE802.3x, IEEE802.3z, IEEE802.3ab,
IEEE802.1q, IEEE802.1p |

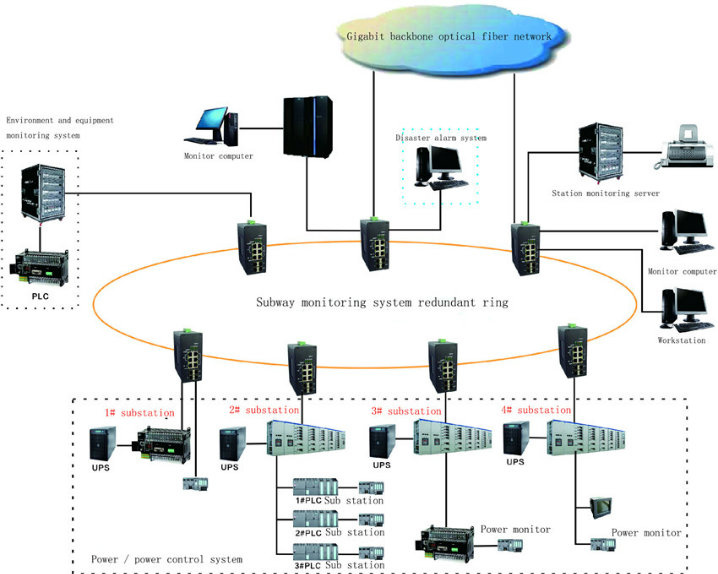

4.Application Diagram(SCSWG2-12084M)

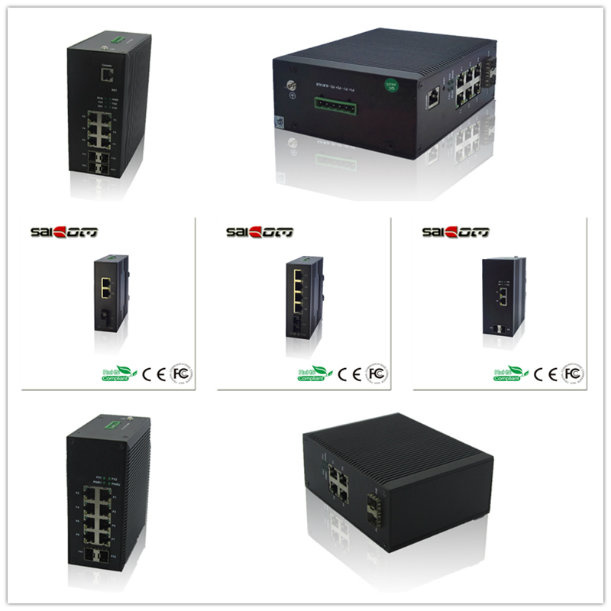

Saicom other similar Industry Network Management Switch: for your reference
5. Packing details(SCSWG2-12084M)
*Packaging Details: Packing boxes: 18.5*16.5*11.5 cm 0.9kgs/box CTN size:38*34*24.5cm 8pcs/ctn, GW:8kgs/ctn Can be ordered as your demand. (to be confirmed) *Packaging & Delivery: shipped in 3-5 workdays after receiving cleared payment.*Packing pictures:
Remark:* All importing duties and taxes are the responsibility of the buyer.* Items dispatched to buyer's Delegate confirmed address from Monday to Friday (Weekend& Holiday excluded)* Please kindly check your shipping address carefully before checkout. If you want to change the address, please kindly contact us Otherwise, any change of information may be disregarded once dispatched.NOTE :Shipping time varies from 3 to 25 workdaysUrgent demand,pls kind choose express like DHL,UPS,Fedex and so on.Because of listing constraints, we did not upload many items.Bulk Buyers ,Please Contact us Before Bidding 6. About Price(SCSWG2-12084M)All the price is in EXW Hangzhou price. So all the other free like Express cost, Shipping cost, Premium, the tariff and tax are all in customer's duty. Not FOB price. 7. Warranty&Returns(SCSWG2-12084M)* We provide 1 year guarantee(free) and Livelong maintenance(not free)warranties.* Our warranty does not cover misuse, physical damage, water damage, loss, or theft. * All purchases may be returned within14 days from the date of purchase for a full refund or exchange.* All products must be in their original condition.* Merchandise which is damaged or missing components is not refundable.All the freight cost beside leading from quality problem are on the buyer's side. 8. FAQ(SCSWG2-12084M)Q. How many experiences do you have in this industry?A. We have been being manufacturing network switch for almost 10 years.Q. Are you a factory or a trading company?A. We are a factory. We design manufacture and sell network switches. Q. What is the MOQ?A. 1pcs, we can direct sell to world wide. Q. Can I get a lower price if I order large quantities?A. Yes, lower price depends on quantity. Customer can get discount for large order. Q. When you ship my order?A. 1-3 working days for sample orders. More than 3 working days for bulk orders. Q. How about the quality grantee period?A. Our standard quality grantee period is 1 year. Q. Can I be your agency in my local?A. Welcome, please contact us for details.
