110V~415V Customized Free Mould Crimping Tools

Prod Model:	MT-WS
Crimping Range:	6~51 mm (1/4~2")
Quantity Of Dies:	10 Sets
Accuracy:	0.01 mm
System Pressure:	31.5 MPa
Motor Power:	3 Kw / 4 Kw 1 2 3 Phase (Optional)
Voltage:	220 V ~ 415 V 50/60 Hz (Optional)
Output Volume Of Pump:	2.5 L / 5 L / 10 L (Optional)
Crimping Force:	500 T
Efficiency:	200 PCS/H
Weight:	260 Kg

Product Description

110V~415V Customized Free Mould Crimping Tools



1.Brief introduction of product:
Crimping machine is a kind of hydraulic device which is used to withhold pipes & fittings. It could connect metal joints with the fitting hoses firmly, such as high pressure oil hose, brake pipes on cars, motor oil hose, AC hose, dynamic hose, etc. It could be used in extensive field, such as engineering machinery, vehicles, hydraulic machinery, welding and cutting equipment.

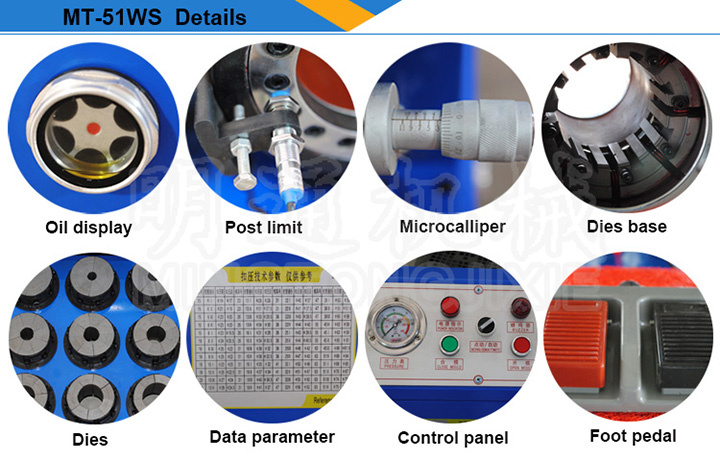

2.Product advantage:
1) Die Base: Chromium 12 material
2) Electric Cabinet: Low failure rate, Humanized circuit (CKT) design
3) Dies: Chromium 12 material, Low wear rate, No dies deformation
4) Hydraulic Valve: Domestic first-line brand, Low failure rate, Good performance
5) Oil Pump: Axial piston pump, High pressure, Low failure rate
6) Cylinder: High density carbon steel, Large diameter, Strong crimping force

3.Configuration Table

Crimping range	6~51mm ( 1/4~2" )
Quantity of dies	10 sets
Item No. of dies	15.19.23.26.31.36.41.47.55.60
Accuracy	0.01 mm
Output volume of pump	2.5 L / 5 L / 10 L (optional)
System pressure	26 MPa / 31.5 MPa (optional)
Motor power	3 kW / 4 kW  1 2 3 phase (optional)
Voltage	220 V ~ 415 V  50/60 Hz (optional)
Crimping force	500 T
Efficiency	200 pcs/h
Maximum open diameter	114 mm
The max open tolerance	± 30 mm
Machine dimension	730*480*740 mm
Package dimension	800*530*870 mm
Net weight	245 kg
Gross weight	260 kg

4.Crimping parameter reference

Inner Diameter of the hose	Dies No.	Layer of the wire	Before crimping	After crimping		Inner Diameter of the hose	Dies No.	Layer of the wire	Before crimping	After crimping
φ6	15	I	φ19	φ17		φ22	31	I	φ40	φ37
	15	II	φ21	φ18			31	II	φ41	φ37.5
	15	III	φ23	φ20			36	III	φ43	φ39.5
	15	IV	φ23	φ20			36	IV	φ44	φ40
φ8	15	I	φ23	φ19.5		φ25	36	I	φ43	φ39.5
	19	II	φ24	φ20.5			36	II	φ44	φ40.5
	19	III	φ25	φ22			36	III	φ46	φ42
	19	IV	φ25	φ22			36	IV	φ47	φ43
φ10	19	I	φ23	φ20		φ32	41	I	φ50	φ46
	19	II	φ25	φ22.5			41	II	φ51	φ47
	23	III	φ27	φ24			47	III	φ55	φ50
	23	IV	φ28	φ24.5			47	IV	φ56	φ52
φ13	23	I	φ29	φ26		φ38	47	I	φ53	φ50
	23	II	φ31	φ27.5			47	II	φ55	φ51.5
	26	III	φ33	φ29.5			47	III	φ60	φ56
	26	IV	φ34	φ30			55	IV	φ63	φ59
φ16	26	I	φ31	φ28		φ45	55	I	φ63	φ59
	26	II	φ34	φ30.5			55	II	φ65	φ61
	31	III	φ36	φ32			63	III	φ66	φ61.5
	31	IV	φ36	φ32.5			63	IV	φ68	φ64
φ19	31	I	φ35	φ32		φ51	63	I	φ68	φ65
	31	II	φ37	φ34			63	II	φ70	φ67
	31	III	φ40	φ36.5			63	III	φ74	φ70
	31	IV	φ41	φ37			63	IV	φ75	φ71

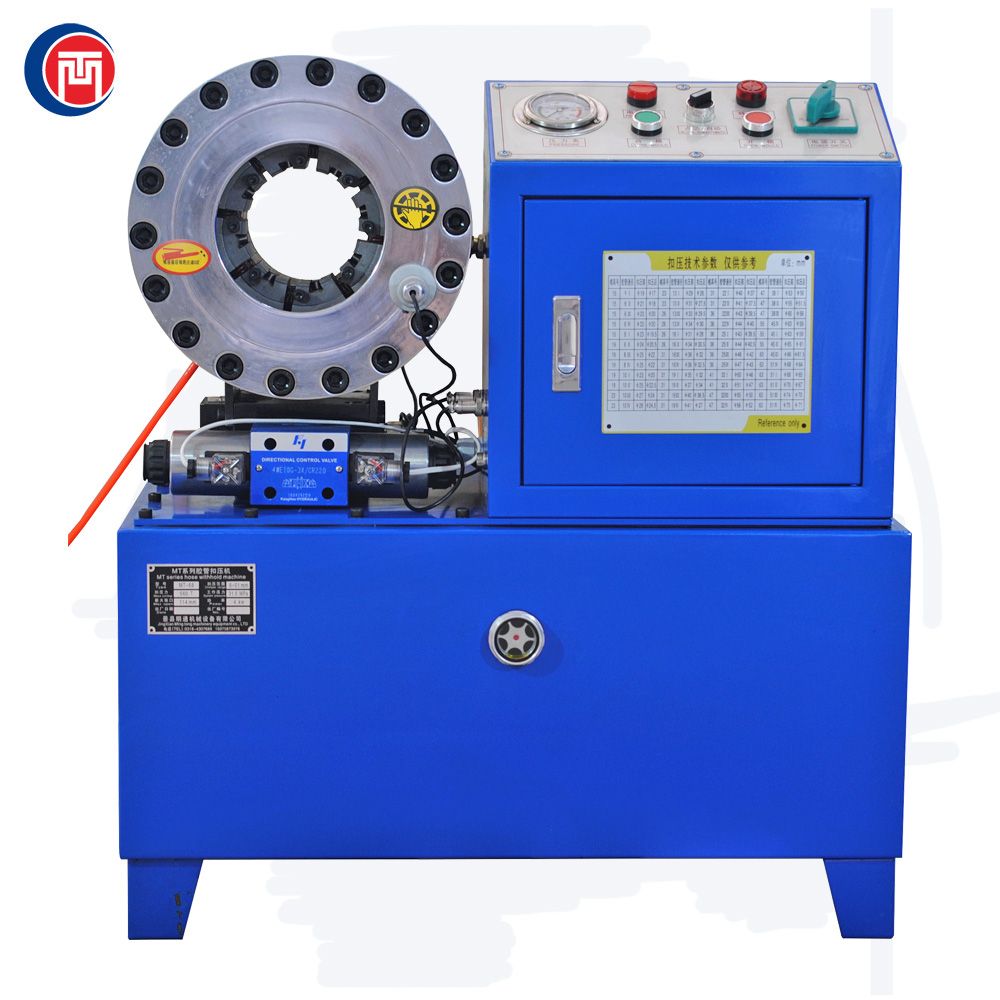

5.Impression drawing of products


6.Preparatory work before installation
1) Prepare 65L BP46# hydraulic oil in winter and BP68# in summer.
2) Prepare a 6mm cable to connect the machine and the general switch.

7.The procedure of setup operation and notice
1) In order to increase the lifetime of the crimping machine, and reduce the malfunction happens, please fuel the original BP46# hydraulic oil, or it will cause the problems of the reversal valve.
2) The electric cabinet must be opened and checked by skilled electricians. It will be easily for you to take the electric cabinet off by loosing the four screws when you plan to check it.
3) The rusted fitting and steel pipe can not be used. Warning, it will be dangerous if you have some impurity in Nose such as iron scrap , mud and sand, cotton and silk and so on. The slope between the mould seat and front board must be cleaned frequently.
4) Lubricate the front internal cone by little oil brush or oil squirt before using. (The butter and hydraulic oil mixed by 1:1). One or more times according to the workload.
5) Please put the work-piece into the mould when you plan to deal with it. Warning, do not let it out of the mould, or the mould will be destroyed .
6) In case of destroying or breaking off the mould , please do not use the mould out of the range.
7) Please take good care of your hands when operating the machine.
8) In order to avoid the Spring transforming, the mould base must be back to the original place when the crimping machine power off.
9) To avoid reducing the service life time of the machine, please turn off the general power switch after work.

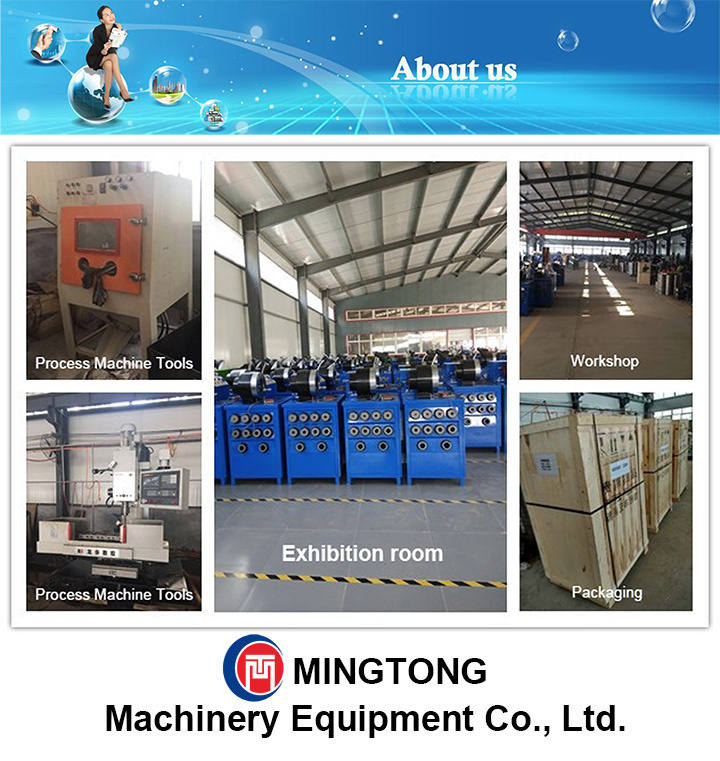

8.Company Profile


1) We are the professional manufacturer with 8 years experience in production of varies of hydraulic equipments. Our main products are Hose Crimping/Cutting/Skiving Machines. Besides, high pressure steel wire hose, low pressure hose, hydraulic fittings, rubber accessories, etc.
2) Widely used in industries of engineering machinery, agricultural machine, construction field, oil field, steel, shipbuilding, coal mine, etc.
3) Enterprise tenet: Quality first, integrity based, service paramount, forge ahead
Development: Scientific management, innovation and enterprising
Market: Super quality and competitive price, Keep up with the times
Service: Customer first, sincere and timely
Cooperation: Integrity based, mutual benefit and win-win

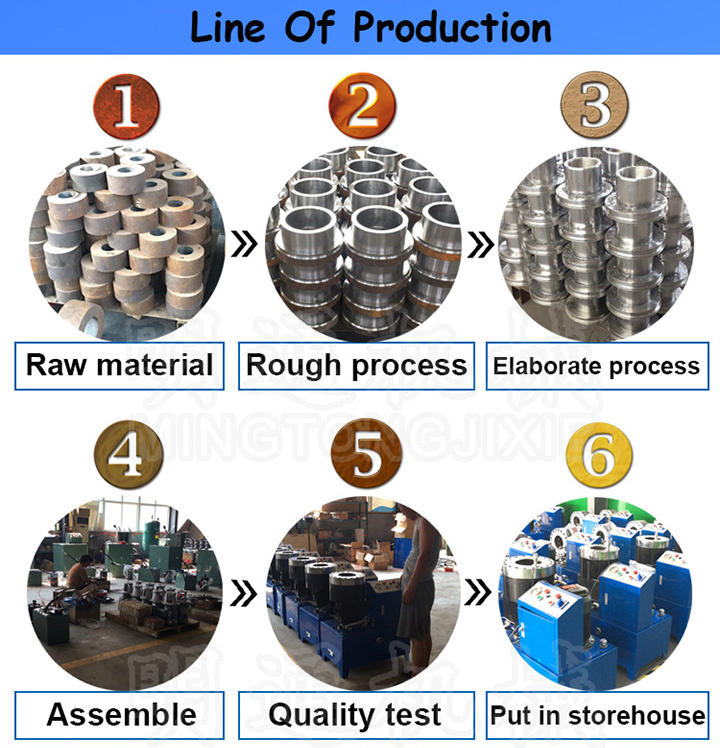

9.Production process


10.FAQ:
Why choose us?
1) More than 10 years of production experience
2) Timely after-sales service
3) A wide range of products to meet all customer needs
4) No middlemen to make price difference in direct sales
5) Short delivery time, within 3~7 days
6) Support Alibaba Trade Assurance protection
What can we offer?
1) Affordable first price
2) Quality assurance, certificate of origin, no fakes
3) OEM and ODM support

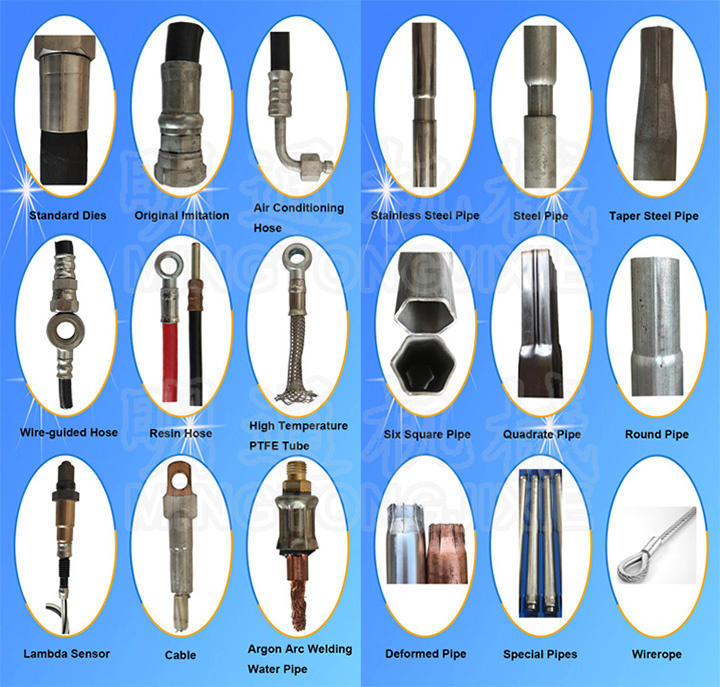

What products our machine can crimp?
Hose, excavator oil hose, construction machinery oil hose, coal mine hose, air conditioning hose, PTFE hose, resin hose, wire guide pipe, air spring, bath pipe, steel wire rope, building steel pipe, stainless steel pipe, etc.
