11kw/15kw Mini Wire Saw for Block Trimming of Natural Stone
| Price: |
US $ 6000-8000/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
LQ-WSM-BD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
Ce/SGS |
| Usage: |
All Kinds of Natural Stone and Concrete |
| Application: |
Stone Industry |
| Source Voltage: |
380V |
| Automation: |
Automatic |
| Type: |
Stone Quarry Machinery |
| Cutting Ability: |
0-40m/S |
| Control: |
Inverter&PLC |
Product Description

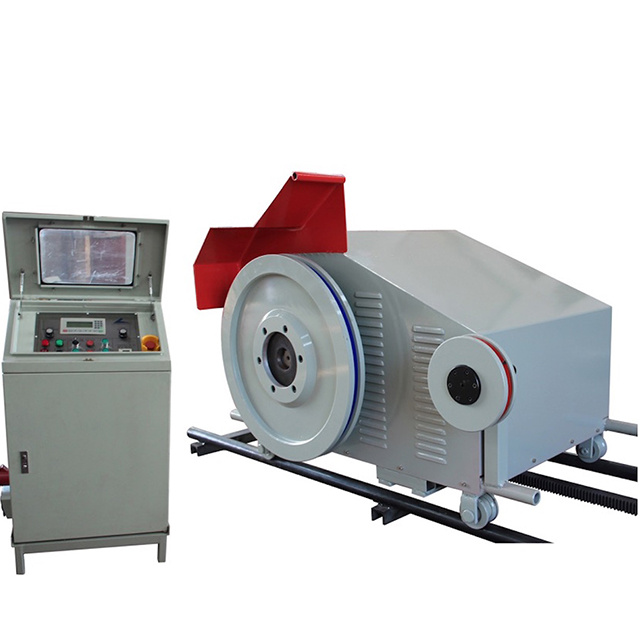

LQ Mini Wire Saw Machine specially designed for stone block trimming work both in quarry and factory with main motor power of 11KWS,15KWS/18.5KW, and high starting trorque and variable speed for small cut of the benches or squaring of marble and granite blocks; When supplied with proper peripheral speeds, for controlled demolition of construction as well. An automatic control system keeps always constant the programmed tension of the diamond wire in working condition. The gross weight of the whole machine is around 500kgs, and the control panel is with movable wheels very convenient for movement in the quarry and factory.
Stone Quarry Machinery- Mini Wire Saw
Mini Wire Saw with light weight and compact structure mainly used for squaring large block in natural stone quarry and the controlled demolition work with easy movement.
Main Technical Parameters are as below:| Model | Main Motor | Speed Setting | Application | Remark |
| LQ-WSM-11BD | 11KWS | 0-40M/S | For block trimming of natural stone and controlled demolition | Standard power supply 3phases, 380volts,50Herz
Modification or transformer will be need for other power standard |
| LQ-WSM-15BD | 15KWS | 0-40M/S |
| LQ-WSM-18.5BD | 18.5KWS | 0-40M/S |
Quanzhou Keen Diamond Tool Co., Ltd is one of the leading manufacturer of series machinery and diamond tools for natural stone quarry, processing and civil construction work, which has very good presentation in Europe, North&South America, Southern Africa, Middle East and Asian.
We are committed to professional total solution and package supply for natural stone quarry and controlled demolition of civil construction:
1. For stone Quarry:
Package supply of quarry machinery and consumables for quarries of granite, marble, sandstone, limestone, travertine and slate, such as Wire saw machine, DTH Drill, block trimming wire saw, diamond wire, generators and air compressors etc.
Consultant service for project evaluation, quarry development and mining construction
Consultant and marketing service for block distribution
2. For stone Factory:
Total solution and package supply of machinery and diamond tools for stone cutting, profiling, drilling and polishing, such as block cutting machine, bridge circular saw machine, bridge eage cutting machine, static stationary wire saw machine; Diamodn wire, diamond blade, diamond segments, diamond core drill, diamond fickert, diamond cup wheels and diamond polishing tools etc.
3. For civil construction:
Total solution and consult service for wire cutting of civil construction like old buildings, bridge, dams, highway, rail way, steel structure and underwater cutting of kinds of pipes.
Package supply of machinery, diamond wire and other consumables for wire cutting of civil construction
Diamond blade for cutting concrete, reinforced concrete and asphalt
Diamond Core Drills for concrete reinforced concrete, wall and asphalt
Diamond polisher for polishing of concrete floor, wall and blocks
The core values of our company is to create value for customers, provide opportunities for staff and make benefits for the society. Our principle for business is customer-oriented and quality first. Keen looks forward to cooperating with you.
