11kws-75kws Electrical Wire Saw Machine for Quarrying and Block Trimming of Natural Stone
| Price: |
US $ 16800-27000/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P,Western Union |
| Prod Model: |
LQ-WSM-BD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| For Cutting: |
All Kinds of Natural Stone and Civil Engineering |
| Power Drive: |
Electrical Motor |
| Main Power: |
11-75kws |
| Flywheel Speed: |
0-40m/S |
| Diameter Of Drive Wheel: |
550-1000mm |
| Way Of Control: |
Inverters with PLC |
| Brand Of Inverter: |
Schneider/ Siemens or Chinese Brand |
| Brand Of Main Motor: |
Huali or Simens |
| Brand Of Electrical Parts: |
Schneider |
| Usage: |
All Kinds of Stone |
| Application: |
Stone Industry |
| Source Voltage: |
380V |
| Automation: |
Automatic |
| Type: |
Quarry Machinery |
| Control: |
Inverters and PLC |
| Certification: |
SGS |
Product Description

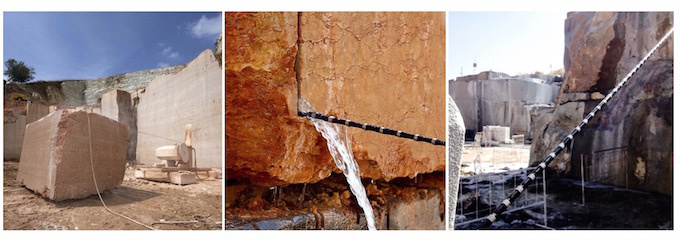

Company Information:We, KEENTOOL is specialized in manufacturing of machinery, equipment, diamond wires, tools and consumables for the natural stone industry and civil engineering cutting. We offer a wide range of services and holistic approach to achieve the best cost effective production requirements for our customers, and has built up a proven track record in continuously developing, marketing superior quality machinery and tools for the natural stone industry. Our machinery and diamond tools has been introduced to more than 30 countries and areas from America, Europe, Middle East, Southern Africa and East&South Asia over last 10years. Description:LQ series variable speed electrical wire saw machines for quarry and block trimming of natural stone, and civil engineering cutting for controlled demiliton:

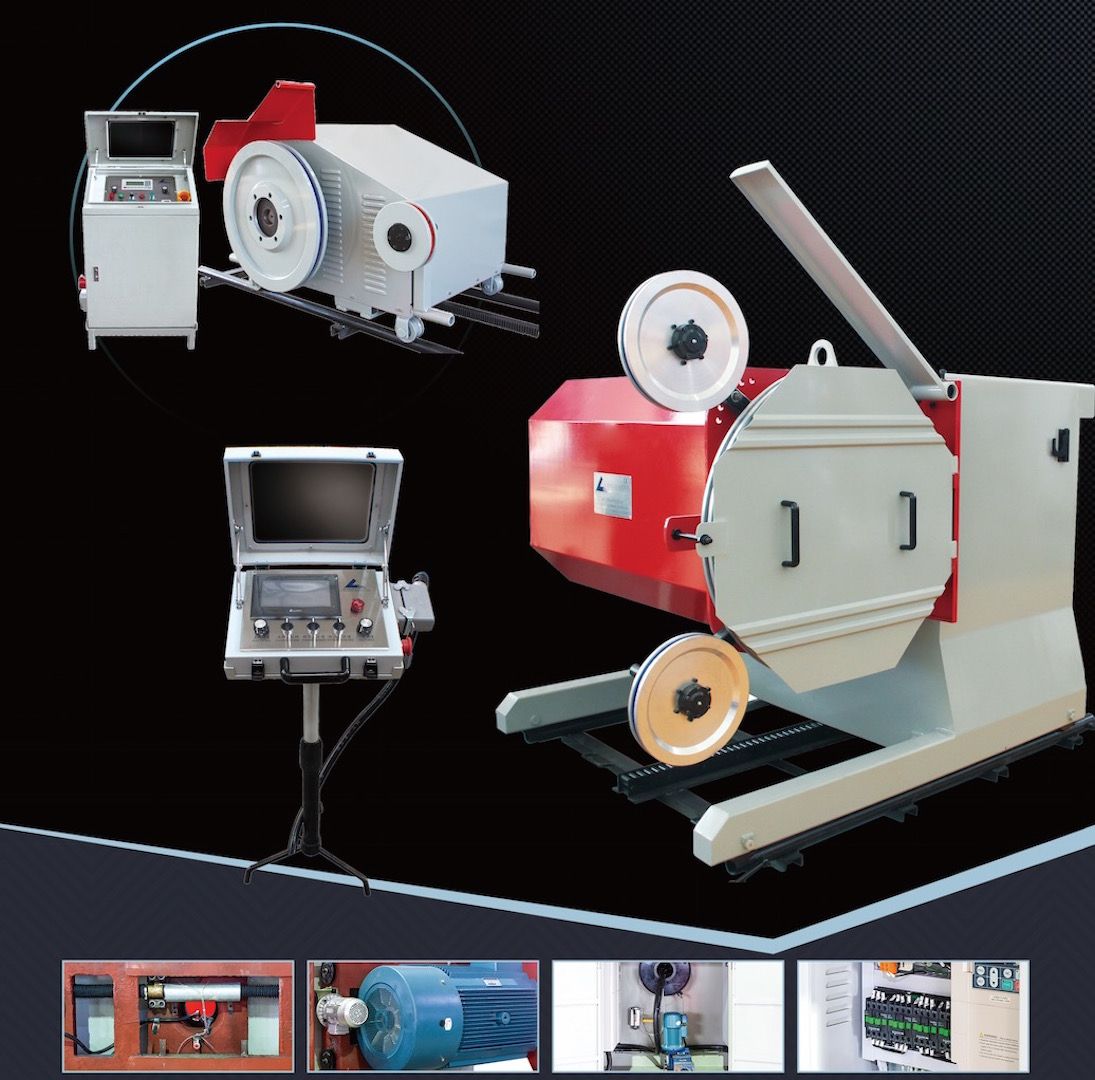

The electrical control system of quarry wire saw machines are with PLC and two inverters that allow to variable linear speed of wire from 0-40 M/S. The translation and 360 degree rotation of flywheel-holder head of machinery stone wire are motorized and allow an easy and fast positioning of the machine, as well as the execution of two parallel cuts. All the movement of the onyx machines are motorized and an automatic mechanism keeps always constant and programmed tension of diamond wire in working conditions. Our Machinery Stone Wire are with Safety devices that shut off the machine in case of wire breakage, over voltage, over electric current, over heating of motor, incorrect maneuvers etc. The greatest advantage of our machinery stone wire are safe cutting and good diamond wire durability as well as being user friendly.Technical Data: TECHNICAL PARAMETERS OF KEENTOOL WIRE SAW MACHINES:
1- Variable wire speed range from 0-40 M/S
2- Automatic step-less tensioning system to keep the wire always in optimal working condition.
3. Motorized rotation of driving wheel holder from 0-3600 with limit protection for over movement.
4. Motorized lateral extension of flywheel shaft position +/- 350-400mm with limit protection for over movement.
5- Maximum travel speed on rail without loading 1.75 Meters/Min.
6- Safety alarm and stop system in case of unexpected wire break or any other faults.
7- Distant control with very simple panel to operate the saw with better safety easier understanding to the operator.
8-Separate automatic reset selection switch to control the rotation and lateral extension movement; Which can be take off when it is no need.
9-20 second main motor start alarm sound and flash light to warn around people leave away.
10-Big and strong steel frame with dimension of 2m length, 1.4m width and 1.3meter height which allows more inside space for easier maintenance and repairment.
11-General gross weight: 2500-3400kgs; General volume dimension: 4-7cubic meter (with packing)
Remarks:
1-Standard power supply is 3-phases, 380Volts, 50Hz, other types could be ordered by customer.
2-We are in a position to design the Machinery Stone wire as per customer special requirement.| Model | Main Motor | Length of wire
(Meter) | Linear Speed
(M/Sec) | Diameter of driving wheels
(mm) | Application |
| LQ-WSM-11KW | 11KW/15HP | 5-20 | 0-40 | Φ550 | For block trimming |
| LQ-WSM-15KW | 15KW/20HP | 5-30 | 0-40 | Φ550 |
| LQ-WSM-22KW | 22KW/30HP | 10-40 | 0-40 | Φ600 |
| LQ-WSM-37KW | 37KW/50HP | 20-80 | 0-40 | Φ800 | For Quarry |
| LQ-WSM-45KW | 45KW/60HP | 20-100 |
| LQ-WSM-55KW | 55KW/75HP | 20-120 |
| LQ-WSM-75KW | 75KW/100HP | 20-150 | 0-40 | Φ1000 |

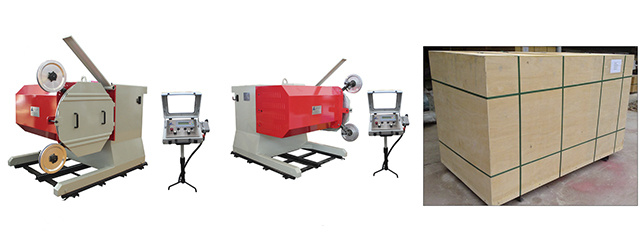

Package and Shipping: Package: Crate with waterproof plastic
Delivery time: Within 14 days after confirmation of payment
Our Services:1. Diamond Wire Cutting Operation Training and Guidance
2. Full Consulting Service and Turnkey Solutions for the Stone Quarry
Always at your service!
Quanzhou Keen Diamond Tool Co., Ltd is one of the leading manufacturer of series machinery and diamond tools for natural stone quarry, processing and civil construction work, which has very good presentation in Europe, North&South America, Southern Africa, Middle East and Asian.
We are committed to professional total solution and package supply for natural stone quarry and controlled demolition of civil construction:
1. For stone Quarry:
Package supply of quarry machinery and consumables for quarries of granite, marble, sandstone, limestone, travertine and slate, such as Wire saw machine, DTH Drill, block trimming wire saw, diamond wire, generators and air compressors etc.
Consultant service for project evaluation, quarry development and mining construction
Consultant and marketing service for block distribution
2. For stone Factory:
Total solution and package supply of machinery and diamond tools for stone cutting, profiling, drilling and polishing, such as block cutting machine, bridge circular saw machine, bridge eage cutting machine, static stationary wire saw machine; Diamodn wire, diamond blade, diamond segments, diamond core drill, diamond fickert, diamond cup wheels and diamond polishing tools etc.
3. For civil construction:
Total solution and consult service for wire cutting of civil construction like old buildings, bridge, dams, highway, rail way, steel structure and underwater cutting of kinds of pipes.
Package supply of machinery, diamond wire and other consumables for wire cutting of civil construction
Diamond blade for cutting concrete, reinforced concrete and asphalt
Diamond Core Drills for concrete reinforced concrete, wall and asphalt
Diamond polisher for polishing of concrete floor, wall and blocks
