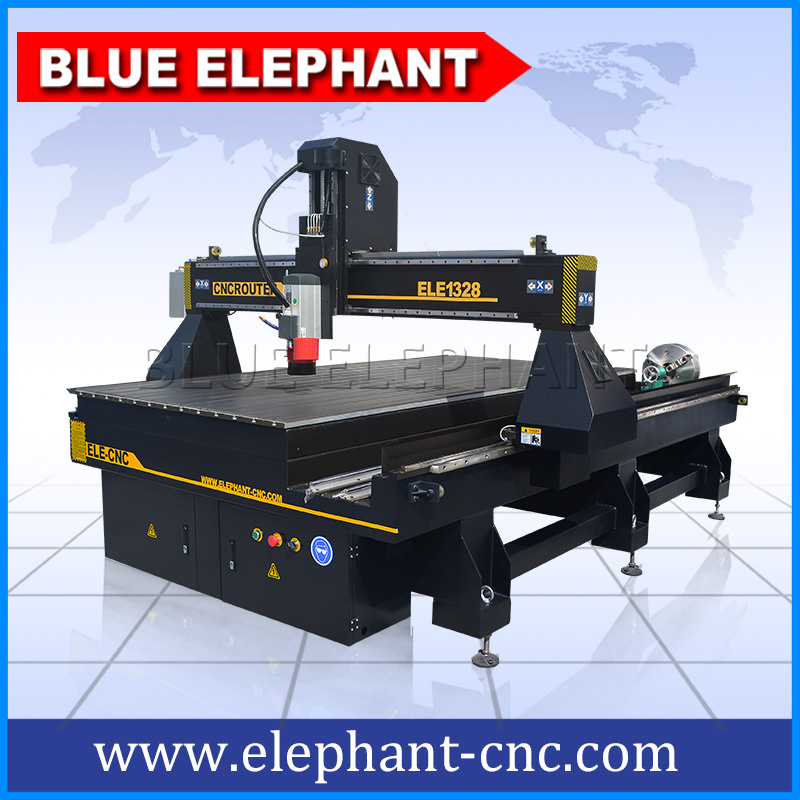

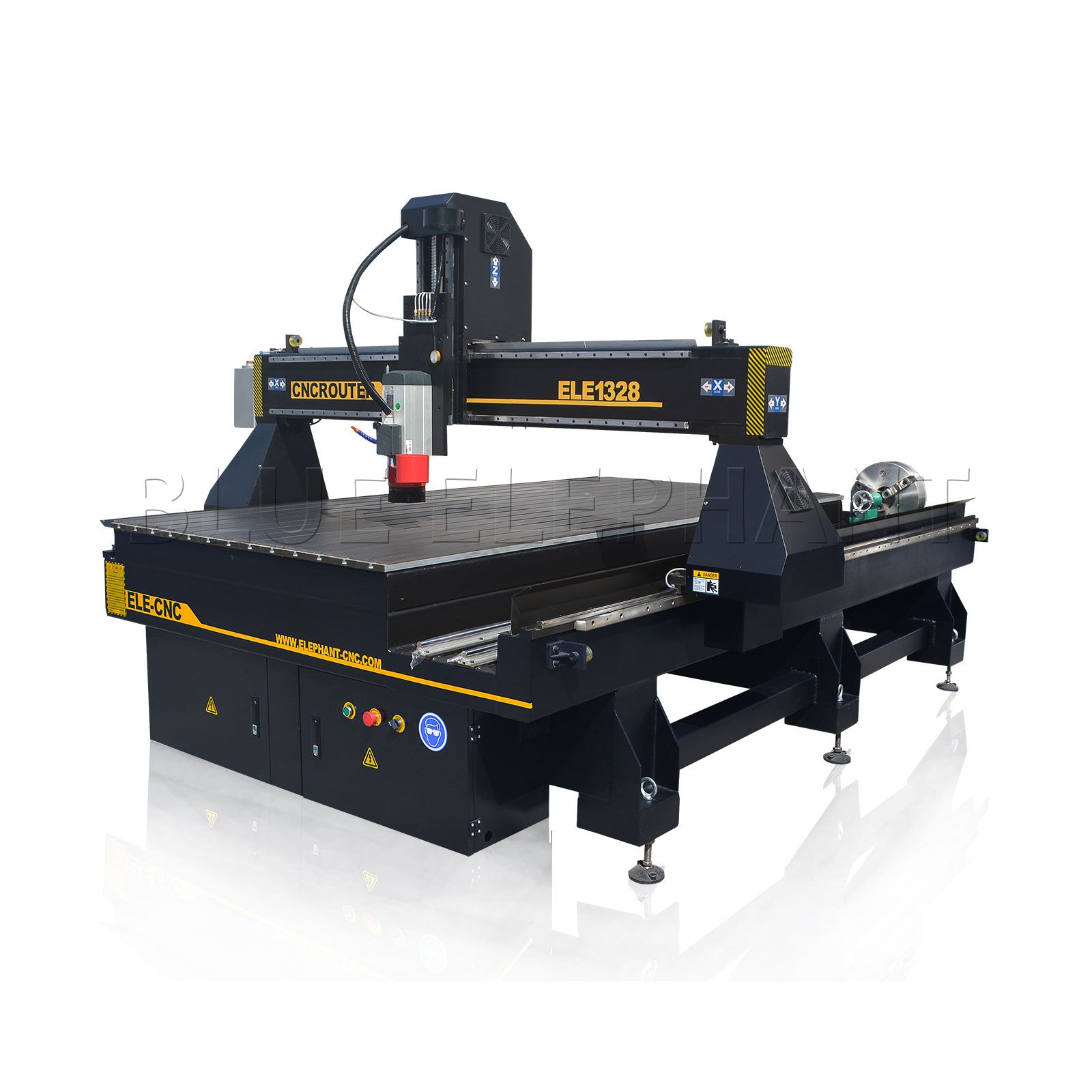

1328 CNC Cutters Machine, CNC Router Cutting Machine with 220V Power

1328 CNC Cutters Machine, CNC Router Cutting Machine with 220V Power
Price: US $ 5500-9000set
Min Order: 1set
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: ELE 1328
Voltage: AC220V, 1pH, 60Hz (380V for Optional)
Dimension(L*W*H): 4100*2140*1850mm
Working Area: 1300*2830*300mm
Control System: Mach3 4 Axis Control System
Spindle: Italy Hsd Air Cooling Spindle
Spindle Power: 6kw
Drive Motor: FL118 Stepper Motor and Yako 2811 Driver
Table Surface: T-Slot Working Table with PVC Protection
X, Y Structure: #20 Hinwin/Abba Linear Guide, Helical Rack
Inverter: 7.5kw Fuling Inverter
Spindle Layout: Spindle Over
Spindle Number: Single-Spindle
Feed Mode: Mechanical
Controlling Mode: CNC
Certification: SGS BV TUV

Product Description

1328 cnc wooden legs cutters machine , cnc router cutting machine with 220v power



Advantage of cnc machine for sale:
  • 10~12mm thinkness heavy duty frame. More strong and stable.
  • Original Italy HSD air cooling spindle.
  • 300mm diameter rotary.

Parameters of cnc machine for sale:

Description

Parameter

X,Y,Z Working Area

1300x2830x300mm

X,Y,Z Traveling Positioning Accuracy

±0.03/300mm

X,Y,Z Repositioning Accuracy

±0.03mm

Table Surface

T-slot working table with pvc protection

Frame

Welded Structure

X, Y Structure

#20 HINWIN/ABBA linear guide, helical rack

Z Structure

Hiwin/ABBA Rail Linear guide and Ball Screw

Spindle

6kw Italy HSD air cooling spindle

Spindle Speed

0-18000RPM

Drive Motors

FL118 stepper motor and Yako 2811 big driver

Working Voltage

AC220V, 60Hz, 1PH (Option: 380V)

Operating System

Mach3 4 axis control system

Control box

Inner box

Inverter

7.5kw Fuling inverter

Lubrication system

Automatic lubrication system

Rotary device

Diameters: 300mm ; Length: 2830mm

X,Y Resolution

<0.01mm

Running Environment  Temperature

0 - 45 Centigrade

Relative Humidity

30% - 75%

Optional

Japan Omron limit switch

PS:All the working area and specifications can be customized according to your requests.

 Features of cnc machine for sale:

  • 1300*2830*300mm working size
  • 6Kw Italian HSD air-cooling spindle
  • 7.5kw DELTA inverter
  • T slot table
  • Taiwan HIWIN Square Rail for X, Y, Z axis #20
  • Stepper motor FL118 YAKO2811 driver
  • Mach3 control system for 4 axis
  • 300mm diameter rotary device 2500mm working length
  • Artcam 2012 software
  • 10mm Heavy duty Body construction
  • 21 pieces router bits
  • Dust brush and frame on the machine
  • 220V, single phase, 60Hz

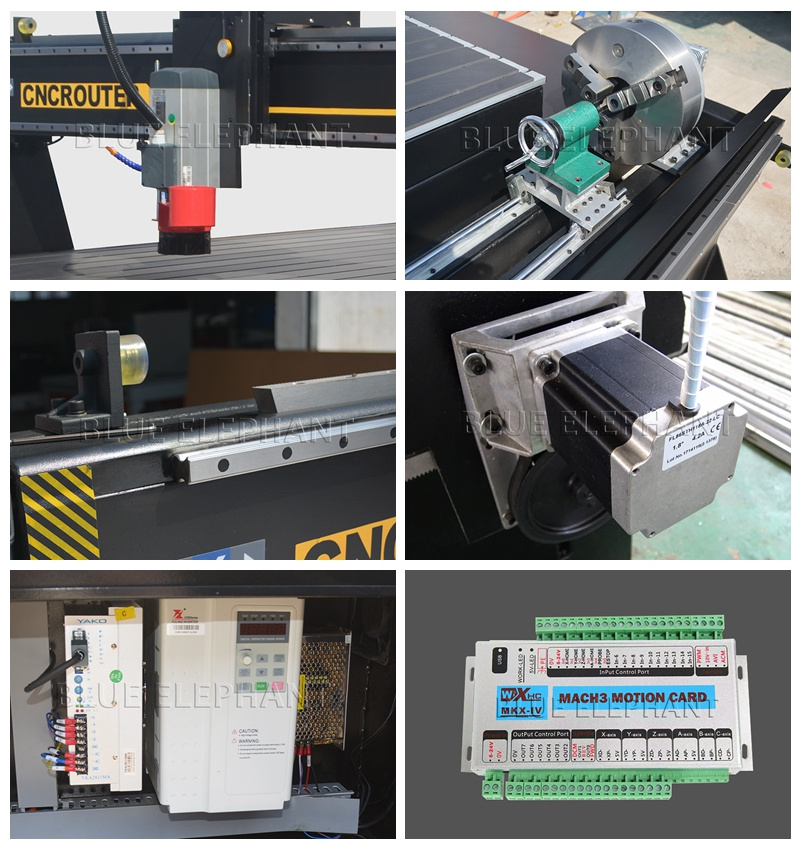

Product Details of cnc machine for sale:

Applications of cnc machine for sale:

  • Wood furniture industry:Wave plate,fine pattern,antique furniture,wooden door,screen,craft sash,composite gates,cupboard doors,interior doors,sofa legs,headboards and so on.
  • Advertising industry:Advertising indentification,sign making,acrylic engraving and cutting,crystal word making,blaster molding,and other advertising materials derivatives making.
  • Die industry:A sculpture of copper,aluminum,iron and other metal molds,as well as artificial marble,sand,plastic sheeting,PVC pipe,wooden planjs and other non-metallic mold.
  • Relief sculpture and 3D engraving
  • Stone,Cylindrical object

Samples:



Our Service:
1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.

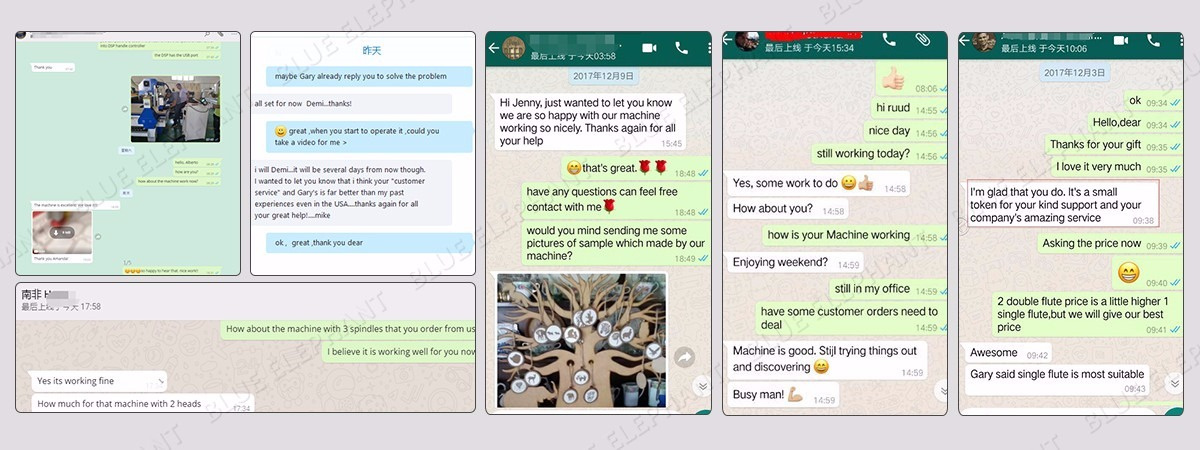

Customers Feedback:



FAQ:

 Question 1: I want to buy this machine,what suggestion can you give?
Answer: Please tell me:what material do you process? What's the size of your material?(Better show me your product picture)

 Question 2: What's the delivery cost & time?
Answer: Please tell me your sea port name, i check shipping cost. After production, we'll deliver ASAP.

 Question 3: Have you exported to our country?
Answer: We have been in this field for 11 years, we have CE, CO, ISO, FDA certificates, have exported to Europe, South America, Arab, Asia, Russia, Spain, ustralia and many more countries.

 Question 4: This is the first time I use this kind of machine, is it easy to operate?
There are english manual or guide video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager online service at any time.

Question 5: If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period if machine have any problem.
If the parts less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.

Question 6: MOQ ?
1 set machine, mixed order is also welcomed.

Packaging & Delivery:
Packaging Details: 1.Outside package:Standard marine export plywood case.
                                  2.inner package:Stretch film and plastic film for humidity.
                                  We can package according to your requests.
Delivery Detail: Shipped in 15 working days after payment.

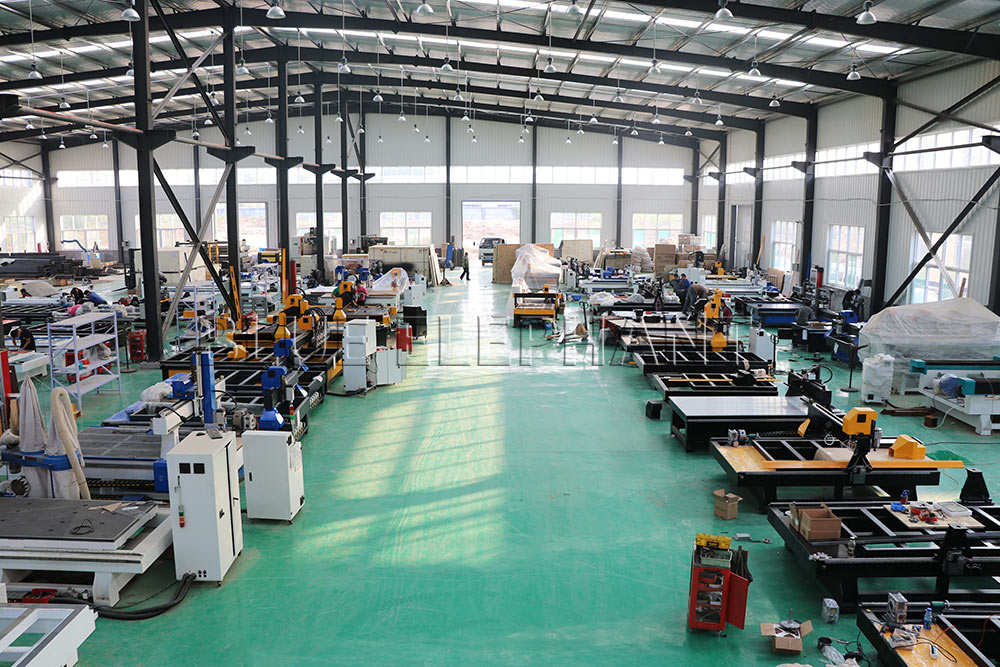

Welcome to our factory:

  • Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. We have always been developed to the research and manufacturer of CNC router machine and laser cutting engraving machine.
  • Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler Platform!
  • Just looking forward to service every customer, like you.



Contact us:



Mobile: 0086-15064026772

Web: www.elephant-cnc.com

Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler Platform!

We have always been devoting to the research and manufacture of CNC engraving machines. We have R&D Production Department, Quality Control Department, and Sales & Service Department. Our products are widely used in woodworking, advertising, model, electric, CAD/CAM industry model, clothing, package printing, marking, laser sealing and so on.

We can offer you the high quality products with the competitive price. Our products have got CE certificate. Our main products are as follows: CNC router, laser engraving and cutting machine, laser cutting machine, marble CNC router, cutting plotter, plasma metal cutting machine, advertising CNC router and so on.

Business Type: Manufacturer, OEM, ODM

Main Products: Wood CNC router machine, laser engraving and cutting machine, stone CNC router, plasma cutting machine, laser machine

Location: Shandong, China (Mainland)

Year Established: 2013

Number of Employees: 11 - 50 People

Total Revenue: US$10 Million - US$50Million

Main Markets: Oceania, Western Europe, North America, Africa, Southeast Asia
