| Price: | US $ 9999-19999set |
|---|---|
| Min Order: | 1set |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |

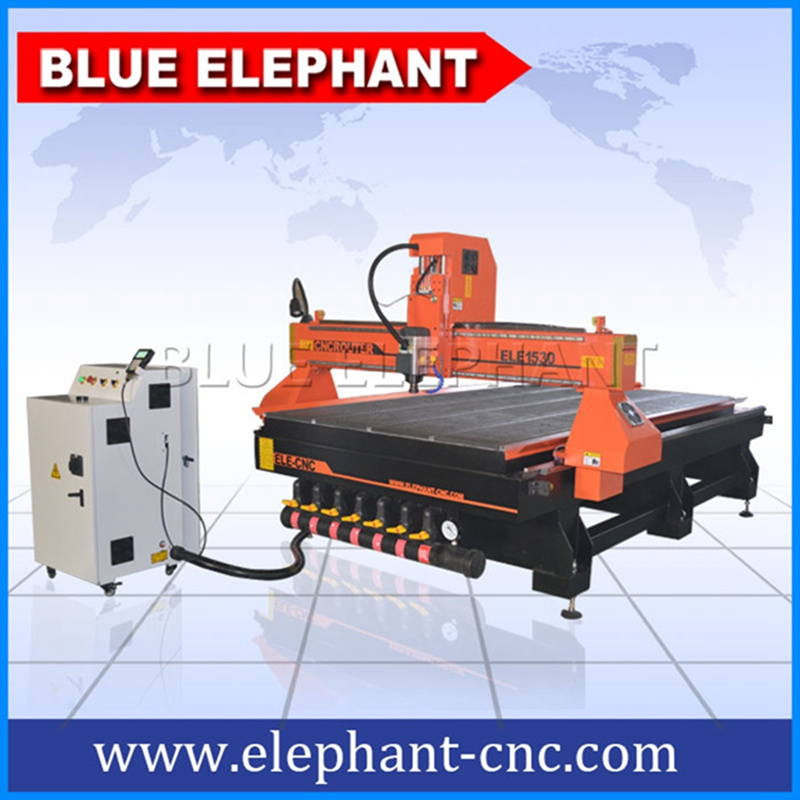

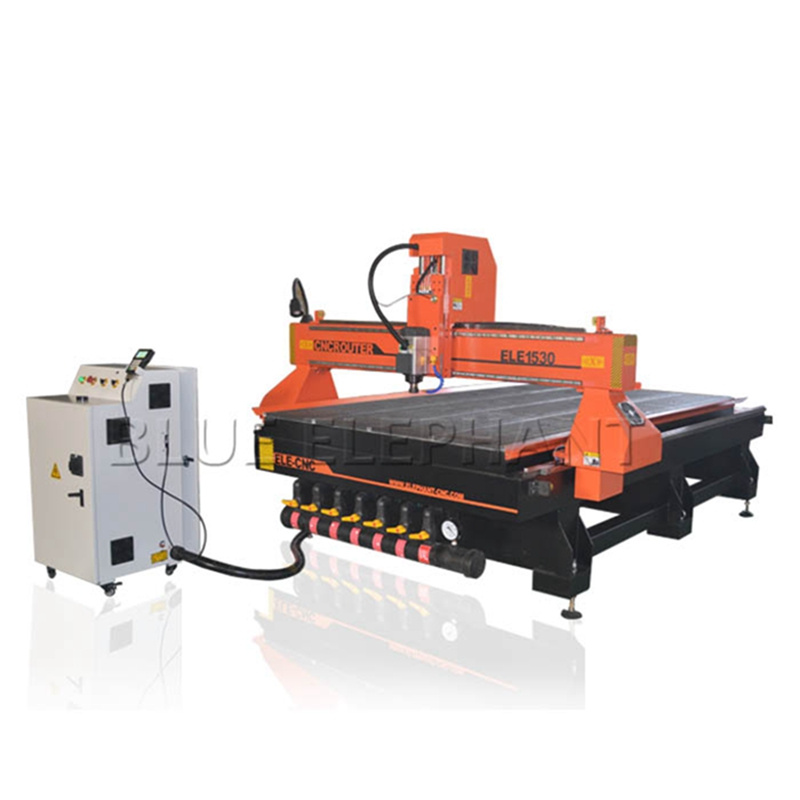

| Prod Model: | ELE 1530 |
|---|---|
| Voltage: | AC380V/50/60Hz, 3pH (Option: 220V) |
| Dimension(L*W*H): | 3200X2100X1980mm |
| X,Y,Z Working Area: | 1500X3000*200mm |
| Inverter: | 5.5kw Delta |
| Control System: | DSP Control System |
| Spindle Power: | 4.5 Kw Italy Hsd Atc Air Cooling Spindle |
| Table Structure: | Vacuum & T-Slot |
| Transmission: | Taiwan Tbi Ball Screw |
| Guide Rail: | Hiwin 20# Square Guide Rail |
| Spindle Speed: | 0-18000rpm |
| Spindle Layout: | Spindle Over |
| Spindle Number: | Single-Spindle |
| Feed Mode: | Mechanical |
| Controlling Mode: | CNC |
| Certification: | FDA |
Features:

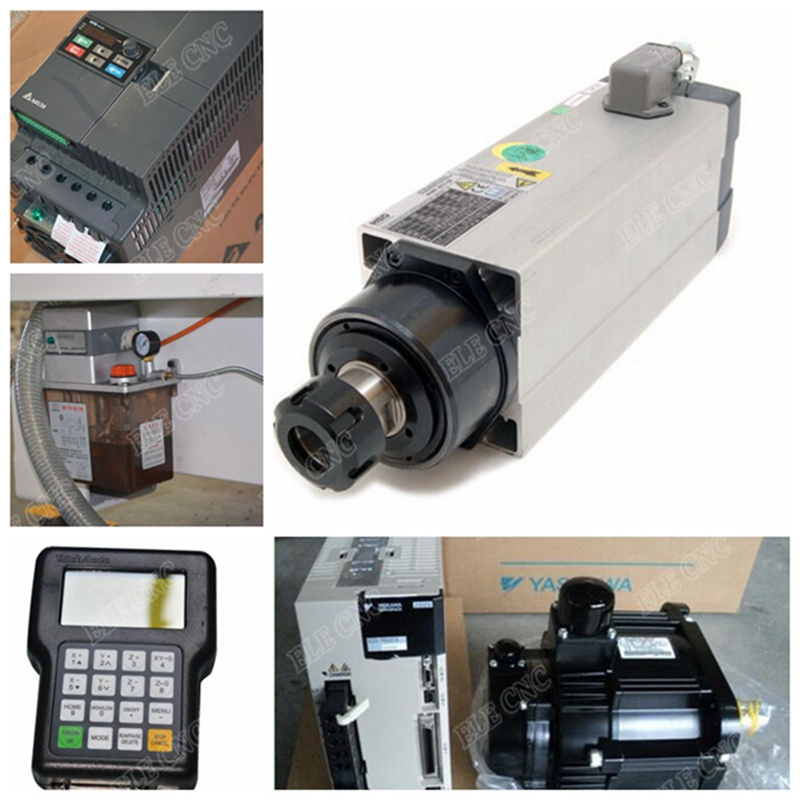

Main parts:
Technical Parameters:
Number | Description | Parameter |
1 | X,Y,Z Working Area | 1500x3000x200mm |
3 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
4 | X,Y,Z Repositioning Accuracy | ±0.03mm |
5 | Table Surface | Vacuum & T-slot Table |
6 | Frame | Welded structure steel tube frame |
7 | X, Y Structure | 20#Taiwan HIWIN Linear guide and helical rack |
8 | Z Structure | Ball screw and#20 Taiwan HIWIN Linear guide |
9 | Vacuum pump | 5.5KW Air type vacuum pump |
10 | Max. Rapid Travel Rate | 45000mm/min |
11 | Max. Working Speed | 30000mm/min |
12 | Spindle Power | 4.5KW Italy HSD air cooling spindle |
13 | Spindle Speed | 0-18000RPM |
14 | Drive Motors | Japan YASKAWA servo motor and driver |
15 | Inverter | 5.5 kw Taiwan Delta Inverter |
16 | Command Language | G Code |
17 | Control System | DSP |
18 | Computer Interface | USB |
19 | Flash Memory | 512M(U Disk) |
20 | Collet | ER30 |
21 | X,Y Resolution | <0.01mm |
22 | Software Compatibility | Type3 Software, (Option: Artcam Software) |
23 | Running Environment Temperature | 0 - 45 Centigrade |
24 | Relative Humidity | 30% - 75% |
Furniture:ideally suitable for processing cabinet door,wooden door,solid wood furniture,panel wood furniture,windows,tables and chairs,etc.
Well suited for processing panel.insulating materials,plastic,expoxy resin.carbon mixed compound,etc.
Sample show:
Packaging and shipping:
1.Outside Package:Standard export wooden case .
1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered , operation disk/CD was included.
