150m Depth Wheel Type DTH Hammer Drill for Water Well

Prod Model:	DFQ-150W
Application:	Water Well, Blast Hole, Geothermal Hole, etc
Max Drilling Depth:	150m
Fully Hydraulic:	Yes
Drilling Caliber:	105-203mm
Weight:	2800 Kg
Power:	44kw
Gas Consumption:	15~24 M3/Min
Apply To Rock Hardness:	F=6-12
Qualification:	BV, SGS
Usage:	Coal, Ore, Water Well, Blast Hole, Geothermal Hole
Power Type:	Diesel or Electric

Product Description

Brief Introduction

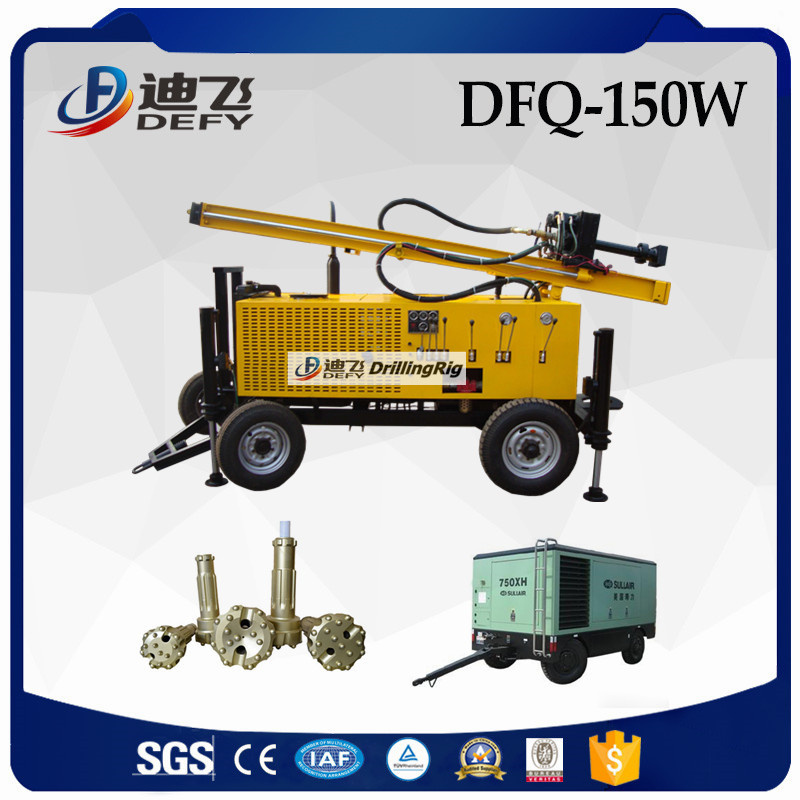

DFQ-150W 150m depth wheel type dth hammer drill for water well can drill for 150m depth at the caliber of 105-203mm. The machine equipped with diesel motor, which could provide powerful driving force to run the hydraulic system and other parts. The machine is mounted with four wheels, more convenient when transport.

It can be used in water well, blast hole, borehole, geothermal hole, foundation hole and other drilling work. This machine is especially professional in drilling rocks such as gravel, granite, basalt, with dth hammer drill bits. All these features ensure the high efficiency of drilling work. Very fast to earn your investment back. The higher efficiency, the more profit you can earn.

Features

1.China famous brand diesel or electric motor can be chosen by customer.

2.HIgh quality dth hammer drill bits equipped, long lifetime and more profit you can earn.

3.Tractor mounted, easily to move around or transportation.

4.Four strong support legs provide high stability in drilling.

5.Mud pump adopted to drill earth, widely drilling range.

Technical Parameter

No.	Item	DFQ-150W
1	Drilling caliber	Φ105-203mm
2	Max. drilling depth	150m
3	Work pressure	1.05-2.0 MPa
4	Gas consumption	15-24 m³/min
5	Impacter	DHD350/360
6	Apply to rock hardness	f=6-12
7	Power	44KW
8	Rotary torque	2000N.m
9	Weight	2800 Kg
10	Dimension	3500*1770*2300mm

Buyer Concerns:
1.Worried about the authenticity of seller?
--We are a professional drilling equipment manufacture in China. We do have our factory and office. We master the technology, and constantly adjust our products according to the market trend and customer feedback, ensure product quality.
As a professional drilling equipment manufacturer, you are welcomed to visit our factory to see and try your machine by yourself before purchasing.

2. First time to using drilling machine?
-The machine is not too complex to make people feel fuzzy. Second, we provide operation manual and DVD to guide you. Then, we also provide Free training in our factory if you were possible to come;

3. How to deal with the worn parts of the machine?
--We provide some wearing parts for you when the first time you purchase goods from us;We also provide wearing parts for your choice.

4. About the warranty?
--All accessories of our machinery is available at Factory-price all Year around. We always do our best to solve our customers' worries.

We provide Turn-Key solution for all drilling project. No matter what you need, the professional drill machine, drill parts or just professional suggestion, you can send us an email and we will respond and offer you Complete set of Drilling Machine as per your requirements.
