| Prod Model: |
DF-150S |
| Diesel Engine: |
24kw |
Product Description

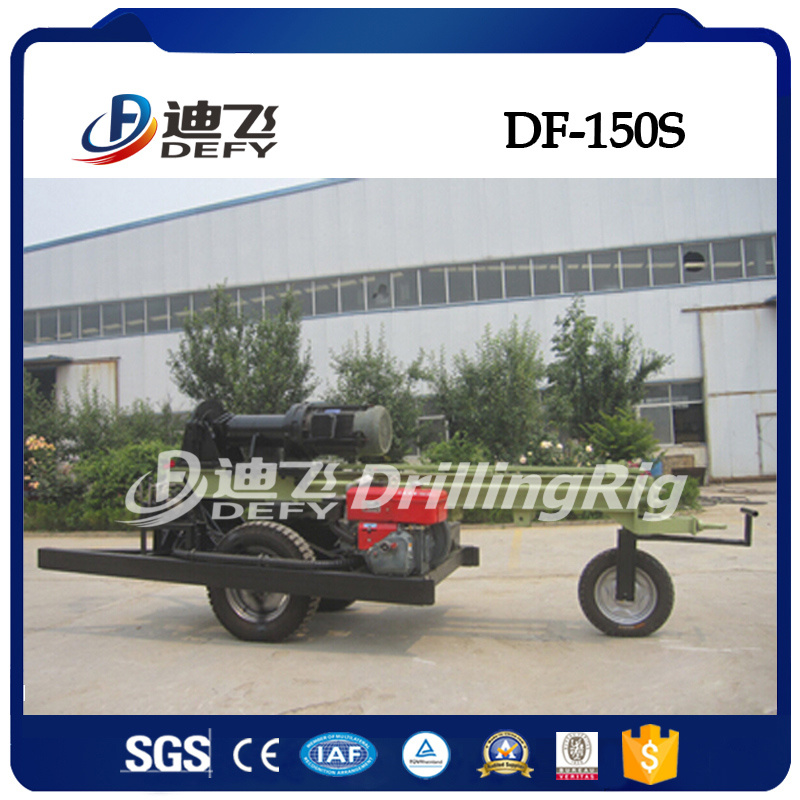

Small DF-150S DTH hammer used blast hole drilling machine
Product Introduction
DF-150S Small used borehole water well drilling machine is a kind of high efficiency versatile full hydraulic crawler type drill rig.
Application
1. DF-150S Small used borehole water well drilling machine is widely used in water wells, manholes, precipitation wells, geothermal air conditioning hole and other drilling exploration projects.
2. It can also used for geotechnical engineering foundation reinforcement, pipe-following drilling for gravel and other loose stratums, hard stone borehole and other projects.
Product Features
1. DF-150S Small used borehole water well drilling machine has features like advanced structure, easy to use, safe and reliable.
2. It can impact drill with compressed air or rotary drill with mud according to different geological conditions.
Specification
| DF-150S Small used borehole water well drilling machine |
| Item | Unit | Specification |
| Drilling hole diameter | mm | 115~300 |
| Drilling depth(m) | m | 300 |
| Work pressure | (MPa) | 1.05~2.46 |
| Air consumption | (m³/min) | 16~30 |
| Lifting force | (N) | 68000 |
| Rotation torque | (Nm) | 4000 |
| Drill rod caliber(mm) | mm | 76/89/102/114 |
| Drill rod length(m) | m | 3 |
| Dimension(mm) | mm | 5690*2000*2800 |
| Total weight | (Kg) | 8700 |
Key Points To Buy
In order to order the suitable product,firstly you need to make sure the following details:
application→drilling depth→drilling caliber→stratum
