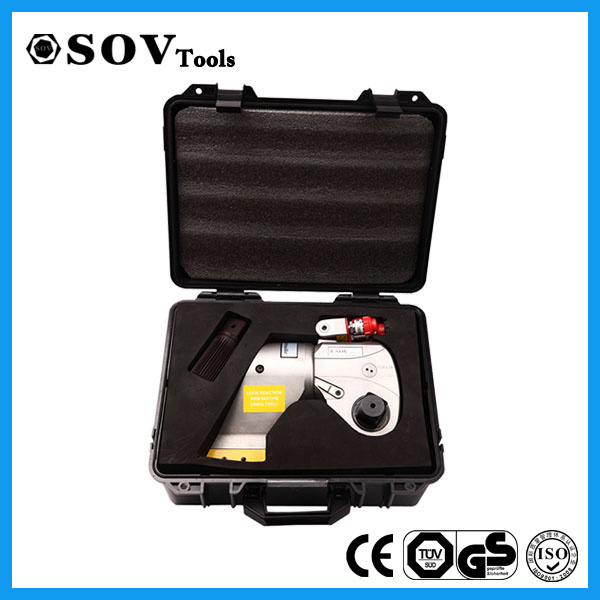

2 1/2" Square Drive Al-Ti Alloy Hydraulic Torque Wrench
| Price: |
US $ 125-9800/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
SV31LB1500 |
| Product Name: |
2 1/2" Square Drive Hydraulic Torque Wrench |
| Torque Range (Nm): |
1551-15516 |
| Bolt Diameter (mm): |
36-72 |
| Hex (mm): |
55-105 |
| Square Drvie Axis (Inch): |
1-1/2 |
| Max Pressure (Bar): |
700 |
| Weight (Kg): |
14.5 |
| Color: |
Can Be Customized |
| OEM: |
Yes |
| Warranty: |
1 Year |
| Type: |
Torque Wrench |
| Standard: |
German Type |
| Feature: |
Ordinary |
| Material: |
Al-Ti Alloy |
| Brand: |
Sov |
| Surface Treatment: |
Al-Ti Alloy |
| Working Mode: |
Hydraulic |
Product Description
Features:
Patented integrated body design, more sturdy and durable
Rotary-return mechanism design, never-jam mechanism.
Hands-free operation, making the use more safety.
Slim nose radius and 360°×180° swivel hose connection allow easier positioning in confined space.
High repeatability, with accuracy±3%
360°reaction arm, makes the wrench get better supporting
Standard working pressure: 700par.
Technical Parameters:
Model | Torque range
(mm ) | Bolt diameter
(mm ) | Hex
(mm ) | Square drvie axis
(inch ) | Max pressure
(Bar ) | Weight
(Kg ) |
| SV31LB180 | 180-1800 | 16-36 | 24-55 | 3/4 |
700 | 2.3 |
| SV31LB450 | 450-4510 | 22-48 | 34-75 | 1 | 4.8 |
| SV31LB750 | 755-7558 | 27-56 | 41-85 | 1-1/2 | 8.1 |
| SV31LB1000 | 1050-10550 | 30-64 | 46-95 | 1-1/2 | 11 |
| SV31LB1500 | 1550-15500 | 36-72 | 55-105 | 1-1/2 | 14.5 |
| SV31LB2500 | 2650-26500 | 42-90 | 65-110 | 2-1/2 | 26.5 |
| SV31LB3500 | 3500-35000 | 48-100 | 75-145 | 2-1/2 | 34.5 |
| SV31LB5000 | 4850-48500 | 64-120 | 95-170 | 2-1/2 | 48.2 |
Package and Delivery
1. Outer packing: standard export wooden case
2. Inner packing: careful stretch film and cardboard
3. Lead time: 1~3workdays when products in stock, 7~15workdays when out of stock
4. Delivery time: Prompt delivery
Shipping Methods
1. Light Weight: by international air express, within 3-7days arriving
2. Heavy Weight: by ocean cargo, arriving time depends on your destination port
Company information
Shanghai SOV Hydraulic Technology Co., Ltd is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic bumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.
Certificate
Since the establishment in 1995, we successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand SOV, and our factory has been approved by CE, ISO9001:2008 consecutively.
Certificate
Since the establishment in 1995, we successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand SOV, and our factory has been approved by CE, ISO9001:2008 consecutively.
Clients
Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.
Main Products
We are a manufacturer in tools, such as:
•Hydraulic cylinders, jacks (5-3000ton), single acting and double acting, hollow plunger; low height, ultra pressure, lock nut
•Hydraulic torque wrench, electric torque wrench, pneumatic torque wrench (100-160000Nm);
•Hydraulic bolt tensioner (M24-M600); Hydraulic pullers;
•Hydraulic pumps, manual and electric type (max up to 4000bar);
•Integrated hydraulic lifting system solutions ( 4-99 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
•Hydraulic nut and couplings. (M50-Tr1000), hydraulic hose
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
WHY DO YOU NEED SOV?
Q1: What's the brand name of your products?
A: Own brand "SOV", WE ARE GERMANY OWNED FACTORY. OEM is also available as required.
Q2: Hydraulic cylinder internal leakage?
A: There are 3 main reasons causing internal leakage: Overload, polishing is not well controlled, bad seal kits. As is known to all, vehicles in China are often overload, our products all designed to bear the overload power. We have numerical control machine to assure the polish processing .And we use the imported seals to meet customers' demands.
Q3: Does your piston rod get ruptured easily?
A: Hard chrome plating quenched and tempered 45# steel for piston rod to assure sufficient hardness and toughness.
Q4: Is your design reasonable? What about your product safe coefficient?
A: We have R&D team with abundant design experience. We also established production, education, and research cooperation with universities. Rest assured.
Q5: How about the delivery time?
A: Over 1000 sets advanced equipments to meet customer's large demand in short delivery time. Generally, it's 7-20 days.
Q6: What's the after-service?
A: If the quality can't meet your requirement, we will pay all your lost and offer technical support to solve your problem
About SOV Hydraulic Technology(Shanghai) Co., Ltd.
Shanghai SOV Hydraulic Technology(Shanghai) Co., Ltd is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic bumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.
Since the establishment in 1995, we successfully transformed from OEM manufacturer to create our own brand SOV, and our factory has been approved by CE, ISO9001: 2008 consecutively.
Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.
We are a manufacturer in tools, such as:
Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger; Low height, ultra pressure, lock nut
Hydraulic torque wrench, electric torque wrench, pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton;
Hydraulic pumps, manual and electric type (max up to 3000bar);
Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
Hydraulic nut and couplings. (M50-Tr1000), hydraulic hose
Hydraulic pipe cutting and beveling machine
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
