| Prod Model: |
XY-200F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power: |
22HP or 15kw |
| Warranty: |
1year After The Machine Leaves Factory |
| Mud Pump: |
Bw-160 |
| Weight: |
1700kgs |
| Operation: |
Manual and VCD |
| Complete Set: |
with All Necessary Accessories |
| Structure: |
Deep Hole Drilling |
| Layout: |
Vertical |
| Automatic Grade: |
Automatic |
| Precision: |
High Precision |
| Certification: |
BV&SGS |
Product Description
Features of XY-200F Drilling Rig
*BW~160 independent Mud Pump, more powerful.
*Drill tower Integrated on drilling rig, compact structure, no need to install tower separately
*Four stabilizer legs for working stability
*Can drill up to 200m with 400-75mm caliber in mud, soil, clay, granite, hard rocksand so on.
, widely for water well project, irrigation well, big water conservancy, coring, soil test, etc.

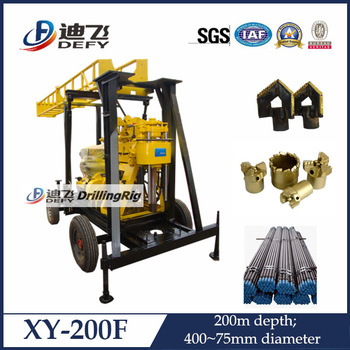

XY-200F Diamond core drilling rig
1. Power Supply can be driven by either electric motor or diesel engine.
2. Four wheels mobile base, it can be mounted on tractor or trailer. Easy to work in mountains and rugged places.
3. Easy to Assemble and Dissemble. Heaviest part is less than 100KG, convenient for maintenance and transport.
4. Three-wing Bit, Alloy Bit, Diamond Bit for different geological formations, such as soil, sand, gravel, hard rock, etc. Very effective in diamond drilling.
5. Independant mud pump, with powerful power for working.
Specifications
| 1.Overall parameters |
| Drilling depth | 200m |
| Maximum open hole caliber | 400mm |
| End hole caliber | 75mm |
| Diameter of drill rod | 50mm |
| Drilling angle | 90~75 |
| Weight(not include power) | 760kg |
| Dimension | 2750*950*1600mm |
| 2. Vertical shaft | |
| Rotating speed | 71,142, ,310,,620r/min |
| Feeding stroke | 450mm |
| 3.Hoist | |
| Max. single line hoisting capacity | 2400Kg |
| Diameter of wire rope | 13mm |
| Volume of winding drum | 35m |
| Hug floodgate caliber | 230mm |
| Hug floodgate belt width | 70mm |
| 4.Mud pump | |
| Type | Horizontal single urn twin-action |
| Rate of flow | 180L/min |
| MAX. pressure | 1.5MPa |
| Working pressure | 0.7MPa |
| Diameter of water inlet tube | 50mm |
| Diameter of water outlet tube | 45mm |
| 5.Power | |
| Diesel engine | 22HP, 2200r/min |
Remarks: Dear friend, thank you for your time! We are professional manufactuer of drilling rig for 0-100m, 150m, 200m, 250m, 300m, 400m, etc. Water wells. Besides, we have a top expert team for offering before&after sale technical support. So please feel free to inform me your drilling depth (m) and caliber (mm), our engineers will design a complete perfect configuration list for you!
